Angled Fixed Ball Point D25mm With M12 Female Thread - 756200

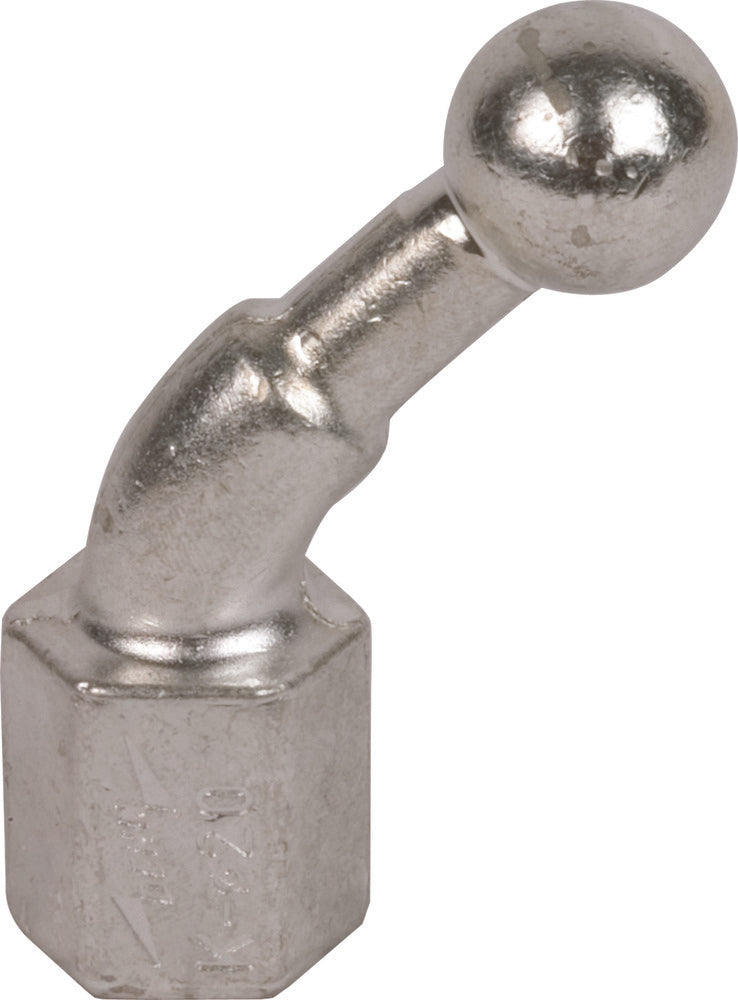

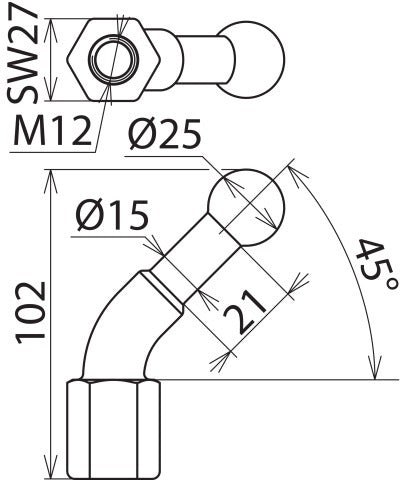

This is a 45° angled fixed ball point with a built-in female thread that serves as line and earth connection point, compliant with EN/IEC 61230 (DIN VDE 0683-100) for the conductor and earth-termination system. This earth/short-circuit device is able to handle a maximum short-circuit current of 26.5kA. With its angled structure, internal thread, and connection for earth and ball points of 25mm, it provides high mechanical strength. It can accommodate copper wire of maximum cross-sectional diameter 95mm². It's designed to secure cable lugs or connect busbars as per DIN 43673-1. The diameter of the fixed point is 25mm.
- Regular price
- £51.88
Description
This is a 45° angled fixed ball point with a built-in female thread that serves as line and earth connection point, compliant with EN/IEC 61230 (DIN VDE 0683-100) for the conductor and earth-termination system. This earth/short-circuit device is able to handle a maximum short-circuit current of 26.5kA. With its angled structure, internal thread, and connection for earth and ball points of 25mm, it provides high mechanical strength. It can accommodate copper wire of maximum cross-sectional diameter 95mm². It's designed to secure cable lugs or connect busbars as per DIN 43673-1. The diameter of the fixed point is 25mm.
