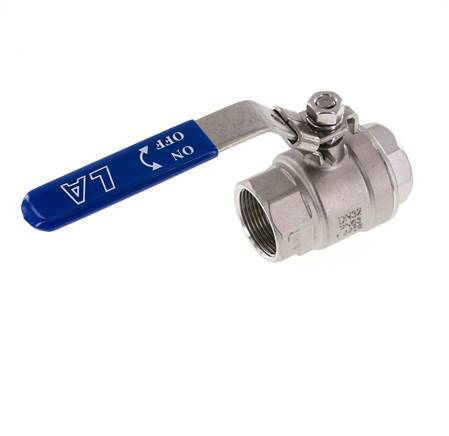

G1-1/4'' 2-Way Ball Valve Stainless Steel PTFE 63 bar - BL2SM

G1-1/4'' 2-Way Ball Valve Stainless Steel PTFE 63 bar - BL2SM
G1-1/4'' 2-Way Ball Valve Stainless Steel PTFE 63 bar - BL2SM
G1-1/4'' 2-Way Ball Valve Stainless Steel PTFE 63 bar - BL2SM
G1-1/4'' 2-Way Ball Valve Stainless Steel PTFE 63 bar - BL2SM
G1-1/4'' 2-Way Ball Valve Stainless Steel PTFE 63 bar - BL2SM
G1-1/4'' 2-Way Ball Valve Stainless Steel PTFE 63 bar - BL2SM
G1-1/4'' 2-Way Ball Valve Stainless Steel PTFE 63 bar - BL2SM
G1-1/4'' 2-Way Ball Valve Stainless Steel PTFE 63 bar - BL2SM
Reference: BL2SM-114
Brand: Tameson

2-Way compact PN 63 ball valve with G 1-1/4 inch ports and a handle for on/off flow control. The valve bore is 32 mm and the maximum pressure is 63 bar or 914 psi. Suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media. Suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Stainless steel housing and ball and PTFE sealings.

View all
Regular price
£44.92
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 38 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This 2-way compact PN 63 ball valve of stainless steel with a valve bore of 32 mm is designed for on/off flow control.

The valve has G 1-1/4 inch ports. This is BSPP (British Standard Pipe Parallel). With our range of 1-1/4 inch fittings, the valve can be installed in any pipe.

The housing and the ball of the valve are made of stainless steel and the sealings are made of PTFE. Suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media up to a maximum operating pressure of 63 bar or 914 psi. The valve is suitable for temperatures from -20 to 200 °C (-4 to 392 °F).

Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If it is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.

Pros:

  • Suitable for aggressive media thanks to the high quality materials
  • Wide operating temperature range -20 to 200 °C (-4 to 392 °F) thanks to the high quality materials

Cons:

  • Not suitable for vacuum

BL2SM series

View our 2-way compact PN 63 female threaded stainless steel ball valve BL2SM series. The ports range from 1/4 inch to 3 inch. The housing and the ball material is stainless steel and the sealings are PTFE. The valves are suitable for a wide variety media, such as water, steam, oil, compressed air, fuels, solvents, aggressive media up to a maximum operating pressure of 63 bar or 914 psi. The valves can be used within a temperature range from -20 to 200 °C (-4 to 392 °F). The whole series is handle operated and provides reliability and a long service life.
