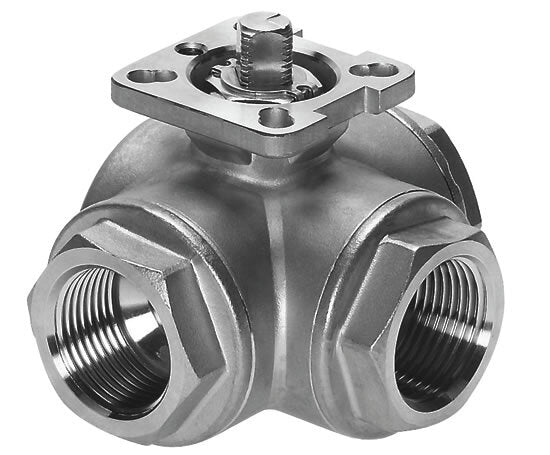

G3/8'' L-port 3-Way Stainless Steel Ball Valve ISO-Top 63bar - BL3SA
3-Way L-port stainless steel ball valve with G 3/8 inch threads. The valve bore diameter is 12 mm and the maximum pressure is 63 bar or 914 psi. The valve is suitable for water, steam, oil, compressed air, fuels, solvents, aggressive media, and vacuum (max. -0.9 bar or -13 psi). The temperature range is from -20 to 180 °C (-4 to 356 °F). Stainless steel housing, stainless steel ball and PTFE/FKM sealings. Pressure inlet is possible on all three ports. Suitable for electrical and pneumatic control, (ISO 5211 F03/F04). Not equipped with a handle.
- Regular price
- £112.25
Description
This 3-way L-port stainless steel ball valve with a valve bore diameter of 12 mm is designed for flow direction control. The L-port valve has a 90 degrees hole inside of the ball. An example of an application is to switch between two tanks to one outlet.
The valve has G 3/8 inch ports. This is BSPP (British Standard Pipe Parallel). With our wide range of 3/8 inch fittings you can connect it to any piping system.The housing of the valve is made of stainless steel, the ball is made of stainless steel and the sealings are made of PTFE/FKM. The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media up to a maximum pressure of 63 bar or 914 psi. The valve is also suitable for vacuum (max. -0.9 bar or -13 psi). The valve can be used within a temperature range from -20 to 180 °C (-4 to 356 °F). Pressure inlet is possible on all three ports.The ports overlap during the ball rotation. The valve has a flange according to the ISO 5211 F03/F04 norm. This makes the valve suitable for electrical or pneumatic actuation. The valve is not equipped with a handle for manual control.Pros:
- Suitable for aggressive media thanks to the qualitative stainless steel material
- Wide operating temperature range (-20 to 180 °C -4 to 356 °F)
- Suitable for electrical or pneumatic actuation thanks to the ISO-top F03/F04 flange
- The L-port design allows to direct flow from one of two inlets to one outlet (or vice versa)
- Suitable for vacuum
- Pressure inlet on all three ports
Cons:
- Not equipped with a handle for manual control
BL3SA series
View our 3-way stainless steel ball valve BL3SA series. The ports range from 1/4 inch to 4 inch. The housing and the ball material is stainless steel and the sealings are /FKM. The valve is suited for an operating pressure of up to 63 bar or 914 psi. The valves are suitable for water, steam, oil, compressed air, fuels, solvents, aggressive media and also vacuum (max. -0.9 bar or -13 psi). The valves can be used within a temperature range from -20 to 180 °C (-4 to 356 °F). The whole series is suitable for electrical and pneumatic actuation thanks to ISO 5211 flange and not equipped with handles for manual control. The pressure inlet can be on all three ports. The ball valves in the BL3SA-series of Tameson are characterized by a long life.
