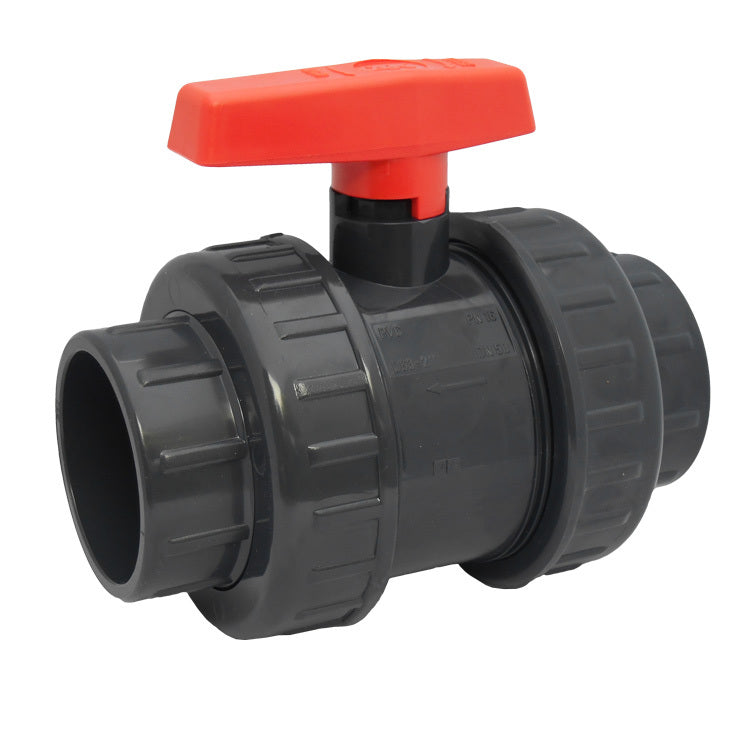

BMPM - 2-Way PVC Ball Valve True Union Socket 25mm
Notice: This product is discontinued and replaced by V2RWK
2-Way ball valve with 25mm solvent sockets and lever for open/close control. 20mm nominal diameter and max pressure 16 bar. Temperature range from -10 to 60°C. PVC housing with PVC ball, PE seat rings and EPDM O-rings.
Notice: This product is discontinued and replaced by V2RWK
- Regular price
- £10.48
Description
This 2-way ball valve from Tameson with a nominal diameter of 20 mm is designed for on/off flow control.. The valve has 25 mm solvent sockets on both sides. Thanks to the true union design, the valve can be easily installed or removed.
The housing of the valve is made of plastic, the ball is made of and the seals are made of EPDM. The valve is suitable for various media and is often used in applications such as irrigation, swimming pools, water supply and drainage. The valve can be used up to a max pressure of 16 bar (232 psi) and within a temperature range between -10 and 60 °C (14 and 140 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If the handle is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.
Pros:
- No extra friction losses thanks to the full bore design
- Suitable for contaminated water or corrosive media, such as chloride solutions (seawater or swimming pools)
Cons:
- Suitable only for manual actuation
BMP series
Our 2-way plastic ball valve selection ranges from 25 mm to 63 mm. Thanks to the true union design, the valve can be easily installed or removed. The valves are made of plastic, the ball is made of and the seals are made of EPDM. Their operating pressure is up to 16 bar (232 psi). The valve is suitable for various media and is often used in applications such as irrigation, swimming pools, water supply and drainage. PVC is resistant to a wide variety of chemicals, acids and bases and can be used for various media, including air, water, waste water and chlorinated water. The operating temperature range is from -10 to 60 °C (14 to 140 °F). The valves are handle operated. The ball valves in the BMP series of Tameson are characterized by a long life.
