Carlo Gavazzi EO Light Sensor Energetic - EO1804PPAS1

Carlo Gavazzi EO Light Sensor Energetic - EO1804PPAS1
Carlo Gavazzi EO Light Sensor Energetic - EO1804PPAS1

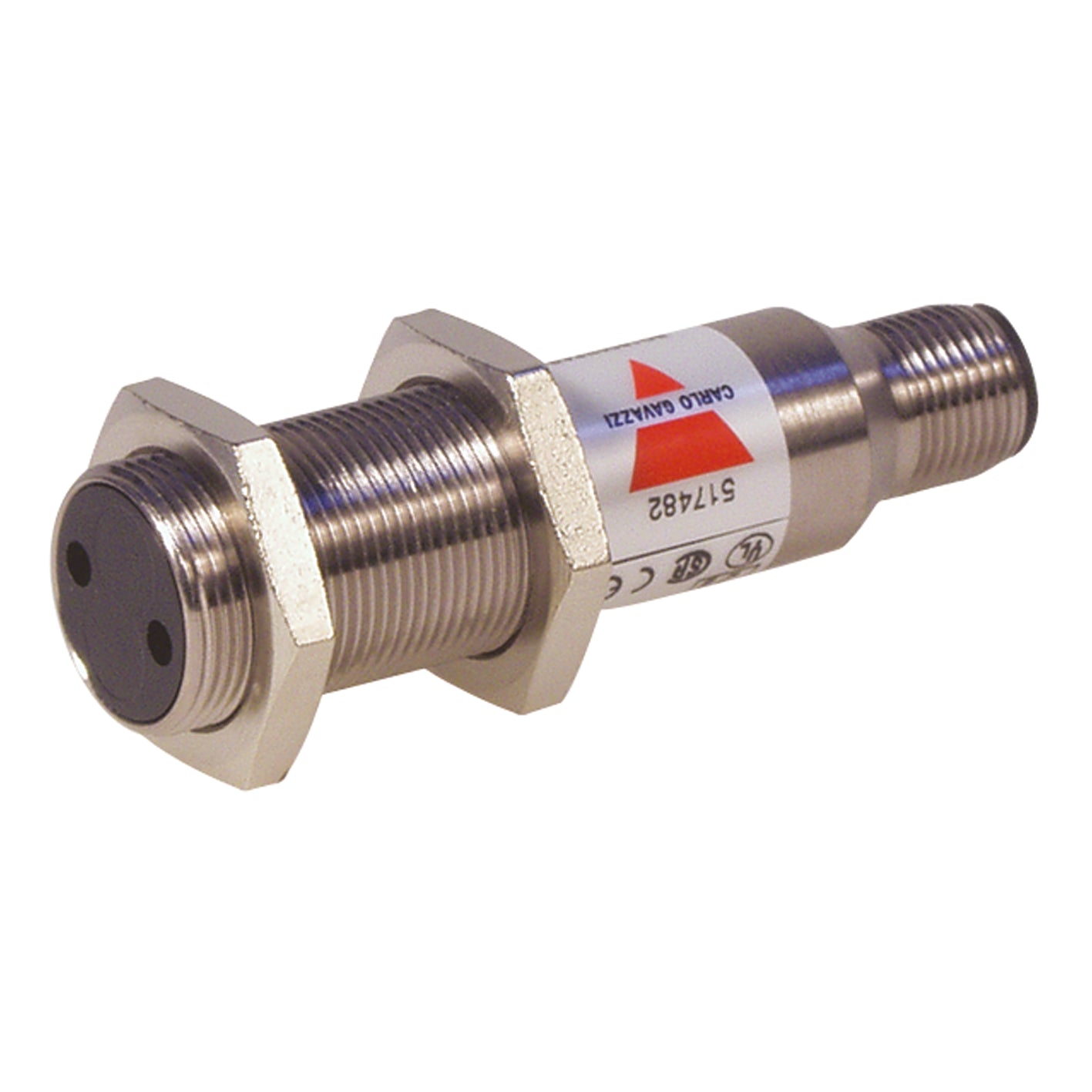

Image may vary slightly
See specifications for accurate information.
Reference: E2B4K
Brand: Carlo Gavazzi
Mfr. Part: EO1804PPAS1

Type eo1804 diffuse-reflective photoelectric sensor. The eo1804 type diffuse reflective photoelectric sensors have been designed for heavy duty applications and come in an ip67 rated, short m18 metal housing. Range is easily adjusted with a 270° single turn potentiometer. They are intended for applications where a basic sensor provides adequate performance. The output is a 4-wire complementary (no and nc) output in npn (current sinking) or pnp (current souring). Range: 400 mm adjustable. Modulated, infrared light. Supply voltage: 10 to 40 v dc. Output: 200 ma npn or pnp.

View all
Note: product cannot be returned
£86.28
excl VAT
In stock +25 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 25 days. Up to 39 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 27 - 29 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Type eo1804 diffuse-reflective photoelectric sensor. The eo1804 type diffuse reflective photoelectric sensors have been designed for heavy duty applications and come in an ip67 rated, short m18 metal housing. Range is easily adjusted with a 270° single turn potentiometer. They are intended for applications where a basic sensor provides adequate performance. The output is a 4-wire complementary (no and nc) output in npn (current sinking) or pnp (current souring). Range: 400 mm adjustable. Modulated, infrared light. Supply voltage: 10 to 40 v dc. Output: 200 ma npn or pnp.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Signal output
Type of switching output.
PNP/PNP
Pre failure notice
No
Electrical connection
Type of electric connection.
Connector M12
With time function
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Metal
Max. switching distance (mm)
400
Max. output current (mA)
200
Rated control supply voltage Us at DC (V)
10 V to 40 V
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Max. current (mA)
The maximum current output of the protected output channel.
200
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Manual adjustment
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
Type of switch function
Change-over contact (NO/NC)
Sensing mode
Light-/dark switching
Material of optical surface
Plastic
Response time (ms)
3.2
Switching frequency (Hz)
120
Wavelength of the sensor (nm)
880
Type of light
Infrared light
Light dot (mm²)
3600
AWG-number
22
With restart blockage
No
Voltage-type
DC
Ambient temperature (°C)
-20 °C to 60 °C
Length of sensor (mm)
67
