CYL-50mm Clevis Female Steel ISO-15552 MCQV/MCQI2

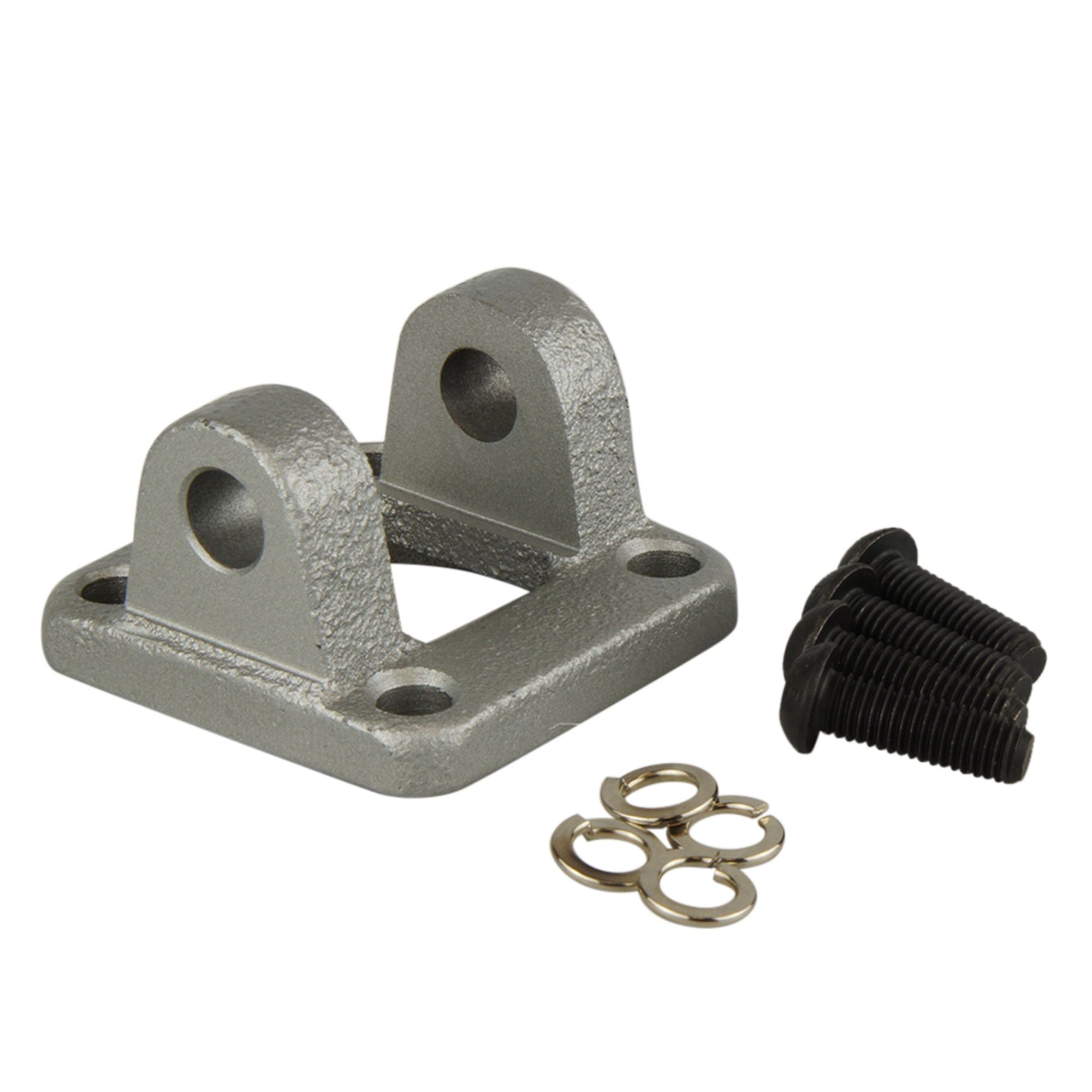

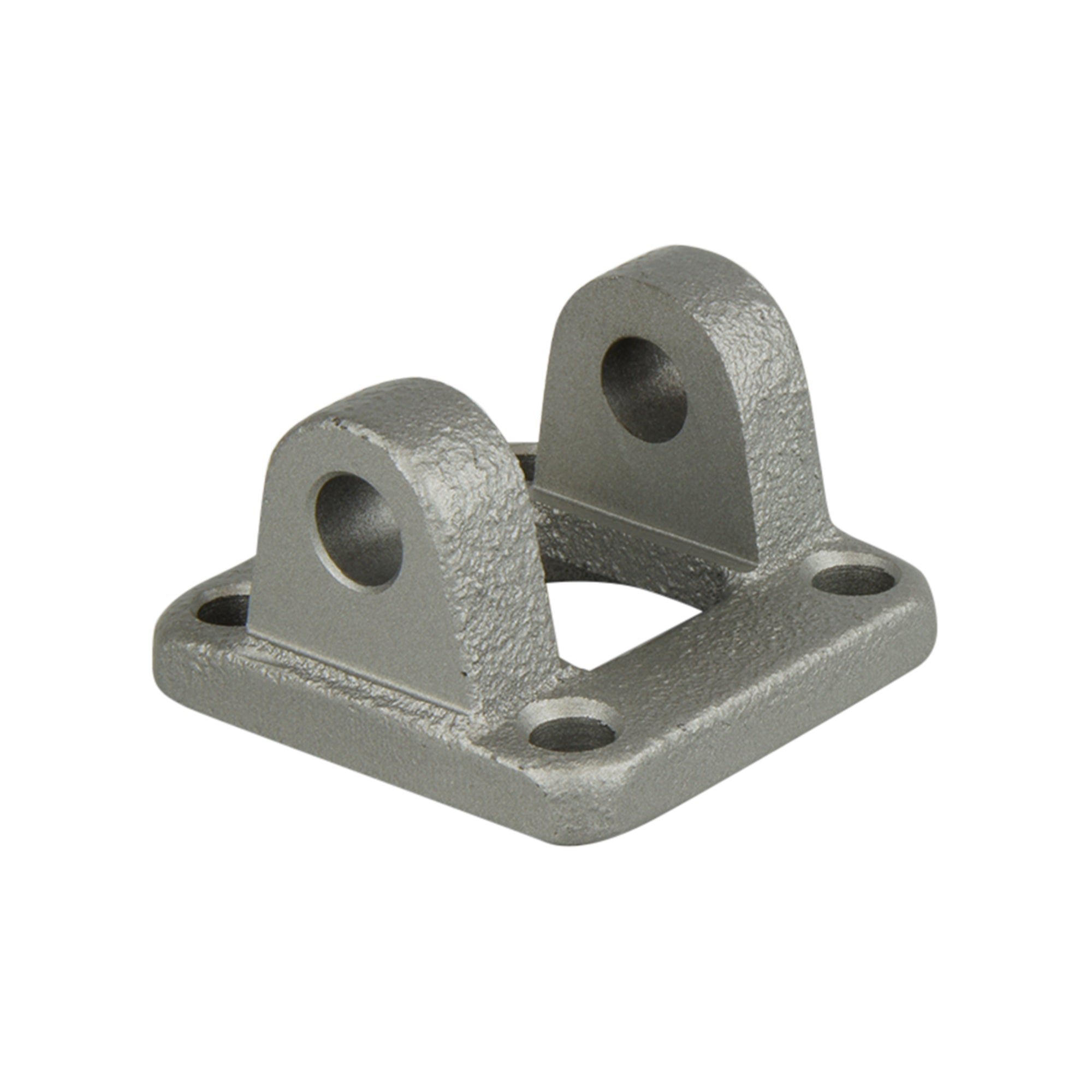

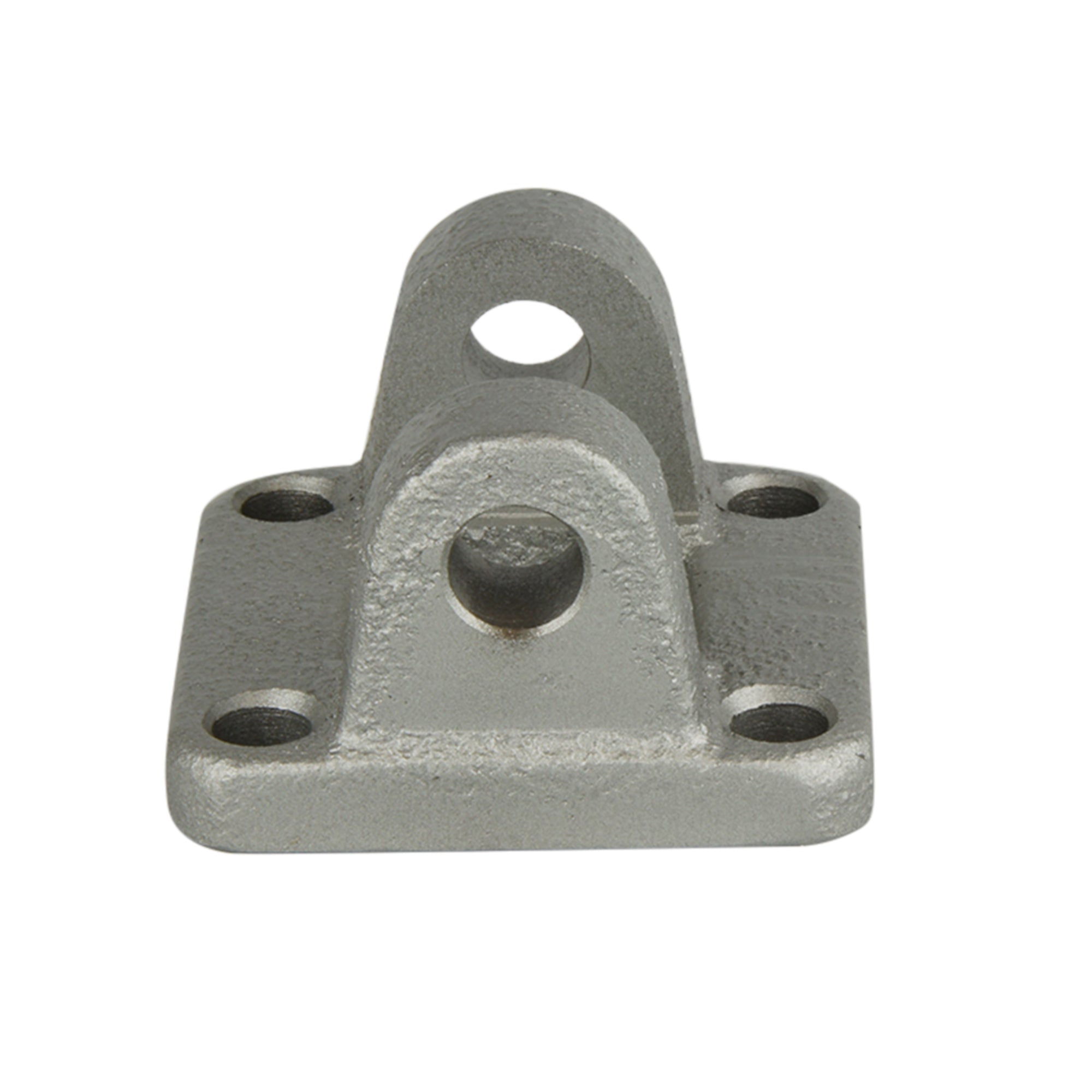

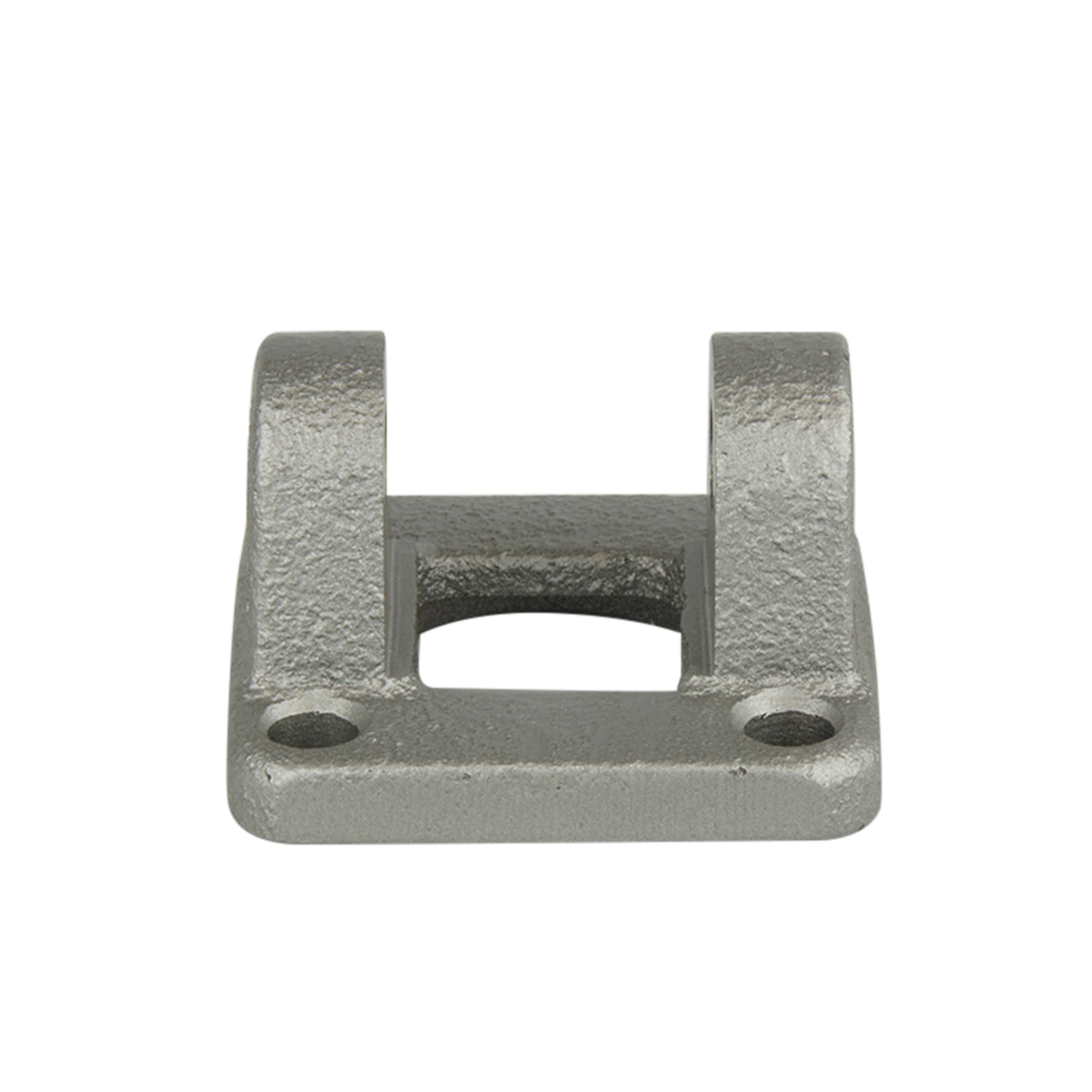

This steel male cap-end clevis mounting accessory can be mounted on ISO 15552 & 21287 cylinders with 50 mm diameter using the 4 bolts (included). Connect to a counter element (such as type CA). Use a Ø12 mm pin for the connection (available separately). Can be used to mount directly onto the cylinder or as counter hinge.
- Regular price
- £13.73
Description
This steel male cap-end clevis mounting accessory can be mounted on ISO 15552 & 21287 cylinders with 50 mm diameter using the 4 bolts (included). Connect to a counter element (such as type CA). Use a Ø12 mm pin for the connection (available separately). Can be used to mount directly onto the cylinder or as counter hinge.
Pros:
- Thanks to the ISO 15552 & 21287 standard, this mounting accessory is worldwide interchangeable with other major brands
- Suitable for ISO 15552 & 21287 cylinders with a 50 mm diameter
- Very easy to assemble using the four bolts (included)
Cons:
- Requires a 12 mm pin to connect to additional components (order separately)
CB series
The Mindman MCQV & MCQI2 mounting accessories for the cap-end consists of flanges, foot mounts, and clevises. This range allows for fixed mounting (flange and foot mounting) and the ability to do fixed pivot mounting (female, male, or male angled clevis). They are easily attached to ISO 15552 or 21287 (32-100mm) with four bolts. The clevises are always mounted to the back of the cylinder, the foot mounts should be mounted to both the front and the back (same component) and the flange can be back, front, or both. The necessary pins for the clevises are also available within this series.
