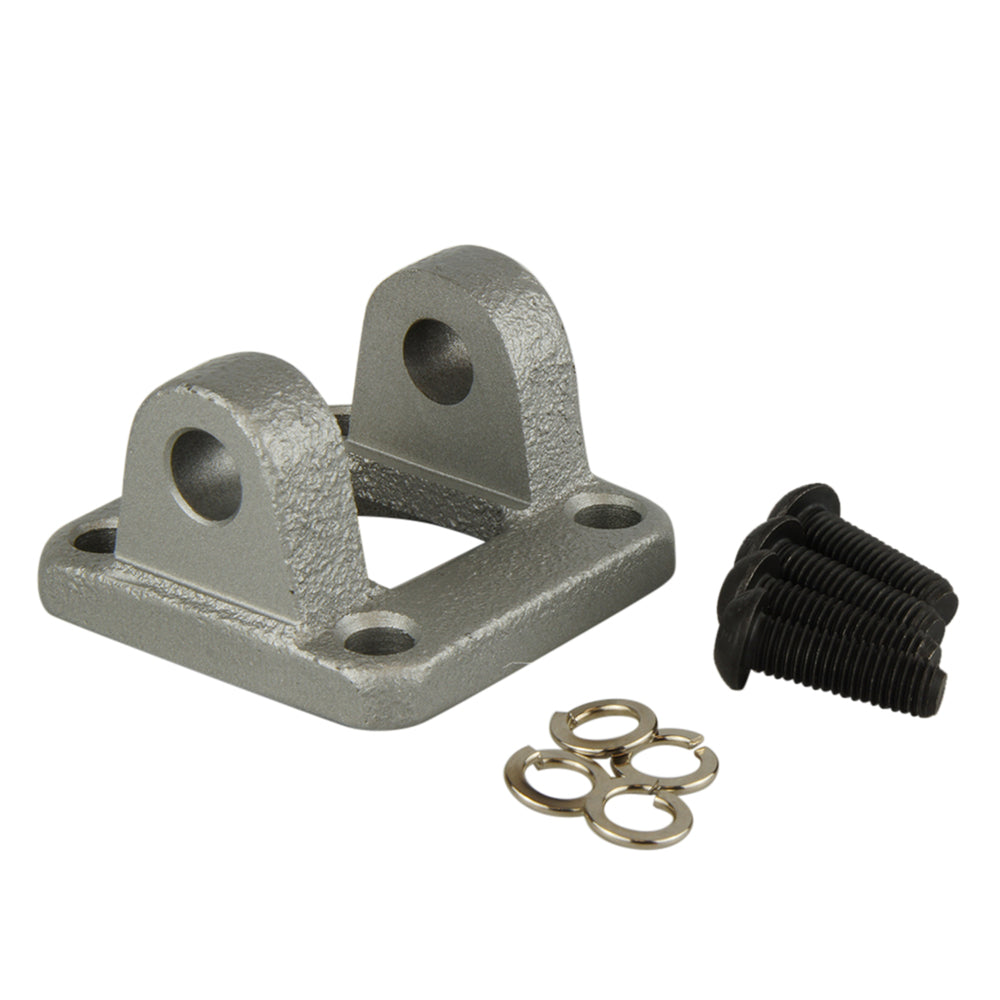

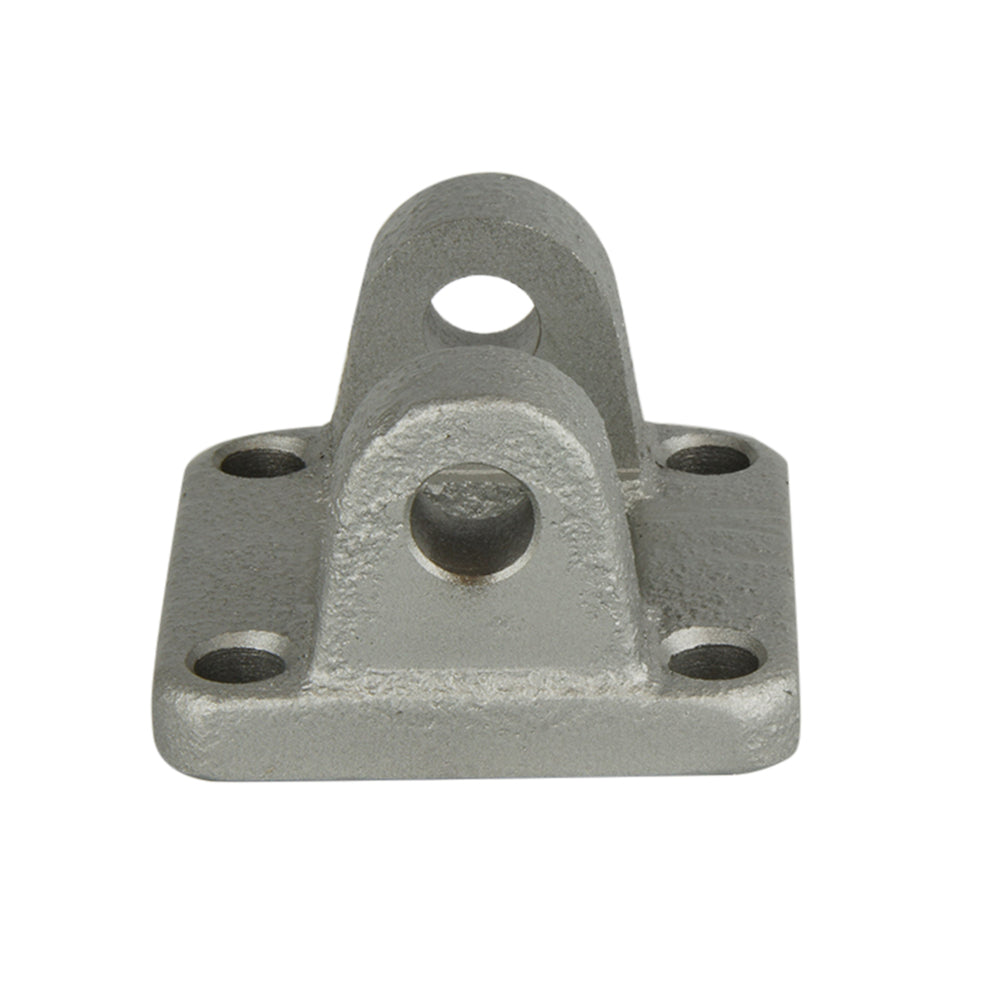

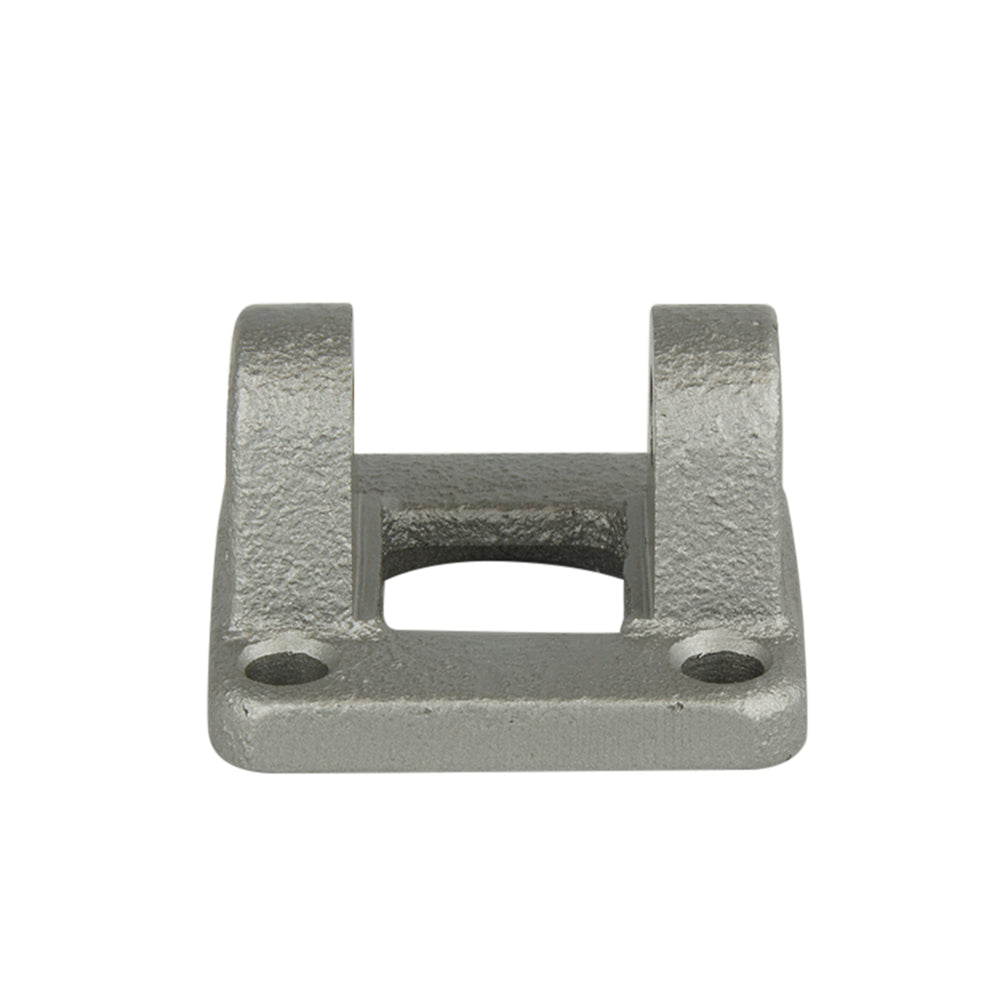

CYL-80mm Clevis Female Steel ISO-15552 MCQV/MCQI2

CYL-80mm Clevis Female Steel ISO-15552 MCQV/MCQI2
CYL-80mm Clevis Female Steel ISO-15552 MCQV/MCQI2
CYL-80mm Clevis Female Steel ISO-15552 MCQV/MCQI2
CYL-80mm Clevis Female Steel ISO-15552 MCQV/MCQI2
Image may vary slightly
See specifications for accurate information.
Reference: CB-MCQV-80
Brand: Mindman

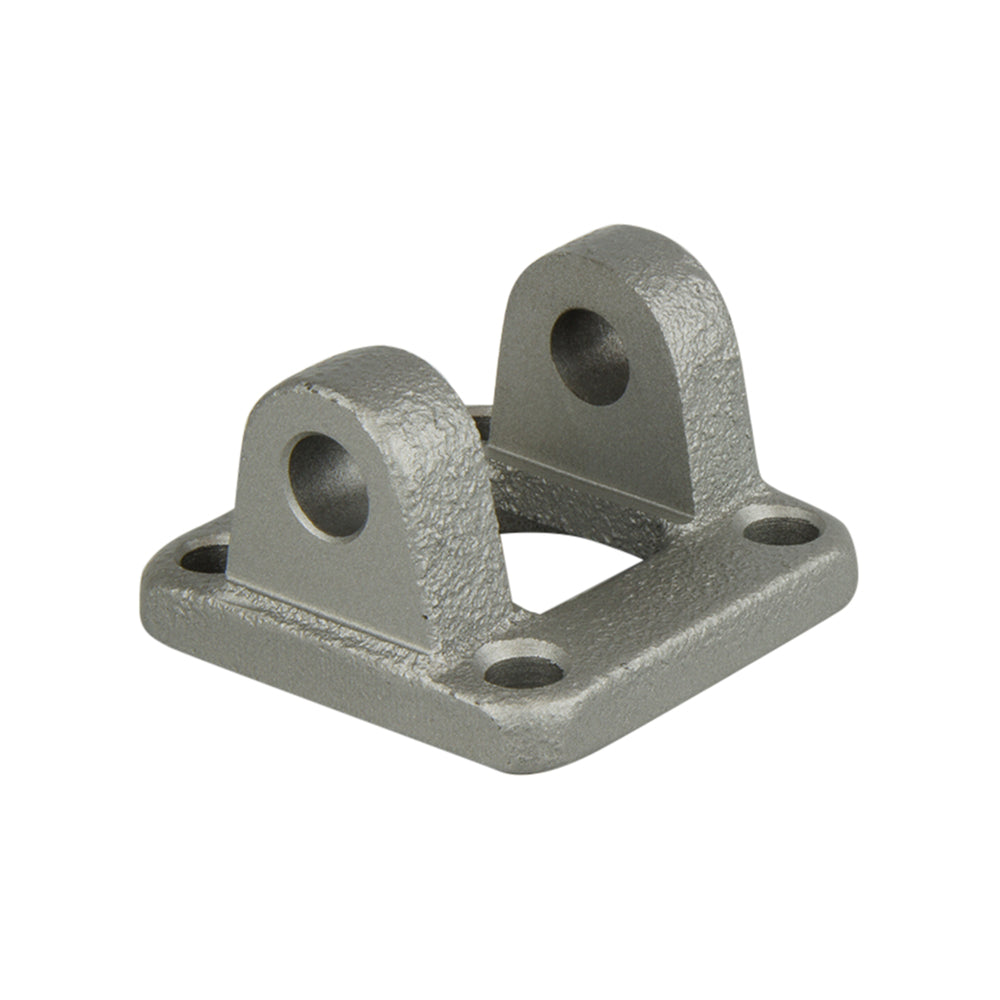

This steel male cap-end clevis mounting accessory can be mounted on ISO 15552 & 21287 cylinders with 80 mm diameter using the 4 bolts (included). Connect to a counter element (such as type CA). Use a Ø16 mm pin for the connection (available separately). Can be used to mount directly onto the cylinder or as counter hinge.

View all
Regular price
£24.38
excl VAT

In stock +5 days On request On request
For a higher quantity than 0 of product CB-MCQV-80, the lead time of the order will increase by 5 days. The item is not online available in your chosen quantity, there are 0 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 7 - 9 business days

Description
Specifications
Downloads
Related products

This steel male cap-end clevis mounting accessory can be mounted on ISO 15552 & 21287 cylinders with 80 mm diameter using the 4 bolts (included). Connect to a counter element (such as type CA). Use a Ø16 mm pin for the connection (available separately). Can be used to mount directly onto the cylinder or as counter hinge.

Pros:

  • Thanks to the ISO 15552 & 21287 standard, this mounting accessory is worldwide interchangeable with other major brands
  • Suitable for ISO 15552 & 21287 cylinders with a 80 mm diameter
  • Very easy to assemble using the four bolts (included)

Cons:

  • Requires a 16 mm pin to connect to additional components (order separately)

CB series

The Mindman MCQV & MCQI2 mounting accessories for the cap-end consists of flanges, foot mounts, and clevises. This range allows for fixed mounting (flange and foot mounting) and the ability to do fixed pivot mounting (female, male, or male angled clevis). They are easily attached to ISO 15552 or 21287 (32-100mm) with four bolts. The clevises are always mounted to the back of the cylinder, the foot mounts should be mounted to both the front and the back (same component) and the flange can be back, front, or both. The necessary pins for the clevises are also available within this series.
