Reference: CD-012BABF-120AC
Brand: JP Fluid Control

Automatic condensate drain with 1/2" threads, brass body and analog timer, for draining condensate in compressed air systems. The timer can be set with an interval time between 0.5 and 45 minutes. The discharge time is adjustable between 0.5 and 10 seconds. Suitable for operating pressures between 0 and 10 bar, the voltage is 120V AC.

View all
Regular price
£81.88
excl VAT

In stock +0 days On request On request
0 are currently in your cart. For orders exceeding 12, expect an increased lead time of 0 days. Up to 112 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 2 - 4 business days

Description
Specifications
Downloads
Related products

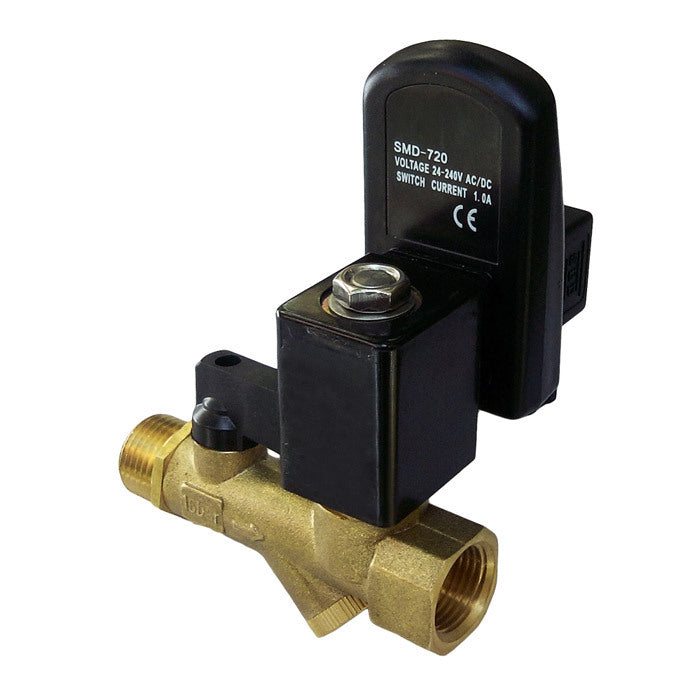

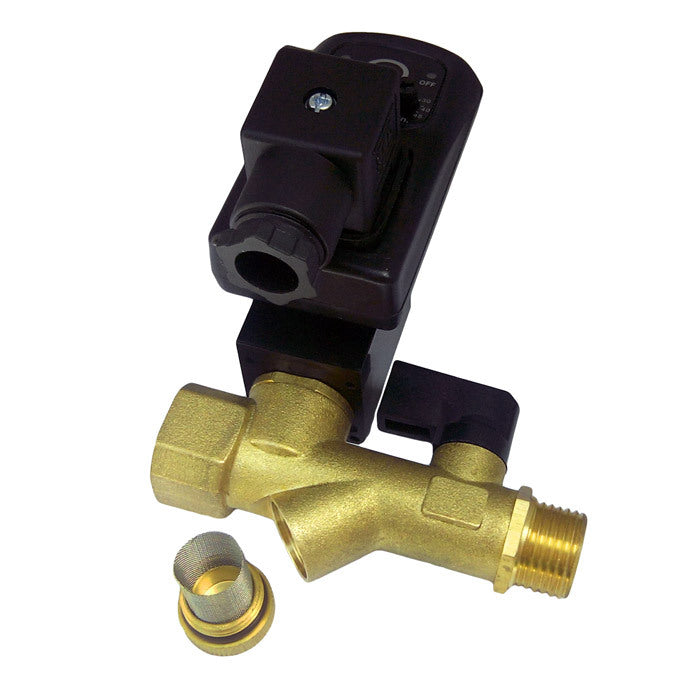

This automatic condensate drain solenoid valve is an effective solution for reliable and regular discharge of condensate of compressors, pressure vessels, dryers, air filters and other compressed air equipment. At fixed time intervals, the valve opens to drain the condensate. The condensate drain consists of a directly controlled solenoid valve with FKM seal in combination with an electronic timer.

The brass valve has two 1/2 inch ports with inner thread and is suitable for operating pressures between 0 and 10 bar. The power supply is 120V AC.

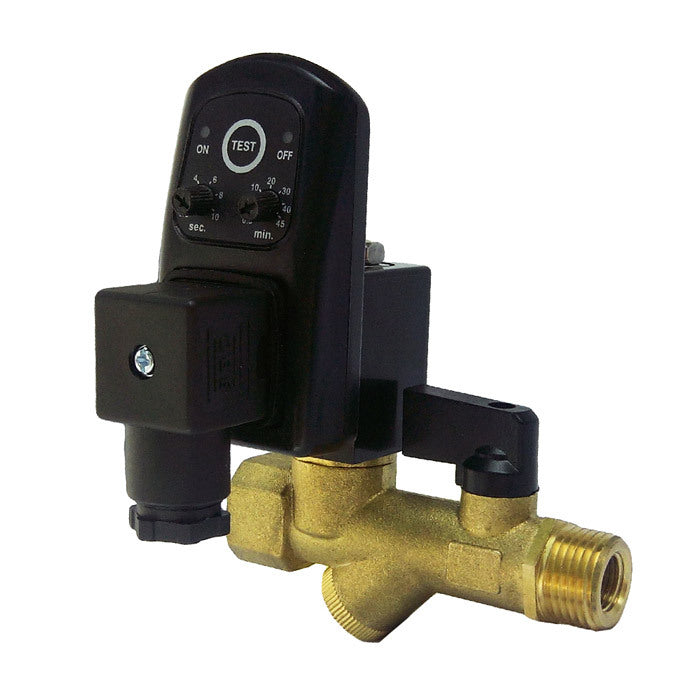

The timer switch can be set with two rotary knobs. The interval time is set between 0 and 45 minutes and the opening time between 0.5 and 10 seconds. The valve position is indicated by a LED indicator. With a test button, the valve can be opened manually. The automatic condensate drain has an IP65 protection rating and is suitable for temperatures between -10°C and +50°C.

Install the valve at the lowest point in the compressed air system where the condensate can be drained. After installation, the interval time and drain time can be set and the system is immediately ready for use.


Note: Delivered in separate parts.
