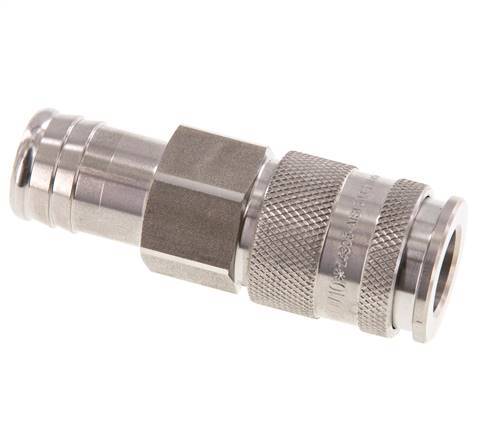

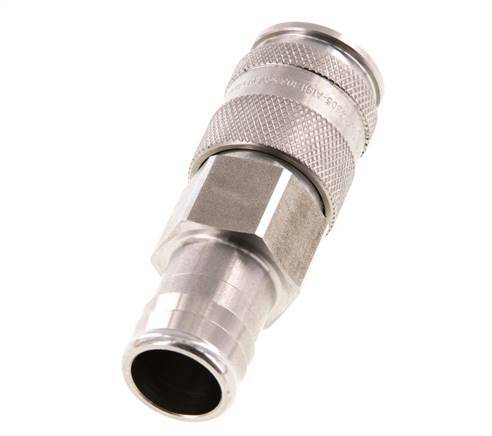

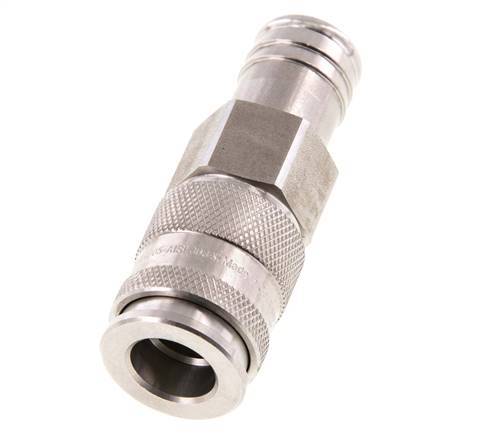

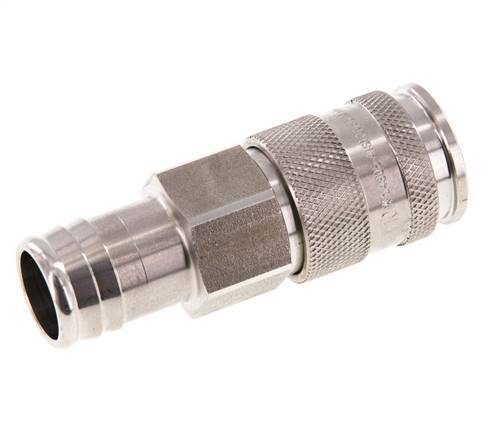

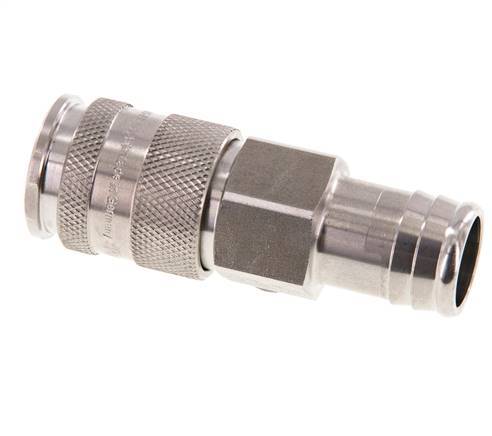

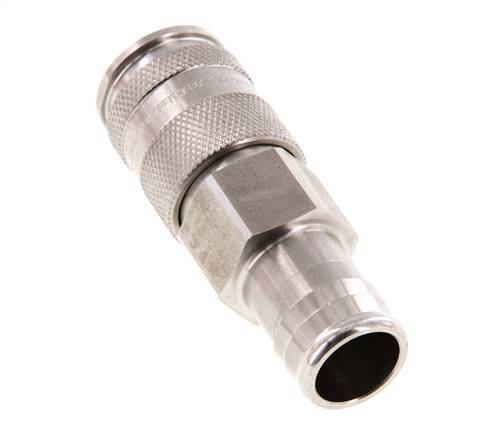

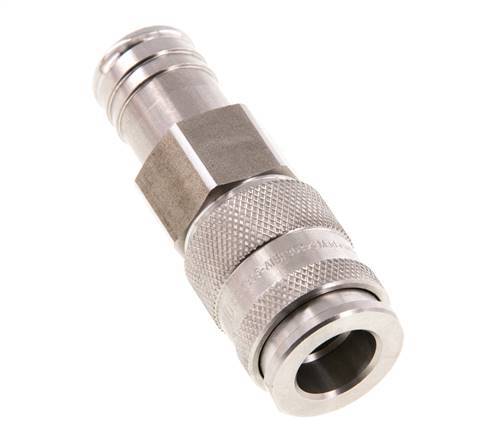

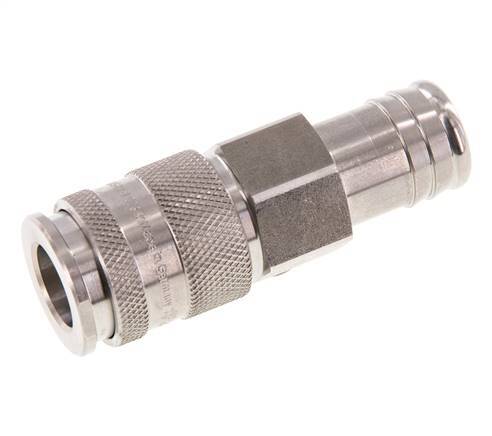

Stainless steel DN 10 Air Coupling Socket 19 mm Hose Pillar

Stainless steel DN 10 Air Coupling Socket 19 mm Hose Pillar
Reference: CLS10-H-S-P-19
Brand: Parker

Stainless steel DN 10 air coupling socket with a 19 mm hose pillar connection. The operating pressure range is 0 (suitable for coarse vacuums) to 35 bar. The socket is suitable for temperatures between -15 to 200°C. The flow rate is 2600 l/min. The seal material is FPM/FKM.

View all
Regular price
£406.34
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads

Stainless steel DN 10 air coupling socket with a 19 mm hose pillar connection. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.

Easily mount a hose over the 19 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. This coupling is suitable for vacuum applications. The operating pressure range is 0 to 35 bar. The socket is suitable for temperatures between -15 to 200°C. The rated flow rate is 2600 l/min. The seal material is FPM/FKM. The sleeve material is stainless steel. The housing material is stainless steel 303 (1.4305).

This product is compatible with: Rectus (27, 41, 1700, 1727), TEMA (1700), CEJN (410). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.

Pros:

  • Easily mount a hose over the 19 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose.
  • Compatible with a wide range of air couplings with the same standard profile design.
  • The large 10 mm diameter allows for a large flow rate and low pressure drop.
  • It can be used for vacuum applications.

CLS10-H series

Our air coupler offering ranges from DN 2.7 - 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.
