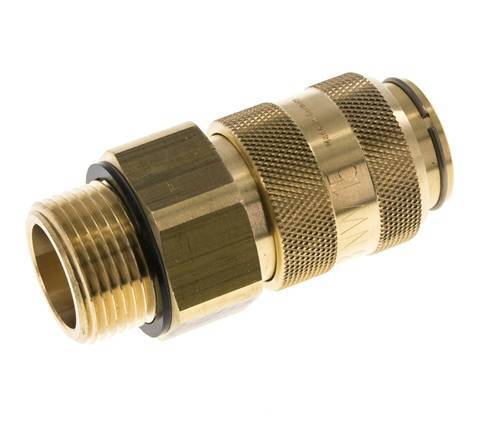

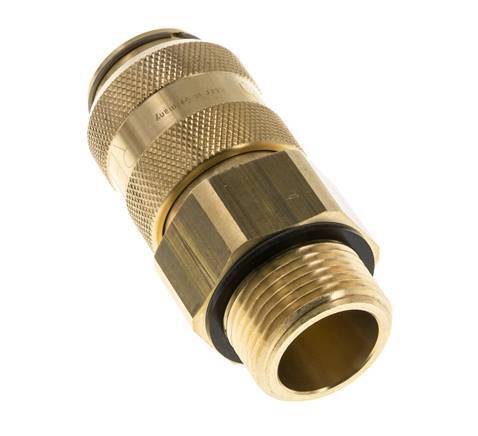

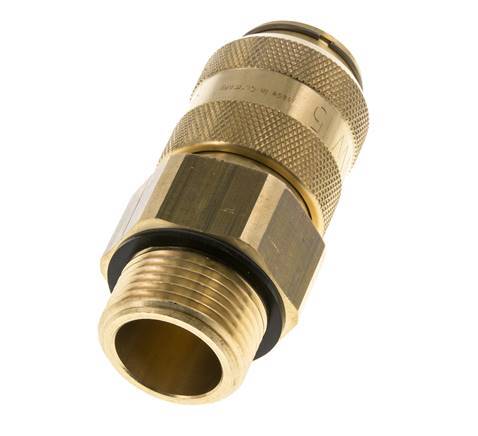

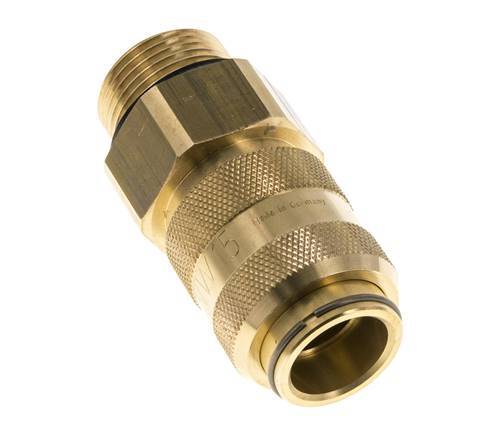

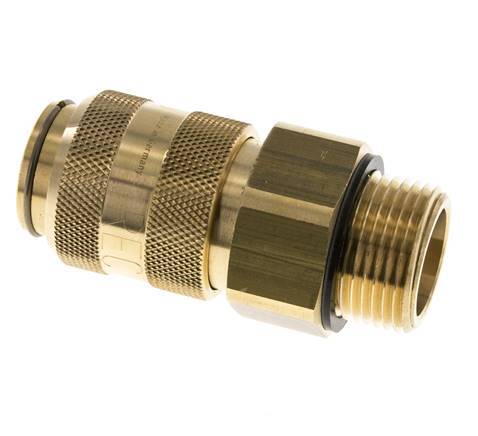

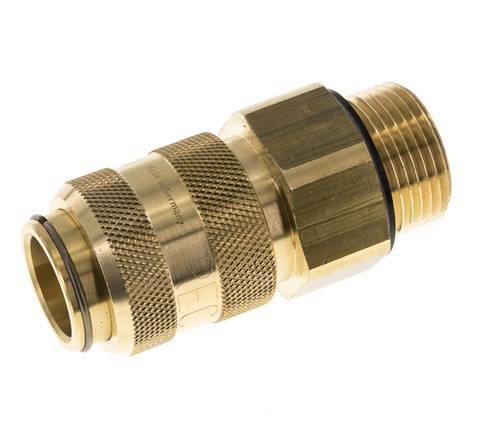

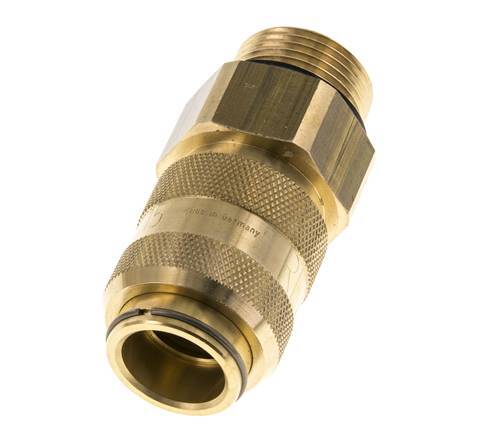

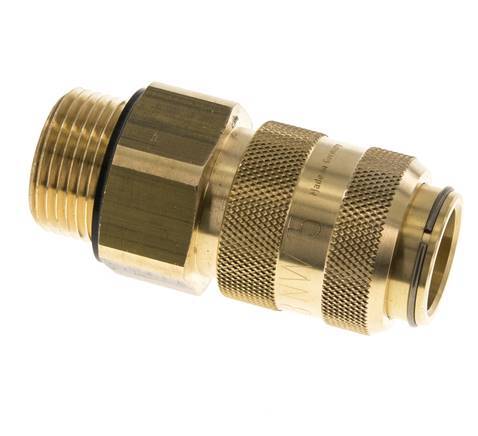

Brass DN 15 Air Coupling Socket G 1 inch Male Double Shut-Off
Brass DN 15 air coupling socket with G 1 inch male threads. The socket has a double sided shut-off design. The operating pressure range is 0 (suitable for coarse vacuums) to 35 bar. The socket is suitable for temperatures between -20 to 100°C. The flow rate is 5000 l/min. The seal material is NBR (nitrile rubber).
- Regular price
- £175.20
Description
Brass DN 15 air coupling socket with G 1 inch male threads. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.
The G 1 inch male threads allow for it to be threaded onto a matching female threaded part. This coupling is suitable for vacuum applications. The socket has a double sided shut-off design. They can be used with normal plugs and with 'double-sided shut off' plugs. When double-sided shut off plugs are disconnected, they shut off flow in both directions. The operating pressure range is 0 to 35 bar. The socket is suitable for temperatures between -20 to 100°C. The rated flow rate is 5000 l/min. The seal material is NBR (nitrile rubber).
This product is compatible with: Rectus (38), Hansen (6000-3/4"). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.
Pros:
- The G 1 inch male threads allow for it to be threaded onto a matching female threaded part.
- Compatible with a wide range of air couplings with the same standard profile design.
- The large 15 mm diameter allows for a large flow rate and low pressure drop.
- It can be used for vacuum applications.
- The socket has a double sided shut-off design, which allows for both the system up and down stream to remain pressurized when disconnected.
CLS15-M series
Our air coupler offering ranges from DN 2.7 - 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.
