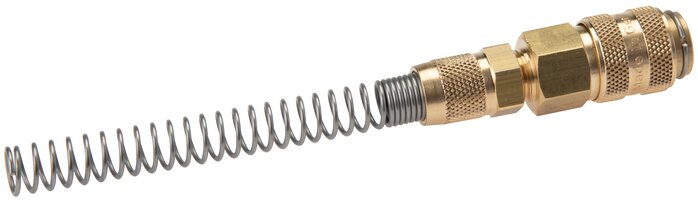

Brass DN 5 Red Air Coupling Socket 4x6 mm Union Nut Bend-Protect Rotatable
Brass DN 5 air coupling socket with a union nut for 4x6 mm hoses. It has bend protection. The operating pressure range is -0.95 (suitable for vacuums) to 35 bar. The socket is suitable for temperatures between -20 to 100°C. The flow rate is 560 l/min. The seal material is NBR (nitrile rubber). It has a red color.
- Regular price
- £14.61
Description
Brass DN 5 air coupling socket with a union nut for 4x6 mm hoses. It has bend protection. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.
The socket is rotatable. This coupling is suitable for vacuum applications. The socket features a bend protection spring for extra protection. The operating pressure range is -0.95 to 35 bar. The socket is suitable for temperatures between -20 to 100°C. The rated flow rate is 560 l/min. The seal material is NBR (nitrile rubber). It has a red band for easy visual identification. Each color has a different shape (octagonal, triangle, ..). Colored plugs can only be connected to sockets with the same color, but they are also compatible to non-colored sockets. The color system prevents accidental interchange of different medias or pressures.
This product is compatible with: Rectus (21, 90), Camozzi (DN 5), EWO (DN 5), KANI (DN 5), Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.
Pros:
- Compatible with a wide range of air couplings with the same standard profile design.
- It can be used for vacuum applications.
- The socket features a bend protection spring for extra protection.
- The socket is rotatable.
CLS5-NP series
Our air coupler offering ranges from DN 2.7 - 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.
