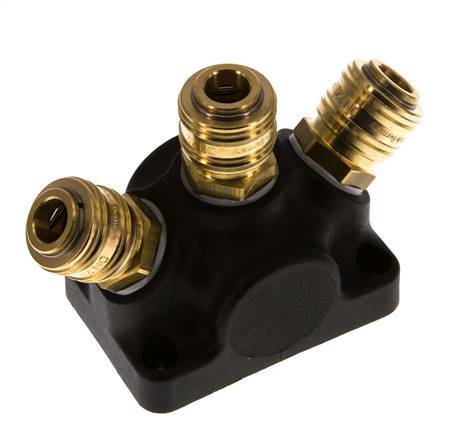

Brass/plastic DN 7.2 (Euro) Air Coupling Socket G 3/4 inch Female Wall-Mount 3-way
Brass/plastic DN 7.2 (Euro) air coupling socket with G 3/4 inch female threads. Wall mount design. It is a 3-way distribution coupling. The operating pressure range is 0 (suitable for coarse vacuums) to 15 bar. The socket is suitable for temperatures between -10 to 50°C. The seal material is NBR (nitrile rubber).
- Regular price
- £68.07
Description
Brass/plastic DN 7.2 (Euro) air coupling socket with G 3/4 inch female threads. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.
It is a 3-way distribution coupling. The G 3/4 inch female threads allow for it to be threaded onto a matching male threaded part. This coupling is suitable for vacuum applications. The operating pressure range is 0 to 15 bar. The socket is suitable for temperatures between -10 to 50°C. The seal material is NBR (nitrile rubber). The sleeve material is brass. This DN 7.2 mm has a Euro profile and is popular within Europe.
This product is compatible with: Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4), IMI-Norgren (238), Aventics (CP1-NW 7 / 7,8). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.
Pros:
- The G 3/4 inch female threads allow for it to be threaded onto a matching male threaded part.
- Compatible with a wide range of air couplings with the same standard profile design.
- It can be used for vacuum applications.
- These junctions have one or more DN 7.2 air coupling sockets, to connect multiple hoses to the same air supply. These coupling can be mounted to a wall and have one or more female threaded input ports.
- These wall mounted junctions have 3 sockets.
CLS7-F-PL-AJ series
Our air coupler offering ranges from DN 2.7 - 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.
