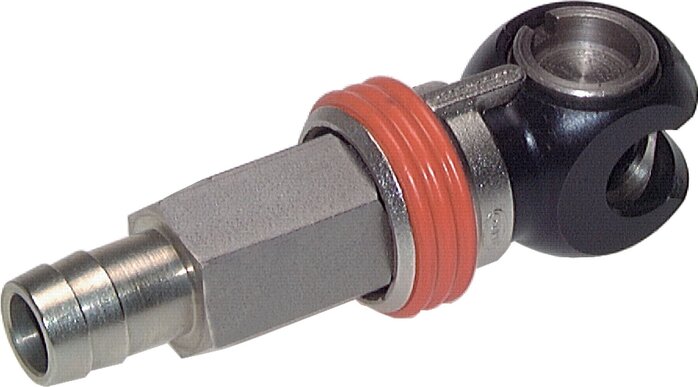

Steel DN 8 Safety Air Coupling Socket 9 mm Hose Pillar
Steel DN 8 safety air coupling socket with a 9 mm hose pillar connection. These safety couplings release the down-line air pressure by a manual swivel action on the socket. We recommend to use hardened steel nipples for safety couplings. The operating pressure range is 0 (suitable for coarse vacuums) to 25 bar. The socket is suitable for temperatures between -20 to 100°C. The flow rate is 1800 l/min. The seal material is NBR (nitrile rubber).
- Regular price
- £41.90
Description
Steel DN 8 safety air coupling socket with a 9 mm hose pillar connection. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.
These safety couplings release the down-line air pressure at the plug side in a safe, controlled manner by a manual swivel action on the socket. The plug will not be released before the pressure at the plug side reaches a safe low level. This prevents the risk of a dangerous bull whip effect which may cause damage to man and machine. We recommend to use hardened steel plugs with these couplings. Easily mount a hose over the 9 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. This coupling is suitable for vacuum applications. The operating pressure range is 0 to 25 bar. The socket is suitable for temperatures between -20 to 100°C. The rated flow rate is 1800 l/min. The seal material is NBR (nitrile rubber). The steel housing has a nickel-plated surface protection.
This product is compatible with: Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4), IMI-Norgren (238), Aventics (CP1-NW 7 / 7,8). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.
Pros:
- Easily mount a hose over the 9 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose.
- Compatible with a wide range of air couplings with the same standard profile design.
- The large 8 mm diameter allows for a large flow rate and low pressure drop.
- Safety couplings are a smart investment to provide a safe work environment. The swivel allows for a safe, controlled manner to release the down-line air pressure to prevent a dangerous bull whip effect.
- It can be used for vacuum applications.
CLS7-H-SEW series
Our air coupler offering ranges from DN 2.7 - 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.
