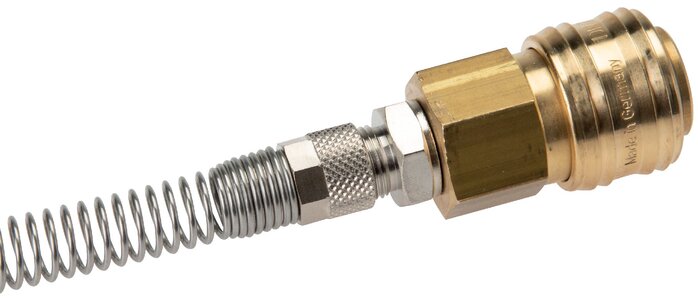

Nickel-plated Brass DN 7.2 (Euro) Air Coupling Socket 8x10 mm Union Nut Bend-Protect Rotatable

Nickel-plated Brass DN 7.2 (Euro) Air Coupling Socket 8x10 mm Union Nut Bend-Protect Rotatable
Reference: CLS7-NPD-BN-8
Brand: Tameson

Nickel-plated brass DN 7.2 (Euro) air coupling socket with a union nut for 8x10 mm hoses. It has bend protection. The operating pressure range is -0.95 (suitable for vacuums) to 35 bar. The socket is suitable for temperatures between -20 to 100°C. The flow rate is 1100 l/min. The seal material is NBR (nitrile rubber).

View all
Regular price
£17.37
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads

Nickel-plated brass DN 7.2 (Euro) air coupling socket with a union nut for 8x10 mm hoses. It has bend protection. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.

The socket is rotatable. This coupling is suitable for vacuum applications. The socket features a bend protection spring for extra protection. The operating pressure range is -0.95 to 35 bar. The socket is suitable for temperatures between -20 to 100°C. The rated flow rate is 1100 l/min. The seal material is NBR (nitrile rubber). The Nickel-plated brass housing has a nickel-plated surface protection. This DN 7.2 mm has a Euro profile and is popular within Europe.

This product is compatible with: Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4), IMI-Norgren (238), Aventics (CP1-NW 7 / 7,8). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.

Pros:

  • Compatible with a wide range of air couplings with the same standard profile design.
  • It can be used for vacuum applications.
  • The socket features a bend protection spring for extra protection.
  • The socket is rotatable.

CLS7-NP series

Our air coupler offering ranges from DN 2.7 - 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.
