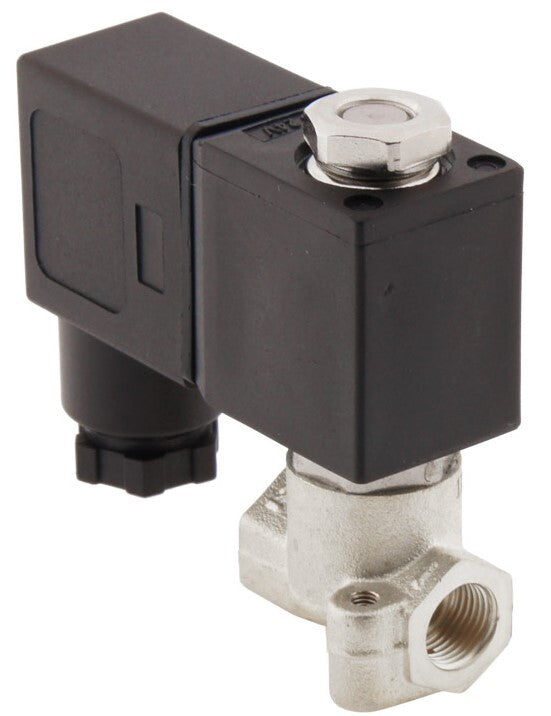

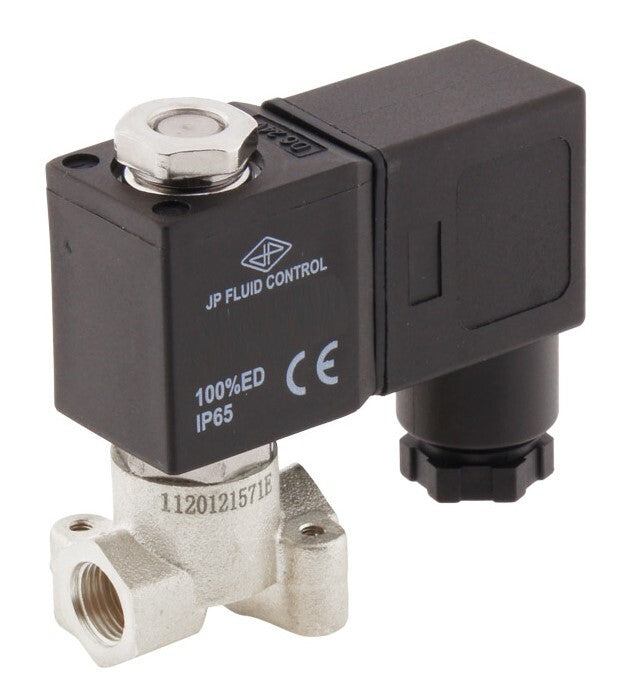

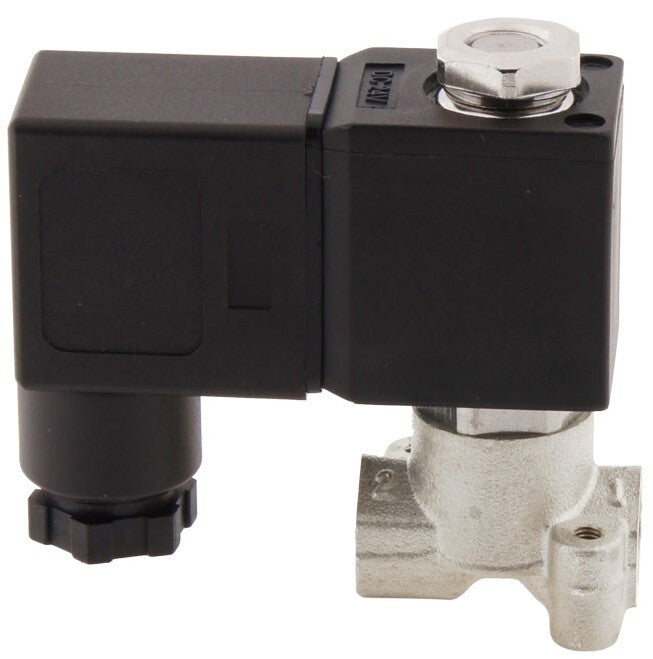

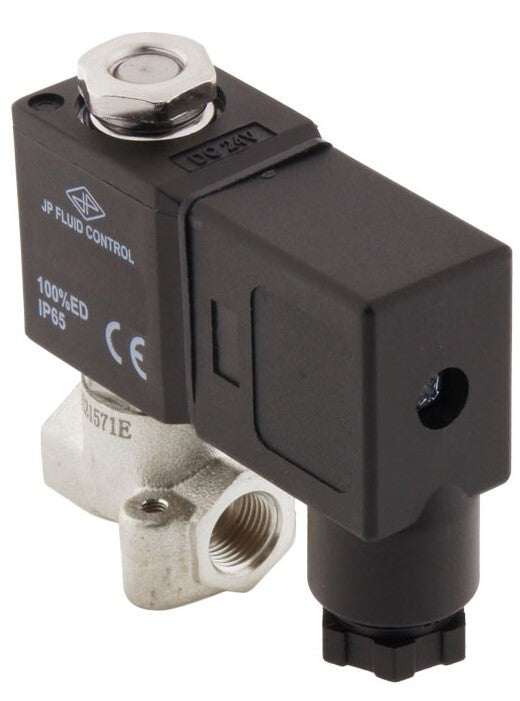

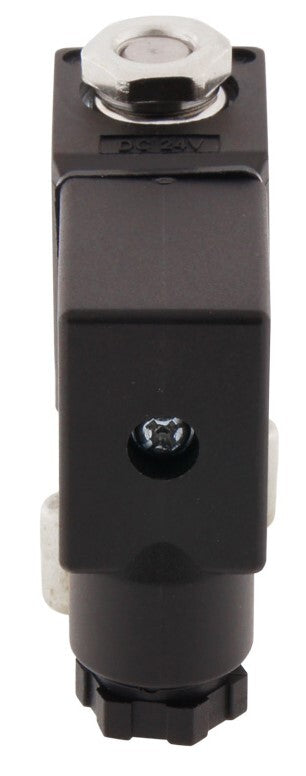

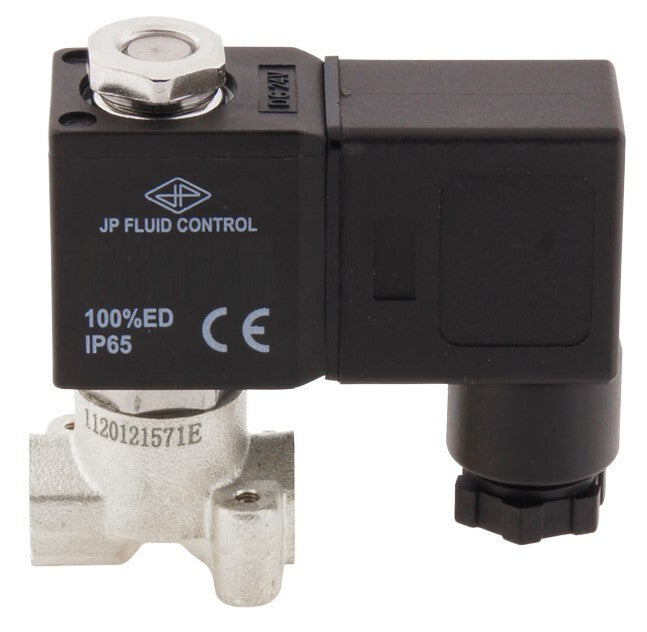

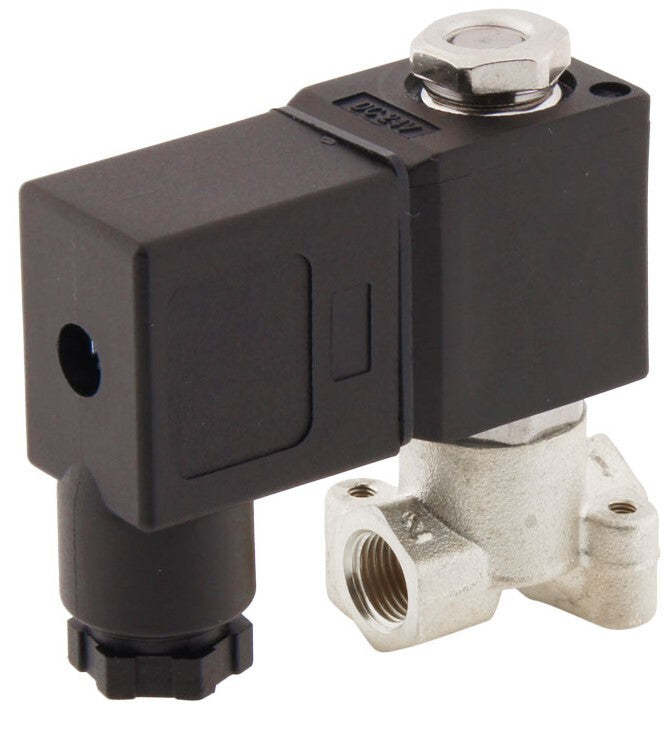

Solenoid Valve CM-DA 1/8'' Stainless Steel FKM 0-10bar 12V DC
JP Fluid Control 2 way solenoid valve (type CM-DA) with G 1/8 inch threads and a 12 V DC coil. The circuit function of the solenoid valve is normally closed (voltage = open) and direct operating, so no pressure differential is required. Suitable for max media temperature of 120° C (248 ° F) pressure range of 0 - 10 bar (0 - 145 psi). Housing of stainless steel with FKM (FPM) sealing and a 2 mm orifice. The Kv-value is 0.11 m3/h (1.83 l/min at dp=1 bar water).
- Regular price
- £42.48
Description
This is a JP Fluid Control direct operating 2 way solenoid valve with G 1/8 inch threads and a 12 V DC coil. The valve has a stainless steel housing with FKM (FPM) sealing and an orifice size of 2 mm (approximately 5/64 inch). The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied.
The valve is suitable for pressures of 0 - 10 bar (0 - 145 psi) and a maximum temperature of 120° C (248° F). The valve has a Kv-value of 0.11 m3/h, which translates to a flow rate of 1.83 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0.13, which means 0.13 GPM @ 1 psi pressure drop. For simple applications it is often enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator.
The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve has an IP65 rating if properly connected.
Pros:
- Compact and low energy consumption of 6 VA
- Solenoid valves open and close very fast compared to many other valve types
- Delivered including coil and connector
- Good protection against the environment thanks to the IP65 rating
Cons:
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- Solenoid valves use energy while activated and the coil may get hot. A well ventilated installation environment is recommended to dissipate the heat
CM-DA series
The CM-DA is a normally closed, directly operated 2/2-way solenoid valve and specially designed for installations where compactness and energy efficiency is important. The solenoid valves have an orifice from 1 to 2.5 mm, work from 0 bar (0 psi) and are suitable for small flow rates. The housing is made of brass with an NBR, EPDM or FKM seal. The CM-DA solenoid valves are compatible with all the coils from the CS4 series.
The valves are available with BSP or NPT threads on request.
