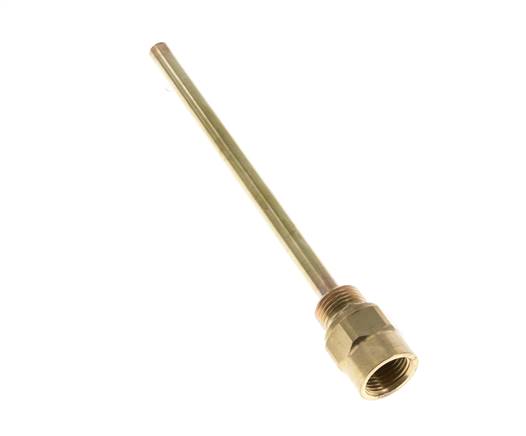

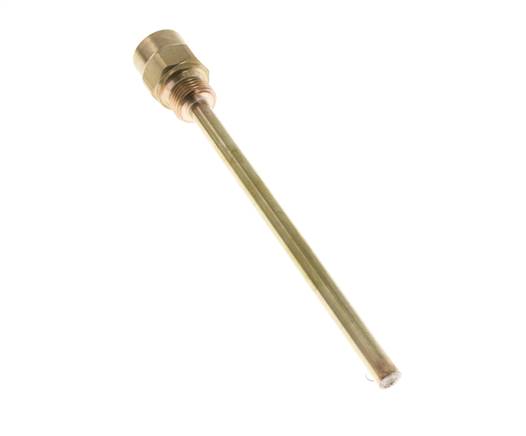

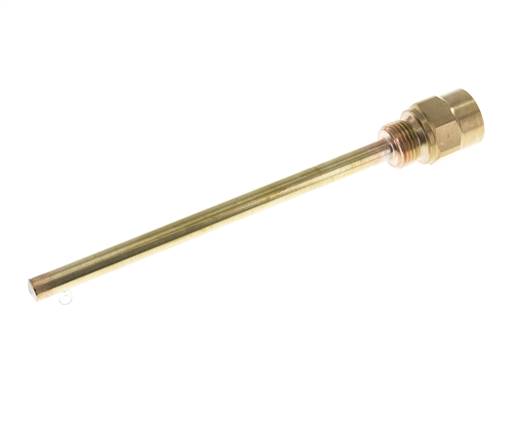

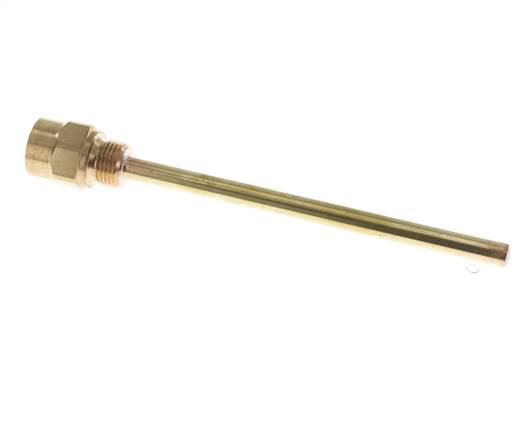

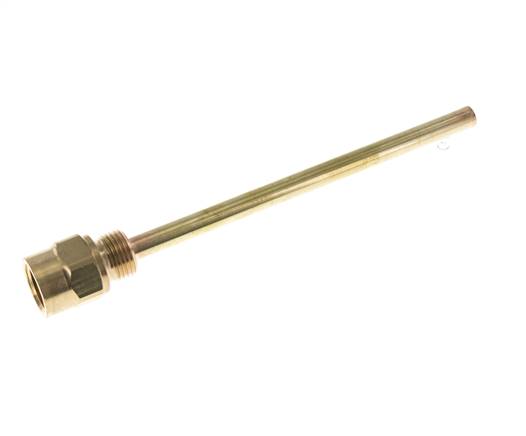

Copper Alloy G 1/2 Inch Thermowell for 200mm Stem Max 160°C and 6 Bars

Copper Alloy G 1/2 Inch Thermowell for 200mm Stem Max 160°C and 6 Bars
Image may vary slightly
See specifications for accurate information.
Reference: TWBLCU-G-012-200
Brand: WIKA

This copper alloy thermowell is designed to serve as a fitting and protection for a 200 mm long and 8 mm wide stem of a bimetallic thermometer. Mount it on your system using the G 1/2 inch female thread. To connect a thermometer simply screw it in the thermowell. This thermowell can withstand a maximum temperature of 160°C and a maximum operating pressure of 6 bar.

View all
Regular price
£40.47
excl VAT

In stock +2 days On request On request
For a higher quantity than 0 of product TWBLCU-G-012-200, the lead time of the order will increase by 2 days. The item is not online available in your chosen quantity, there are 5 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This copper alloy thermowell is designed to serve as a fitting and protection for a 200 mm long and 8 mm wide stem of a bimetallic thermometer. Mount it on your system using the G 1/2 inch female thread. To connect a thermometer simply screw it in the thermowell. This thermowell can withstand a maximum temperature of 160°C and a maximum operating pressure of 6 bar.

Pros:

  • Protects the thermometer's stem from the media pressure
  • Allows thermometer removal/replacement without stopping the process
  • Easy to connect and disconnect a bimetallic thermometer
  • Able to withstand temperatures up to 160°C

Cons:

  • Not suitable for aggressive media

TWB series

The TWB series consists of stainless steel and copper alloy thermowells designed to protect bimetallic thermometers from the media pressure and make their mounting and replacement easier. These thermowells accept the thermometers via threaded G 1/2 inch female port. The thermowells are either equipped with a G 1/2 inch female thread for connection or designed to be welded into the system. The copper alloy thermowells are suitable for temperatures of up to 160°C and maximum operating pressure of up to 6 bar while stainless steel thermowells can withstand 600°C and 25 bar operating pressure.
