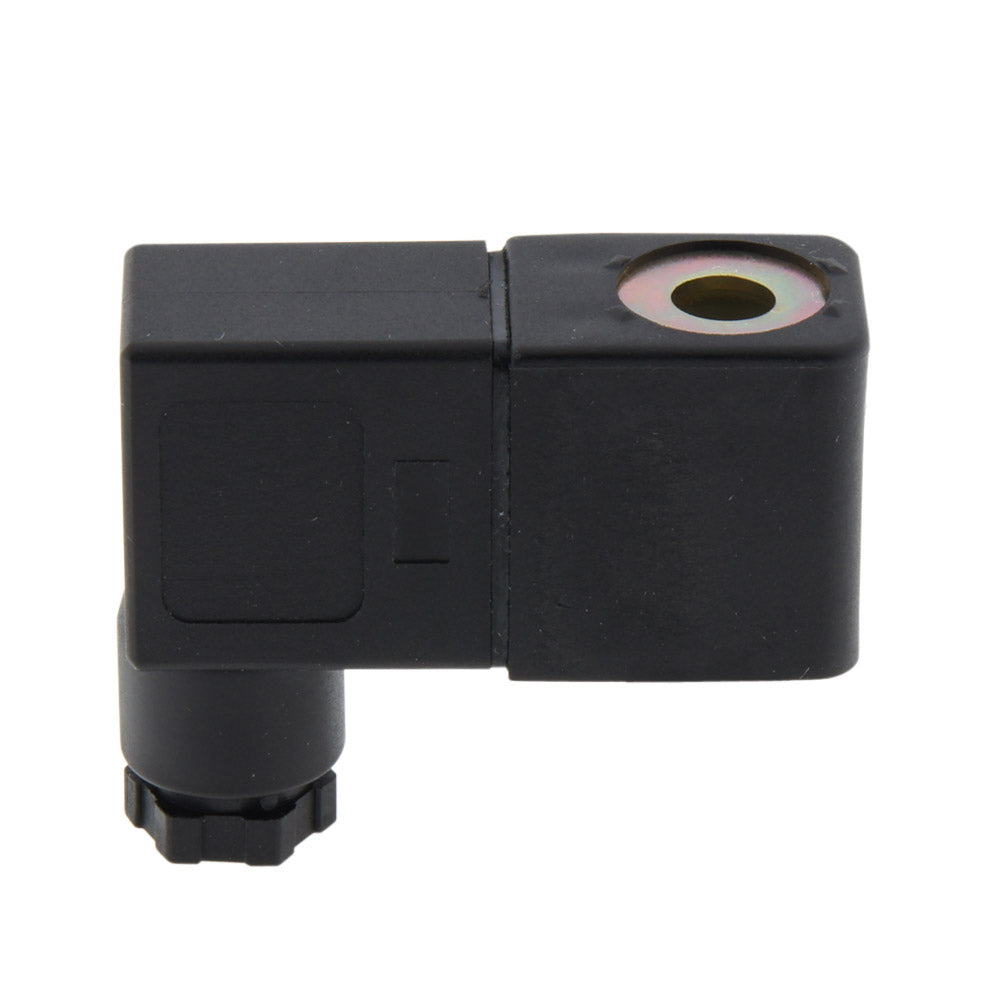

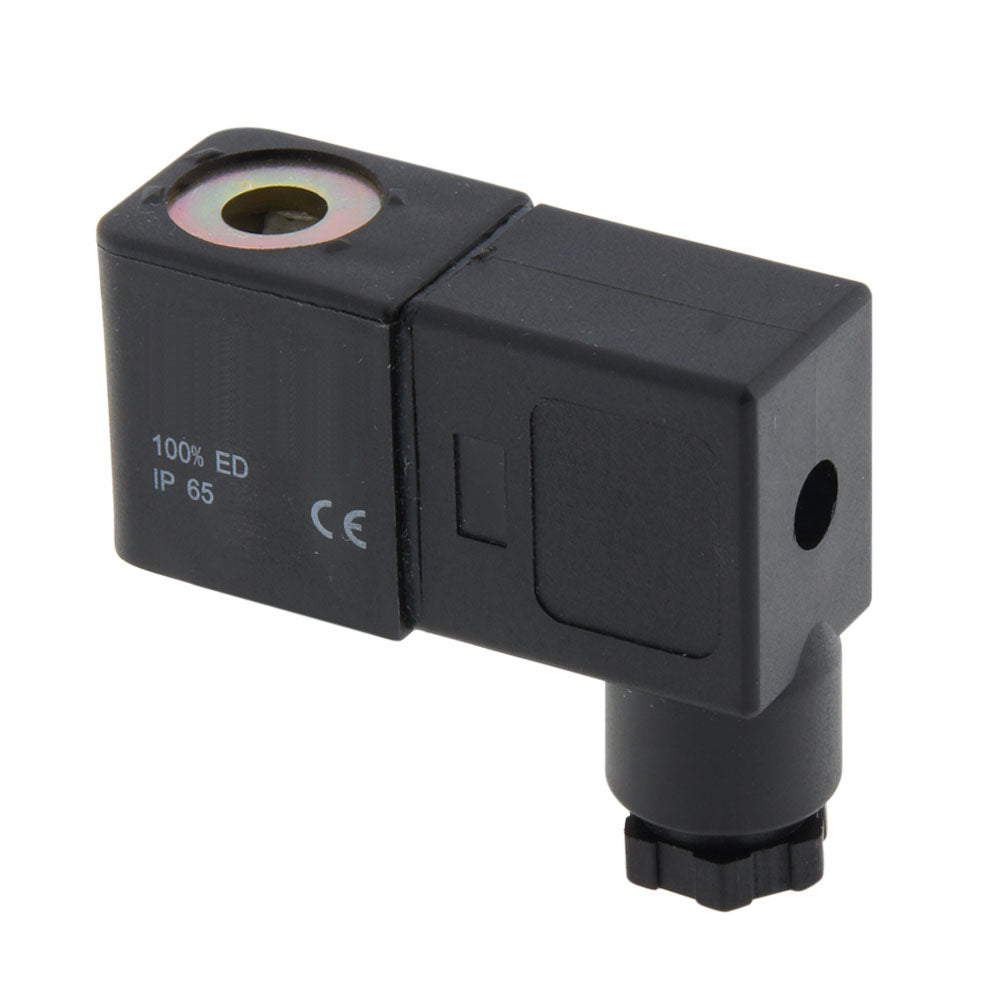

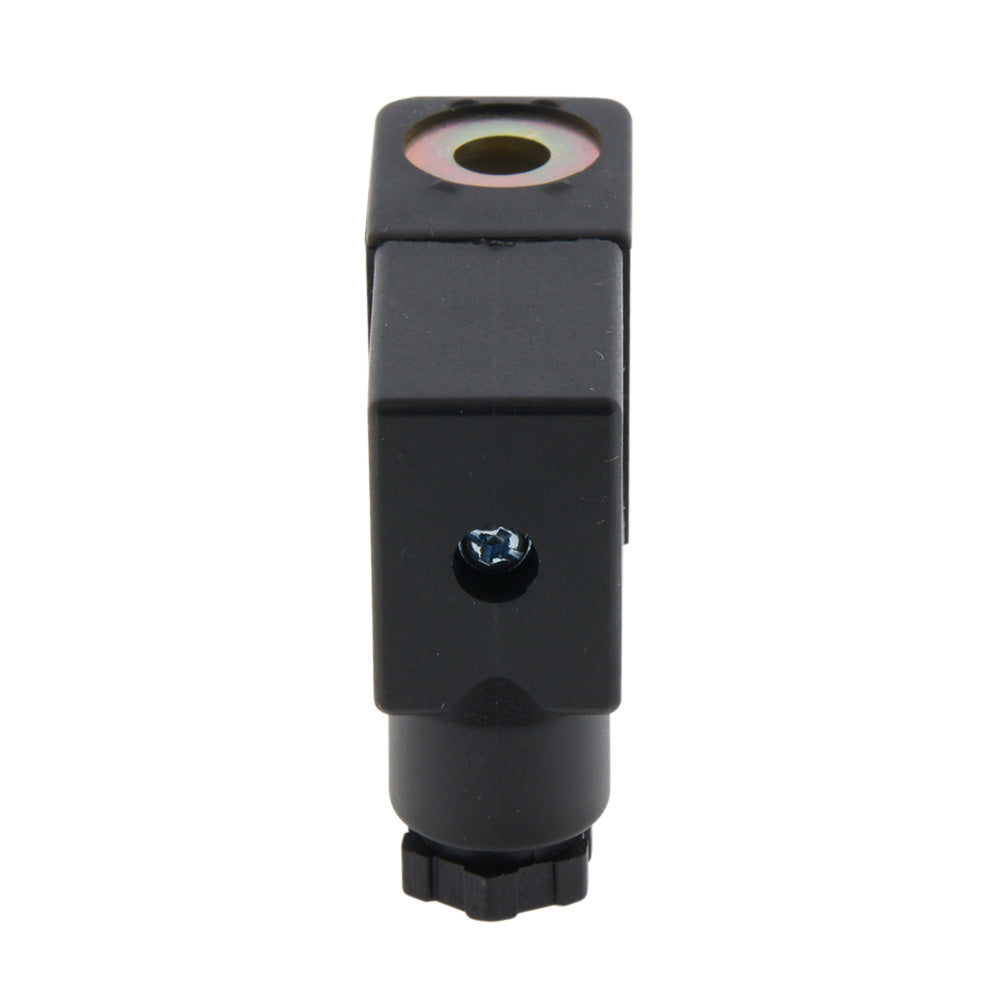

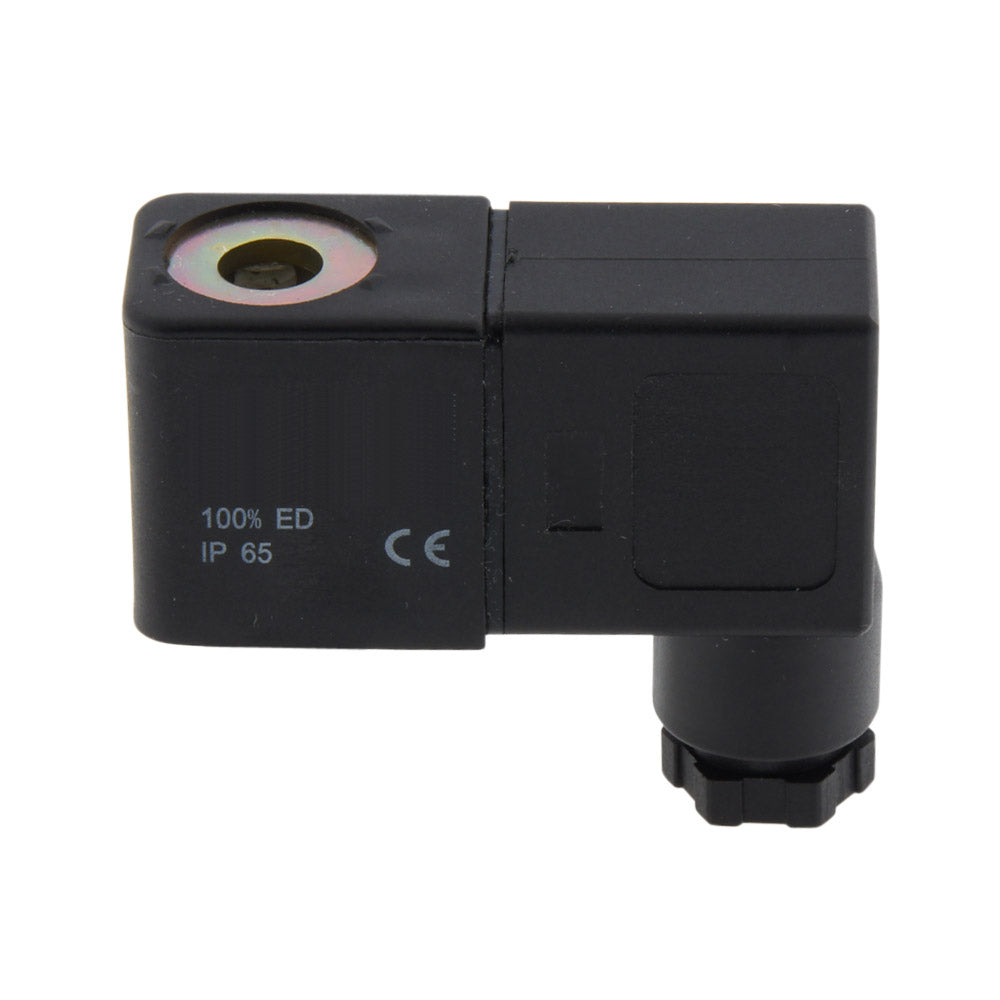

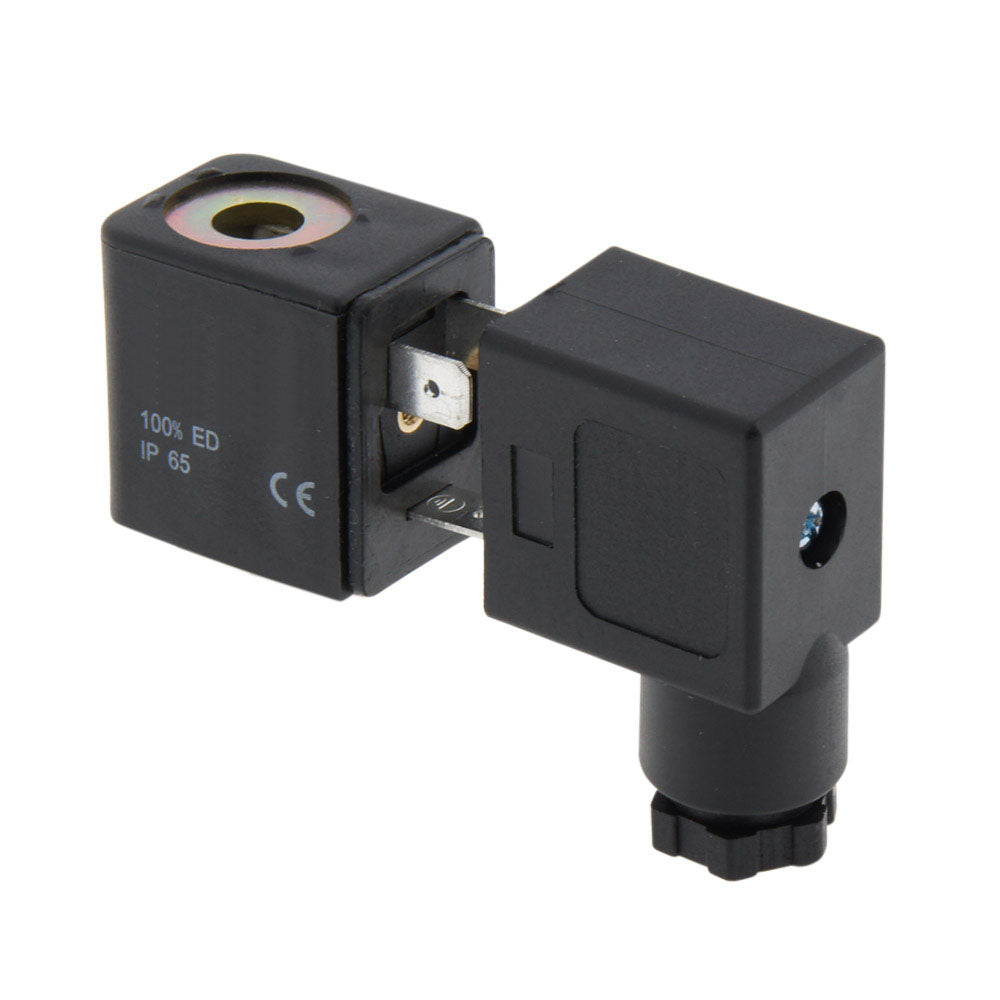

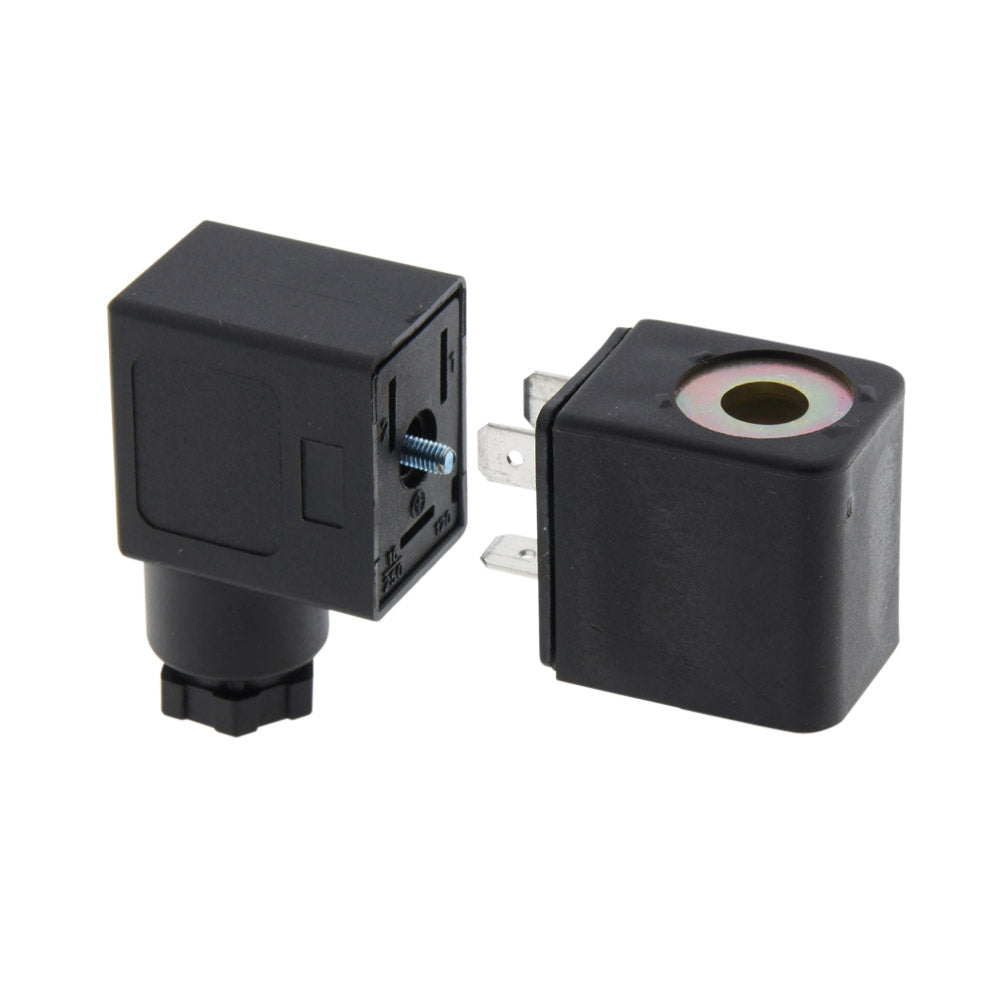

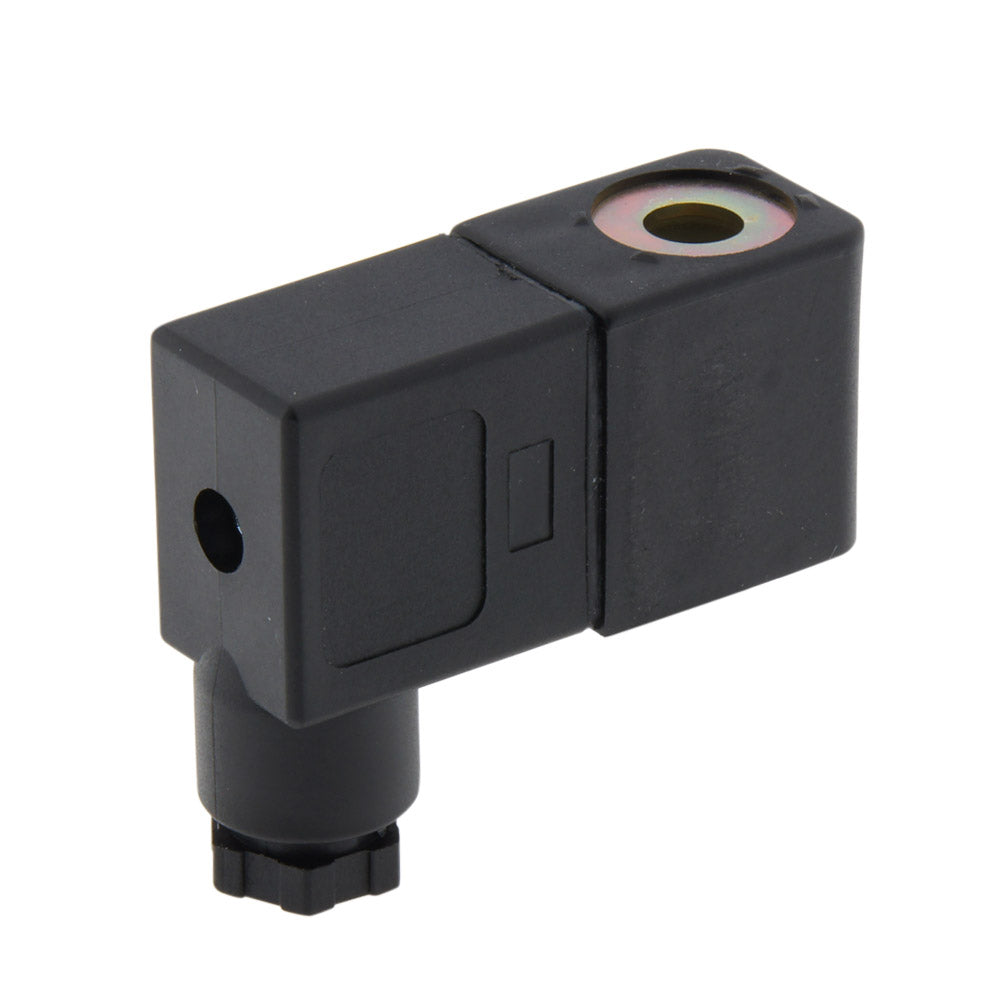

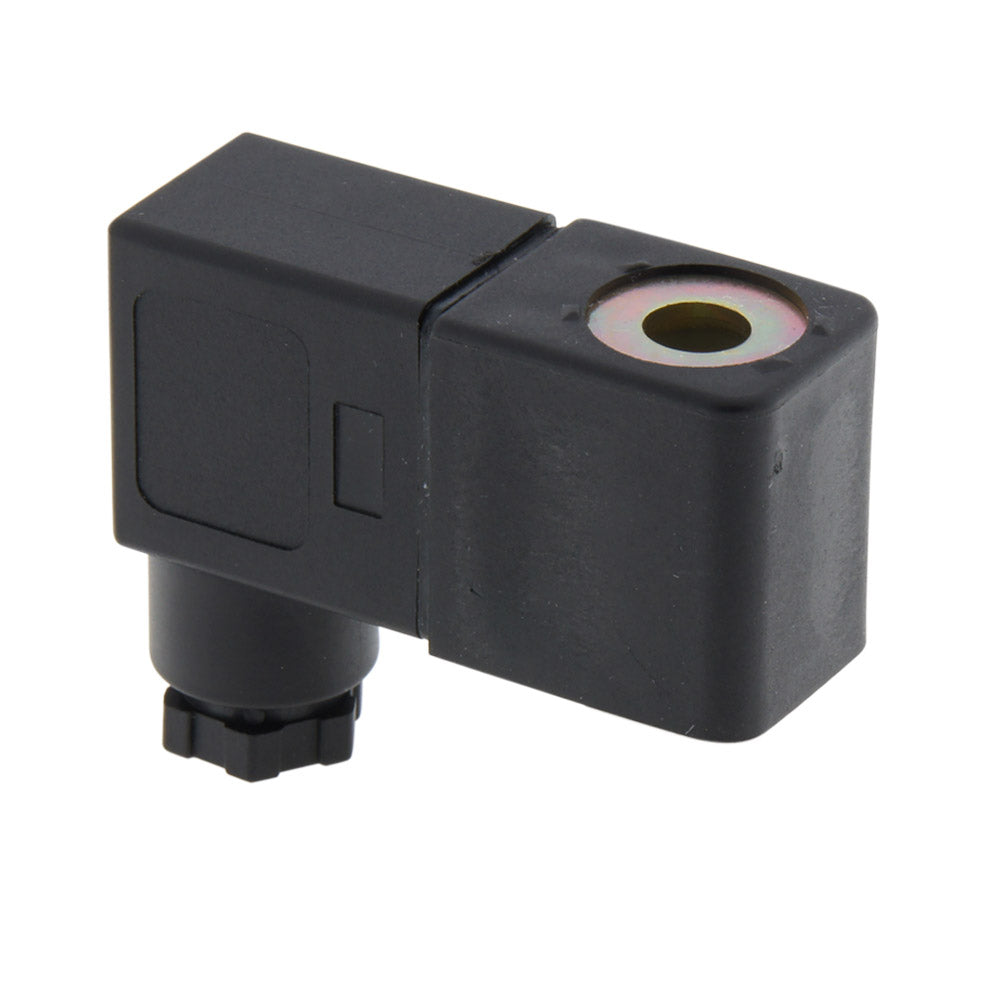

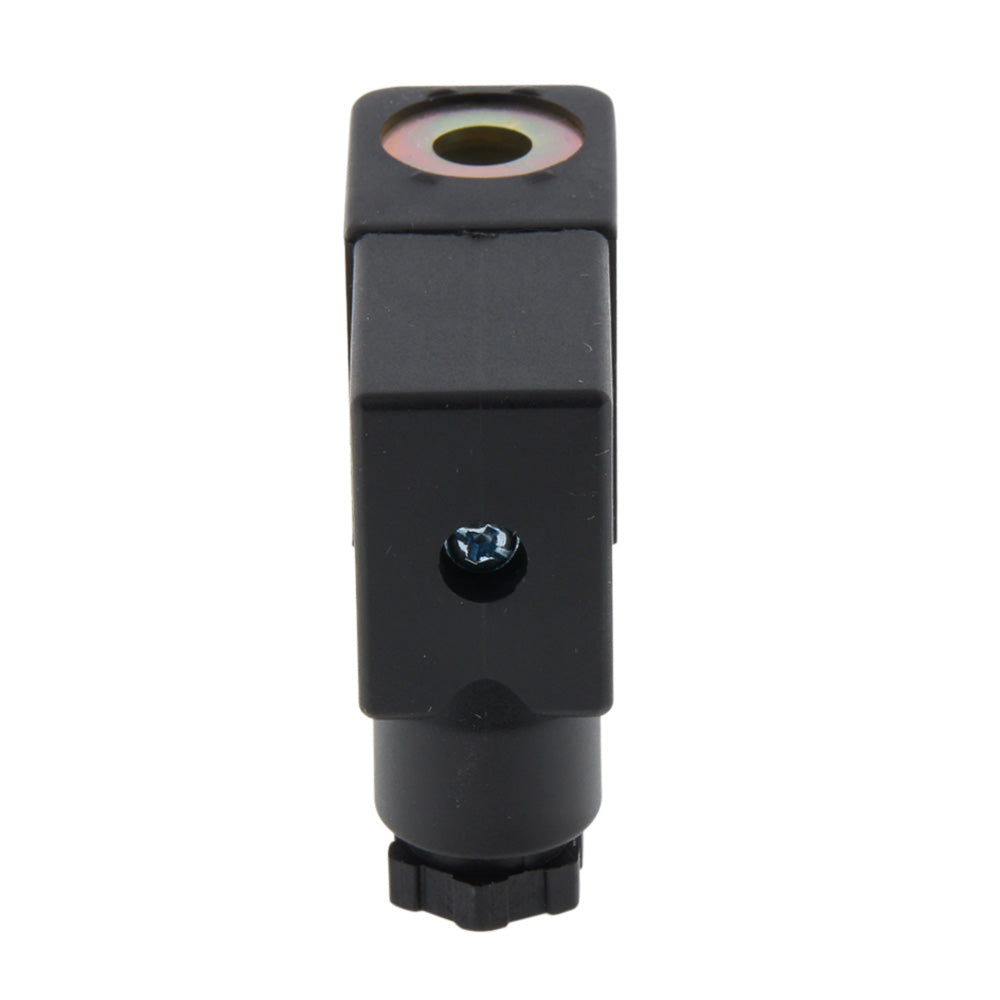

CP2 Coil DIN-B Connector 24V AC

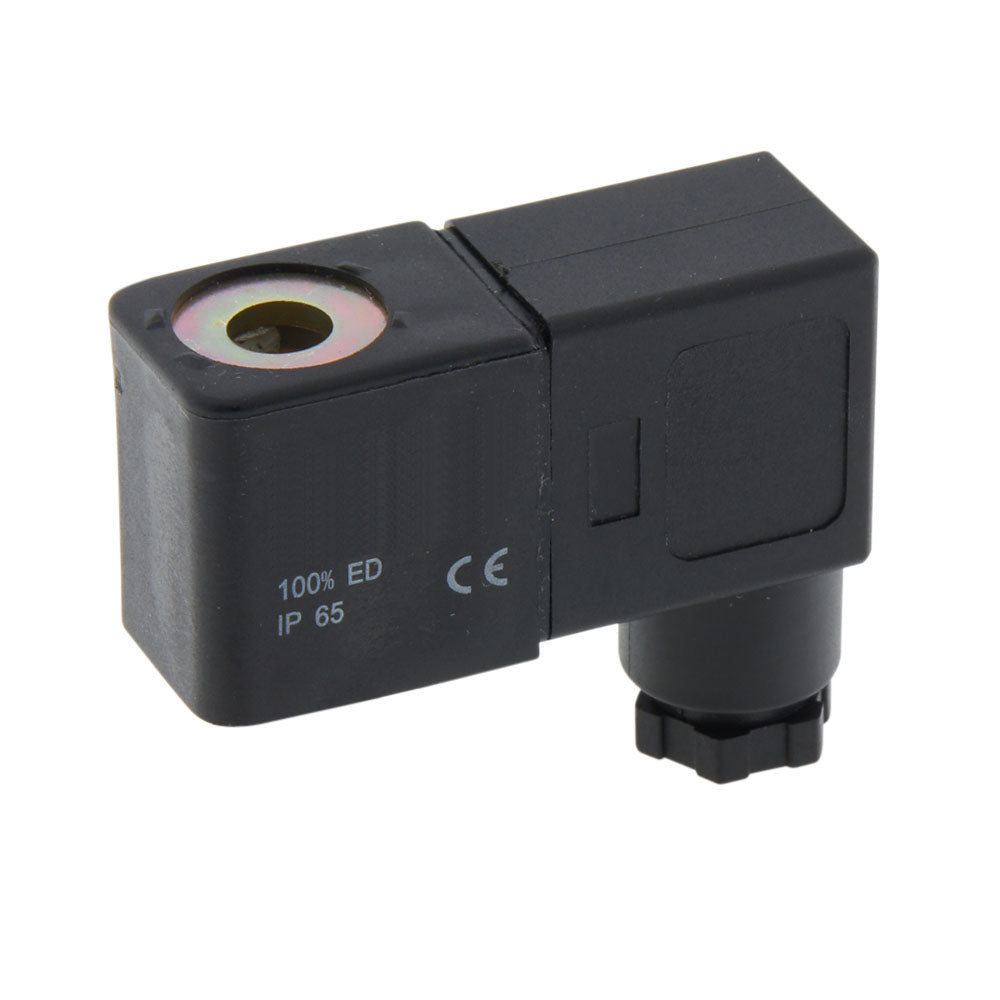

Name: CP2 Coil DIN-B Connector 24V AC
Brand: JP Fluid Control
Price: 14.61 GBP
Availability: InStock

Notice: This product is discontinued

Discontinued

Reference: CP2-024AC

Brand: JP Fluid Control

24V AC coil from the CP2 series. Suitable for solenoid valves of the PS type B, C and D series of JP Fluid Control.

Including connector

View all

Notice: This product is discontinued

Description

Specifications

Downloads

Description

Dimensions

Dimensions of the CP2 coil in mm.

Solenoid valve coil of the JP Fluid Control series (24V AC) including DIN-B connector. Please look at the table below to see which solenoid valves are suitable for this coil.

Valve Series	Function	Orifice	230VAC	24VDC	24VAC	12VDC	120VAC
ST-DA / ST-SA / ST-IA	NC	3 - 50 mm	CS1	CS1	CS1	CS1	CS1
ST-DB	NO	1 - 4 mm	CS1	CS1	CS1	CS1	CS1
TW-DB / TW-DC / TP	3/2 NO/DI	1.5 - 3 mm	CS1	CS1	CS1	CS1	CS1
LP	NO	6 - 9 mm	CS1	CS1	CS1	CS1	CS1
LP	NO	19 - 45 mm	CS2	CS2	CS2	CS2	CS2
ST-IB	NO	13 - 50 mm	CS2	CS2	CS2	CS2	CS2
DF-SA	NC	16 - 25 mm	CS2	CS2	CS2	CS2	CS2
DF-SA	NC	32 - 50 mm	CS8	CS8	CS8	CS8	CS8
DF-SB	NO	16 - 25 mm	CS2	CS2	CS2	CS2	CS2
TW-DA / TW-DD	3/2 NC/UN	1.5 - 3 mm	CS3	CS3	CS3	CS3	CS3
HP-DA	NC	1 - 1.5 mm	CS3	CS3	CS3	CS3	CS3
CM	NC	2 - 12 mm	CS4	CS4	CS4	CS4	CS4
HP-IA	NC	8 - 15 mm	CS5	CS5	CS5
PV	NC	15 - 45 mm	CS6	CS6	CS6	CS6	CS6
PS Type A	3/2, 5/2, 5/3		CP1	CP1	CP1	CP1	CP1
PS Type B/C/D	3/2, 5/2, 5/3		CP2	CP2	CP2	CP2	CP2

NC= Normally Closed, NO = Normally Open, DI = diverting, UN = universal

Important

Please make sure that the type of coil is suitable for the type of solenoid valve.
Only use the correct power supply as specified on the label. DC voltage applied to an AC voltage coil can lead to damage.
Never power the coil when it is not mounted on the solenoid valve. The coil will overheat and may burn out.
The coil is only properly insulated if all components, cables and connectors are properly connected.
The coil heats up during use. This is normal. Do not touch the coil or valve when it is hot.
