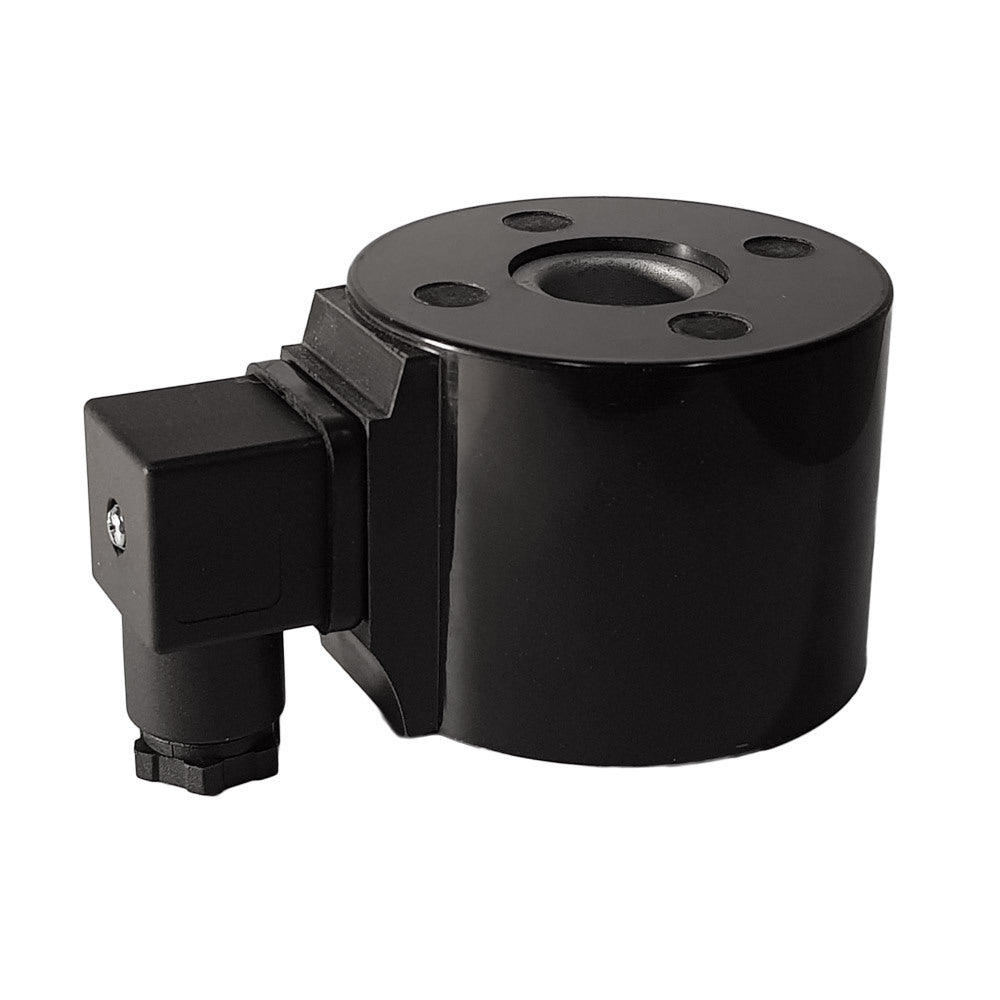

CS8 coil DIN-A connector 230V AC

Name: CS8 coil DIN-A connector 230V AC
Brand: JP Fluid Control
SKU: CS8-230AC
Price: 78.00 GBP
Availability: InStock

Reference: CS8-230AC

Brand: JP Fluid Control

230V AC coil from the CS8 series. Including connector

View all

Regular price: £78.00

excl VAT

Quantity

In stock Ships in 0d On request On request

0 are currently in your cart. For orders exceeding 100, expect an increased lead time of 0 days. Up to 142 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Shipping to United Kingdom: Free

Free for orders > £75.00

Expected delivery in 2 - 4 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description

Specifications

Downloads

Description

Dimensions

Dimensions of the CS8 coil in mm.

Solenoid valve coil of the JP Fluid Control series (230V AC) including DIN-A connector. Please look at the table below to see which solenoid valves are suitable for this coil.

Valve Series	Function	Orifice	230VAC	24VDC	24VAC	12VDC	120VAC
ST-DA / ST-SA / ST-IA	NC	3 - 50 mm	CS1	CS1	CS1	CS1	CS1
ST-DB	NO	1 - 4 mm	CS1	CS1	CS1	CS1	CS1
TW-DB / TW-DC / TP	3/2 NO/DI	1.5 - 3 mm	CS1	CS1	CS1	CS1	CS1
LP	NO	6 - 9 mm	CS1	CS1	CS1	CS1	CS1
LP	NO	19 - 45 mm	CS2	CS2	CS2	CS2	CS2
ST-IB	NO	13 - 50 mm	CS2	CS2	CS2	CS2	CS2
DF-SA	NC	16 - 25 mm	CS2	CS2	CS2	CS2	CS2
DF-SA	NC	32 - 50 mm	CS8	CS8	CS8	CS8	CS8
DF-SB	NO	16 - 25 mm	CS2	CS2	CS2	CS2	CS2
TW-DA / TW-DD	3/2 NC/UN	1.5 - 3 mm	CS3	CS3	CS3	CS3	CS3
HP-DA	NC	1 - 1.5 mm	CS3	CS3	CS3	CS3	CS3
CM	NC	2 - 12 mm	CS4	CS4	CS4	CS4	CS4
HP-IA	NC	8 - 15 mm	CS5	CS5	CS5
PV	NC	15 - 45 mm	CS6	CS6	CS6	CS6	CS6
PS Type A	3/2, 5/2, 5/3		CP1	CP1	CP1	CP1	CP1
PS Type B/C/D	3/2, 5/2, 5/3		CP2	CP2	CP2	CP2	CP2

NC= Normally Closed, NO = Normally Open, DI = diverting, UN = universal

Important

Please make sure that the type of coil is suitable for the type of solenoid valve.
Only use the correct power supply as specified on the label. DC voltage applied to an AC voltage coil can lead to damage.
Never power the coil when it is not mounted on the solenoid valve. The coil will overheat and may burn out.
The coil is only properly insulated if all components, cables and connectors are properly connected.
The coil heats up during use. This is normal. Do not touch the coil or valve when it is hot.
