DEH LH ZS 20 Ex P70 SBB V2A Conductor Holder 20mm 70mm - 275444

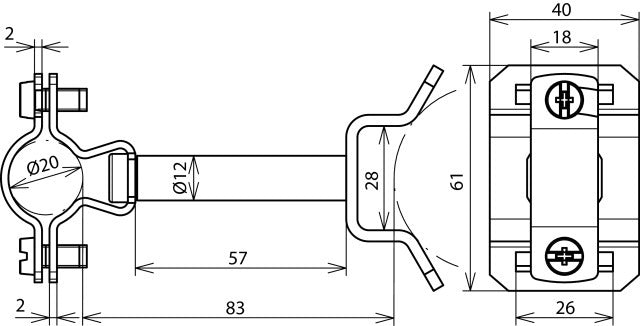

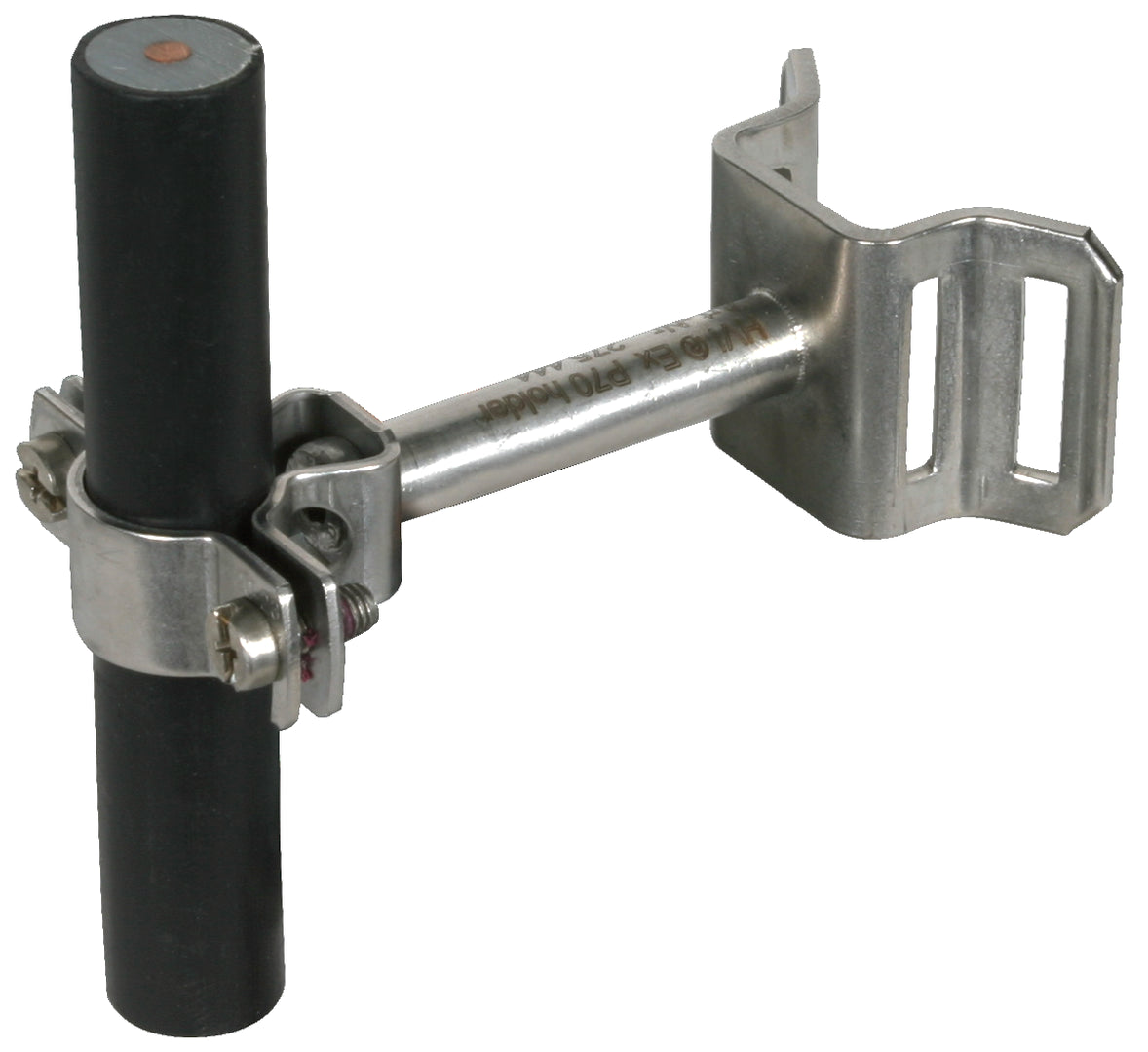

The Dehn HVI conductor holder is utilized for lightning protection and can be attached to pipes using a screw clamp. Its construction height is 16mm and is suitable for pipe clamping range of 50 - 300mm. It operates safely in explosion hazardous areas such as Ex zone 1 (gases, vapours, mists) and Ex zone 21 (dusts). The installation prevents electrical sparks to neighboring metal parts when lightning current flows through the HVI conductor. The holder contains a spacer sleeve of 70 mm for fixing on metal construction parts such as façades. The holder and bottom parts are made of RVS 304 (V2A) stainless steel, suitable for round conductors with a diameter of 20mm.
- Regular price
- £32.66
Description
The Dehn HVI conductor holder is utilized for lightning protection and can be attached to pipes using a screw clamp. Its construction height is 16mm and is suitable for pipe clamping range of 50 - 300mm. It operates safely in explosion hazardous areas such as Ex zone 1 (gases, vapours, mists) and Ex zone 21 (dusts). The installation prevents electrical sparks to neighboring metal parts when lightning current flows through the HVI conductor. The holder contains a spacer sleeve of 70 mm for fixing on metal construction parts such as façades. The holder and bottom parts are made of RVS 304 (V2A) stainless steel, suitable for round conductors with a diameter of 20mm.
