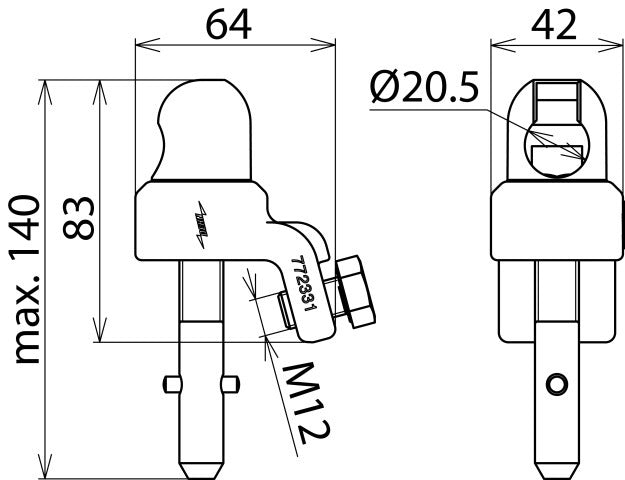

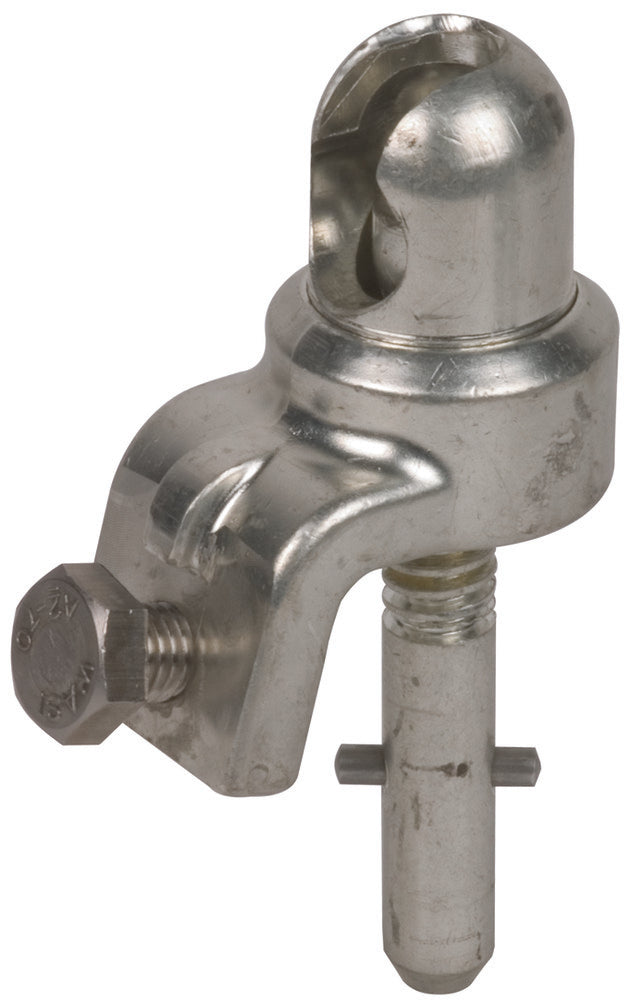

Dehn Adjustable Ball Head Cap D 20mm For Cables 16-120mm2 - 772331
This is an adjustable ball head cap with a hexagon shaft that can be used as a phase or earth connecting element, conforming to EN/IEC 61230 (DIN VDE 0683-100) for fixed ball points. It's suitable for attaching to earthing and short-circuiting devices. The cap can be adjusted 4 times at 90° angles and has an anti-rotation feature (PK1). With a maximum short-circuit current of 33.5kA, it can accommodate wire cross sections from 16 to 120mm². The connecting method involves a 20mm fixed ball point, and the control rod spindle is secured with a cross pin.
- Regular price
- £146.03
Description
This is an adjustable ball head cap with a hexagon shaft that can be used as a phase or earth connecting element, conforming to EN/IEC 61230 (DIN VDE 0683-100) for fixed ball points. It's suitable for attaching to earthing and short-circuiting devices. The cap can be adjusted 4 times at 90° angles and has an anti-rotation feature (PK1). With a maximum short-circuit current of 33.5kA, it can accommodate wire cross sections from 16 to 120mm². The connecting method involves a 20mm fixed ball point, and the control rod spindle is secured with a cross pin.
