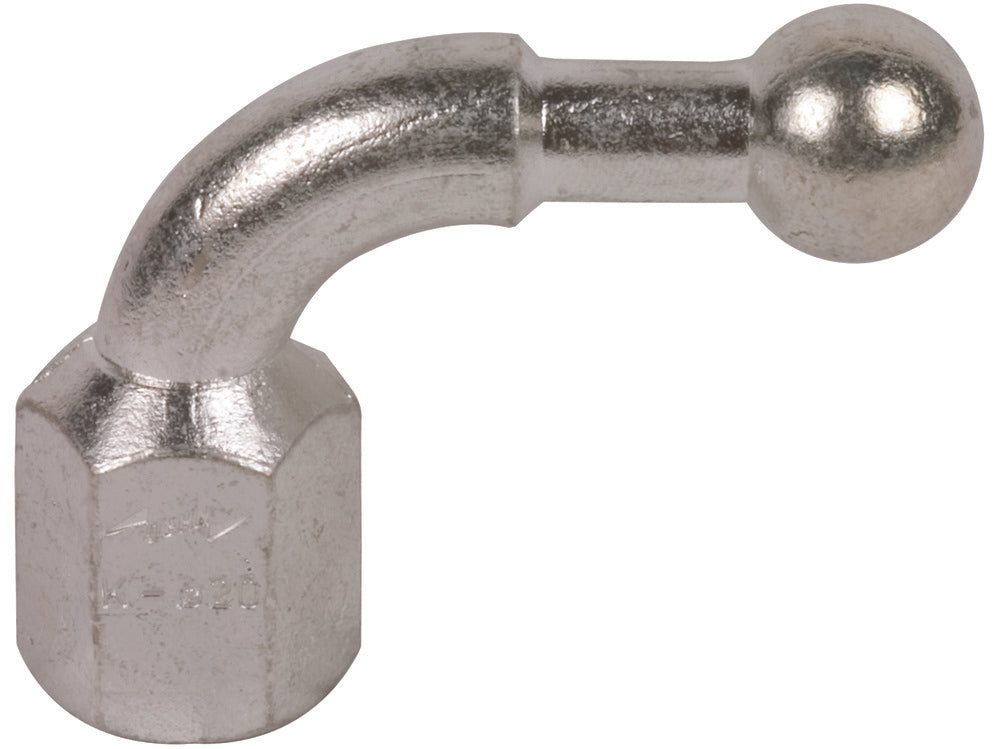

Dehn Angled Fixed Ball Point 20mm With M16 Female Thread - 707600

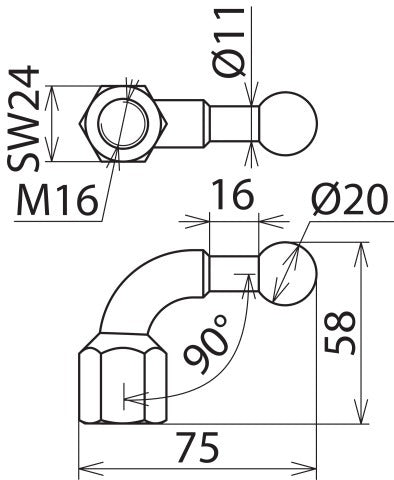

This item is a fixed ball point with a 90° angle and a female thread for the purpose of line and earth connection, compliant with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth termination system. It provides high mechanical strength due to its firm female thread (not cut), suitable for fixing cable lugs or connecting busbars following DIN 43673-1. It can support a maximum short circuit current of 19.5kA, with a threaded connection diameter of 20mm, and a max cable cross-section of 70mm² for copper wires. Its structure is diagonally built and it has an earth/ball fixture point of 20mm.
- Regular price
- £62.35
Description
This item is a fixed ball point with a 90° angle and a female thread for the purpose of line and earth connection, compliant with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth termination system. It provides high mechanical strength due to its firm female thread (not cut), suitable for fixing cable lugs or connecting busbars following DIN 43673-1. It can support a maximum short circuit current of 19.5kA, with a threaded connection diameter of 20mm, and a max cable cross-section of 70mm² for copper wires. Its structure is diagonally built and it has an earth/ball fixture point of 20mm.
