Dehn Ball Head Cap D 25mm With Hexagon Shaft For Conductors - 772320

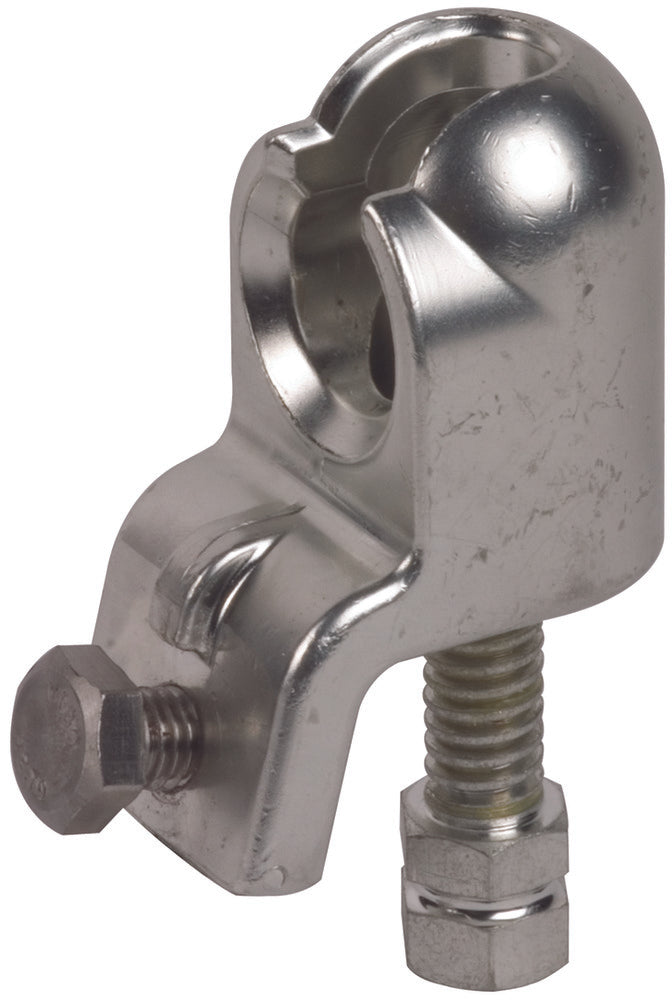

This is a Dehn connecting element designed for earthing and short-circuiting applications. It comes with a max short circuit current of 42kA, and is suitable for wire cross-sections ranging from 16 to 150mm². The connection method is a rigid 25mm ball head cap, which ensures secure attachment. Also featured is an anti-rotation safeguard, and the operating rod spindle is affixed with a hexagon. Use is intended on the phase side, in accordance with EN/IEC 61230 (DIN VDE 0683-100) for fixed ball points for attaching to earthing and short-circuiting devices. The PK1 anti-rotation element is included.
- Regular price
- £111.52
Description
This is a Dehn connecting element designed for earthing and short-circuiting applications. It comes with a max short circuit current of 42kA, and is suitable for wire cross-sections ranging from 16 to 150mm². The connection method is a rigid 25mm ball head cap, which ensures secure attachment. Also featured is an anti-rotation safeguard, and the operating rod spindle is affixed with a hexagon. Use is intended on the phase side, in accordance with EN/IEC 61230 (DIN VDE 0683-100) for fixed ball points for attaching to earthing and short-circuiting devices. The PK1 anti-rotation element is included.
