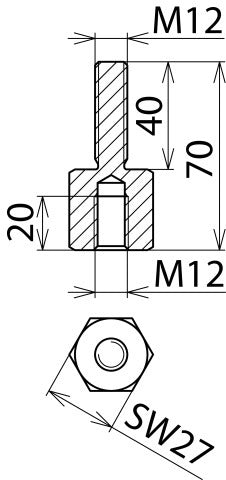

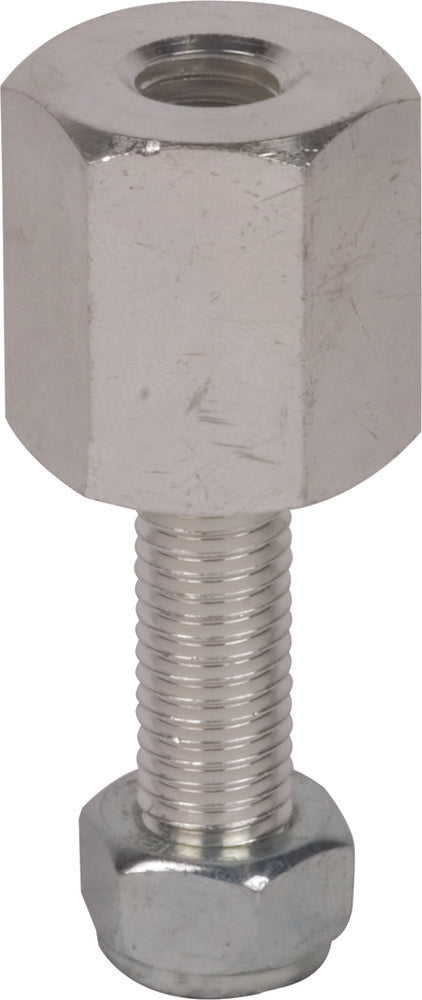

Dehn Bolted Type Connector M12 Female Thread M12x40 - 705504
This is a bolted-type connector with a non-cutting shaped thread that ensures high mechanical strength. It features a female thread which serves as a connection point to the earthing system, in line with EN/IEC 61230 (DIN VDE 0683-100) standards. It is designed to accommodate a maximum short-circuit current of 29.6kA and has a straight design along with a thread bolt. It also includes a connection for the grounding system, allowing for a maximum wire cross-section of copper measuring up to 150mm².
- Regular price
- £25.58
Description
This is a bolted-type connector with a non-cutting shaped thread that ensures high mechanical strength. It features a female thread which serves as a connection point to the earthing system, in line with EN/IEC 61230 (DIN VDE 0683-100) standards. It is designed to accommodate a maximum short-circuit current of 29.6kA and has a straight design along with a thread bolt. It also includes a connection for the grounding system, allowing for a maximum wire cross-section of copper measuring up to 150mm².
