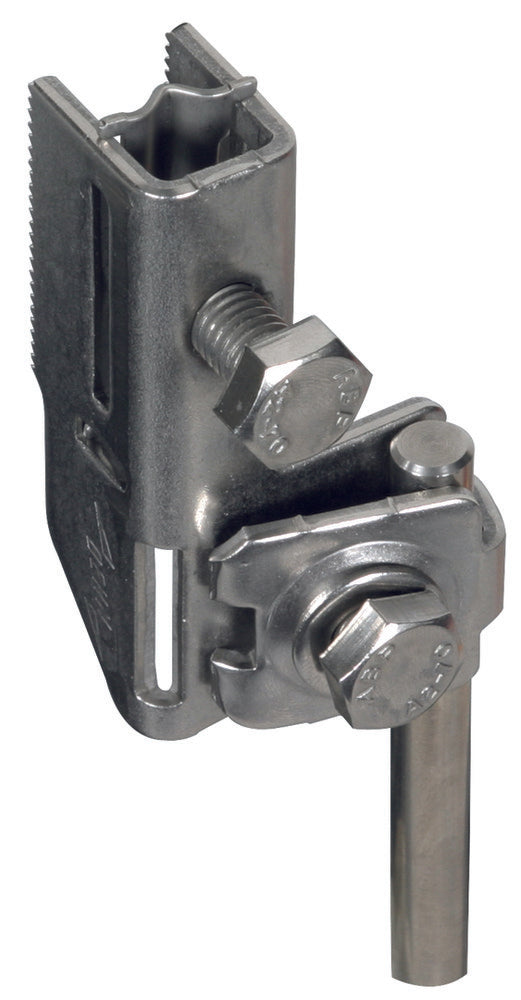

Dehn Clamp Chuck With Prongs For Strap 25x0.3mm For Rd 10mm - 540210
This is a lightning protection pipe clamp with tines as per EN 62561-1, designed for integrating pipes with surface protection in the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding as per IEC 62305-3. It features a separate grip head, suitable for use with varnished or powder-coated surfaces up to a layer thickness of 0.2 mm. The package includes a continuously adjustable stainless steel tensioning strap for connecting 1 conductor Rd D10 mm or 1-2 conductors Rd D6-8 mm or 4-50 mm² (solid / stranded).
- Regular price
- £13.52
Description
This is a lightning protection pipe clamp with tines as per EN 62561-1, designed for integrating pipes with surface protection in the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding as per IEC 62305-3. It features a separate grip head, suitable for use with varnished or powder-coated surfaces up to a layer thickness of 0.2 mm. The package includes a continuously adjustable stainless steel tensioning strap for connecting 1 conductor Rd D10 mm or 1-2 conductors Rd D6-8 mm or 4-50 mm² (solid / stranded).
