Dehn Conductor Holder With Flange For Rd 11-13mm - 275113 [2 pieces]

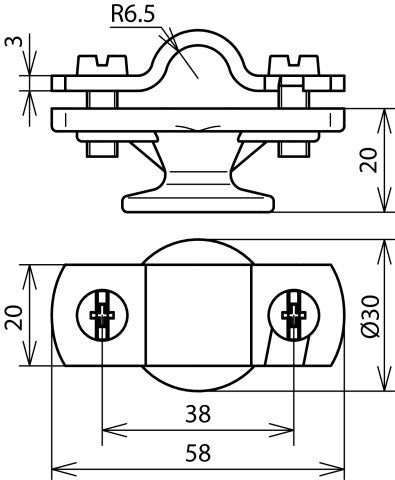

This is a conductor holder designed for lightning protection, featuring a screw clamp for conductor attachment and a bore holder with metric thread. The build height of the conductor holder is 20mm, and it has a thread size of 8 (metric). It is suitable for round conductors with diameters ranging from 11 to 13mm. The bottom part is made of die-cast zinc, and both the holder and the crossbar are constructed from steel. This model also includes a saddle clamp and flange for installing conductors with a plastic sheath. The design features a slotted saddle clamp for fixed conductor routing and is equipped with a female thread.

Contains 2 pieces
