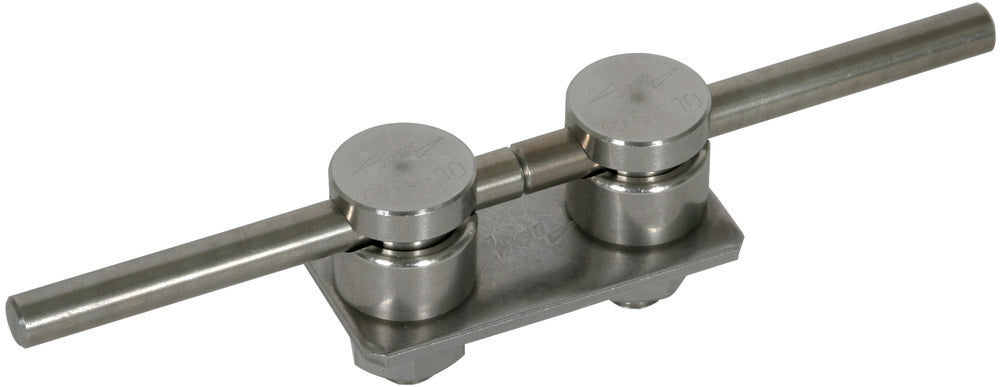

Dehn Connection Plate With 2 KS For HVI Conductor Head Piece - 301229
Notice: This product will be discontinued in the future

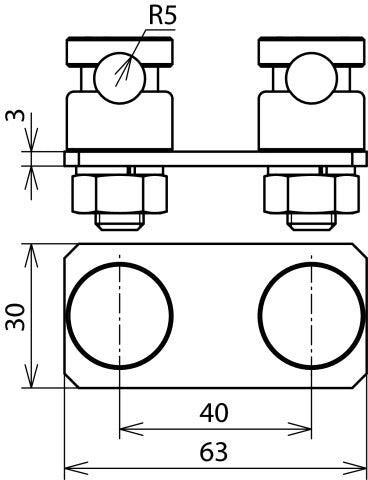

The Dehn HVI connector for lightning protection is crafted from stainless steel 304 (V2A). Featuring a connection type of connector with a round conductor diameter ranging from 6 - 10mm, it does not have surface protection and is untreated. It comes with clamping screw type fastening screws. Can be used to connect the HVI conductor with the air-termination rod (D 10mm), with two clamping screw connectors. Compliant with EN 62561-1, it is designed for the lightning current carrying capable connection of round conductors. This two-piece type connector comes with an M10 screw and nut and a distance of 40mm between pieces. It has a lightning current capacity of 100kA (10/350 µs).
Notice: This product will be discontinued in the future
Description
The Dehn HVI connector for lightning protection is crafted from stainless steel 304 (V2A). Featuring a connection type of connector with a round conductor diameter ranging from 6 - 10mm, it does not have surface protection and is untreated. It comes with clamping screw type fastening screws. Can be used to connect the HVI conductor with the air-termination rod (D 10mm), with two clamping screw connectors. Compliant with EN 62561-1, it is designed for the lightning current carrying capable connection of round conductors. This two-piece type connector comes with an M10 screw and nut and a distance of 40mm between pieces. It has a lightning current capacity of 100kA (10/350 µs).
