Dehn Cross Unit St Tzn For Fl 30/30mm Without Intermediate Plate - 318033

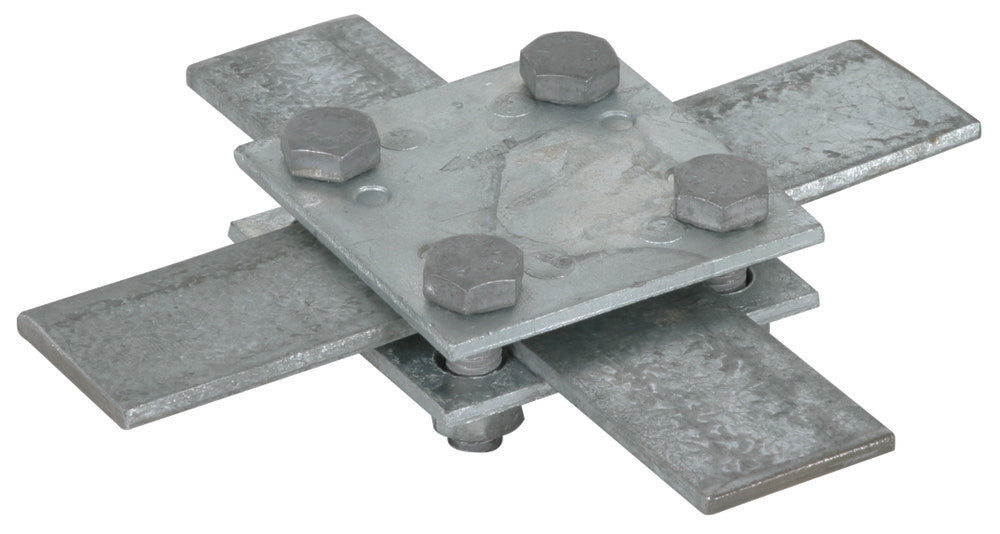

This is a Dehn connector designed for lightning protection. Constructed from steel, the unit adheres to EN 62561-1 standards, suitable for both aboveground and underground connection of two flat conductors. It features a cross-connection type and has a diameter of the flat conductor 1 & 2 at 30mm each. The coupling unit includes M8 screws and does not come with an intermediate plate. Its surface is thermally zinc-treated for added durability. The type of attachment screws employed are hexagonal. Additionally, it has a lightning current carrying capacity of 100kA (10/350 µs).
- Regular price
- £7.67
Description
This is a Dehn connector designed for lightning protection. Constructed from steel, the unit adheres to EN 62561-1 standards, suitable for both aboveground and underground connection of two flat conductors. It features a cross-connection type and has a diameter of the flat conductor 1 & 2 at 30mm each. The coupling unit includes M8 screws and does not come with an intermediate plate. Its surface is thermally zinc-treated for added durability. The type of attachment screws employed are hexagonal. Additionally, it has a lightning current carrying capacity of 100kA (10/350 µs).
