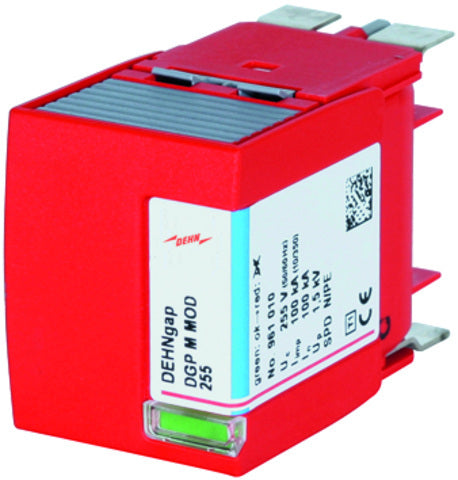

DEHN DGP M MOD 255 Spark-Gap-Based Protection Module - 961010
The DEHNgap spark-gap-based protection module is a Type 1 arrester, designed in line with the EN 61643-11 standard. The maximum flexible conductor cross-section this module supports ranges from 10 - 35mm², while for solid conductors it supports a range of 10 - 50mm². Its maximum continuous AC voltage is 255V and the nominal discharge current (8/20) is 100kA. The nominal AC voltage is 230V. This module is mounted on a base element and is suitable for TT network systems.
- Regular price
- £258.54
Description
The DEHNgap spark-gap-based protection module is a Type 1 arrester, designed in line with the EN 61643-11 standard. The maximum flexible conductor cross-section this module supports ranges from 10 - 35mm², while for solid conductors it supports a range of 10 - 50mm². Its maximum continuous AC voltage is 255V and the nominal discharge current (8/20) is 100kA. The nominal AC voltage is 230V. This module is mounted on a base element and is suitable for TT network systems.
