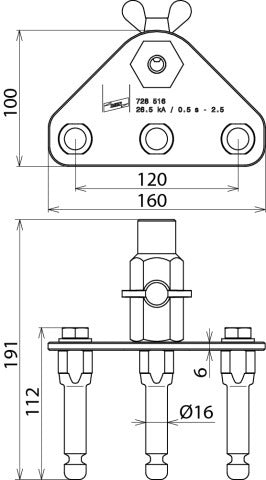

Dehn Earth Connection Plate With 3 Fixed Points - 728516

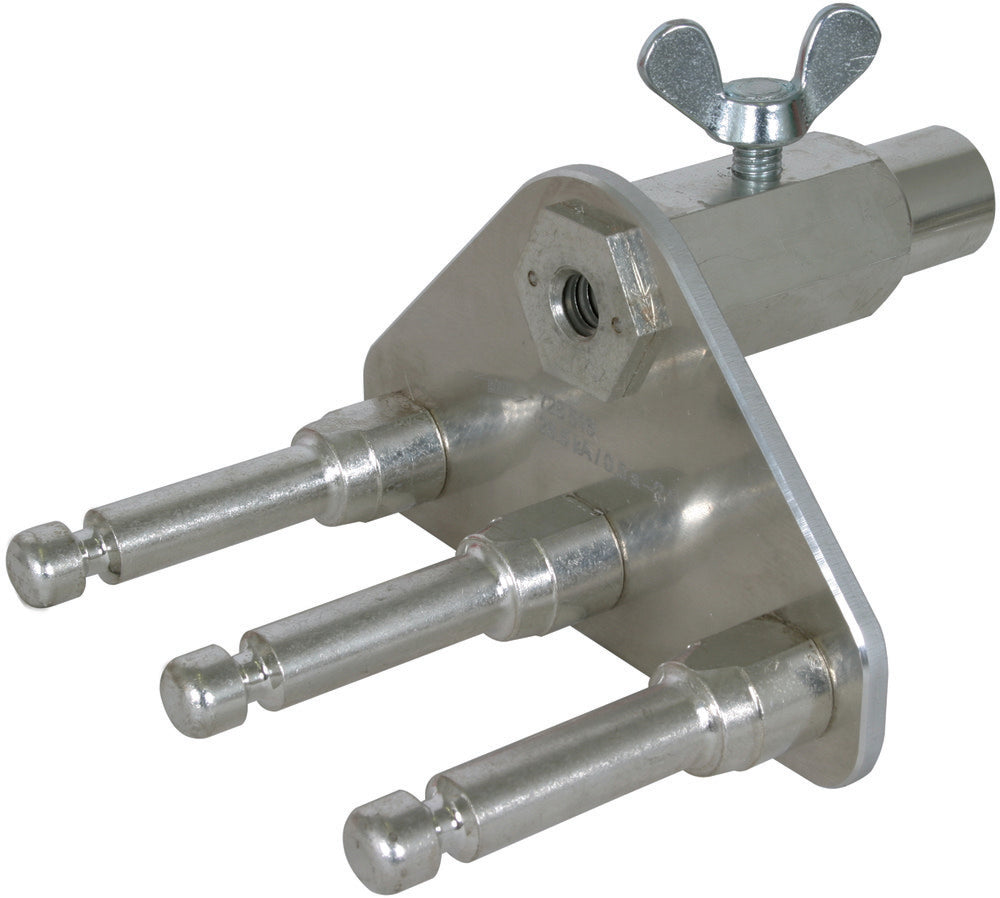

This is an earth connecting plate with a built-in earth bushing and three fixed earthing points, each equipped with a 16mm ring groove as per EN/IEC 61230 (DIN VDE 0683-100). It serves as a simple connection for single-pole, short-circuiting cables that can withstand a maximum short-circuit current of 26.5kA. The device allows a maximum wire cross-section of 95mm² for copper and maintains a straight construction. The diameter of the fixed point is 16mm. Notable for its high short-circuit current carrying capacity.
- Regular price
- £323.86
Description
This is an earth connecting plate with a built-in earth bushing and three fixed earthing points, each equipped with a 16mm ring groove as per EN/IEC 61230 (DIN VDE 0683-100). It serves as a simple connection for single-pole, short-circuiting cables that can withstand a maximum short-circuit current of 26.5kA. The device allows a maximum wire cross-section of 95mm² for copper and maintains a straight construction. The diameter of the fixed point is 16mm. Notable for its high short-circuit current carrying capacity.
