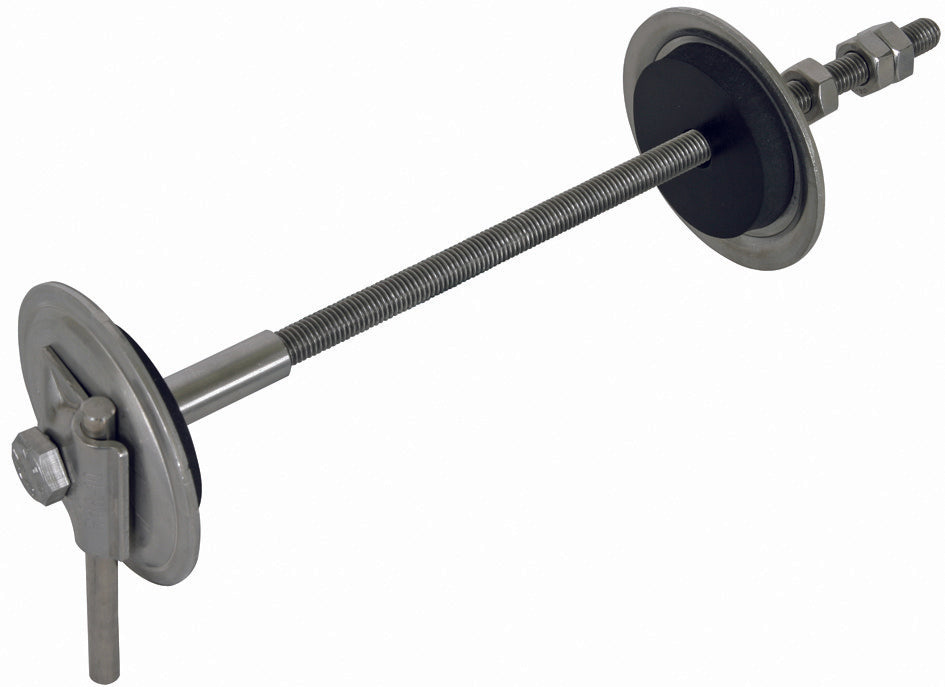

Dehn Earth Electric Wall Bushing 100-300mm With M10 Thread - 478410
This item is a water-pressure-tight wall bushing, equipped with a MV clamp made of stainless steel (V4A). It is designed for leading earthing conductors or equipotential bonding conductors through walls and brickwork. The piece includes an M10 threaded rod also made of stainless steel, suitable for subsequent installation through a borehole with a diameter of 14 mm or if necessary, through a spacer of the formwork. It has a pressurized water test rating of up to 1 bar, indicating an installation depth of 10 meters in stagnant water.
- Regular price
- £41.14
Description
This item is a water-pressure-tight wall bushing, equipped with a MV clamp made of stainless steel (V4A). It is designed for leading earthing conductors or equipotential bonding conductors through walls and brickwork. The piece includes an M10 threaded rod also made of stainless steel, suitable for subsequent installation through a borehole with a diameter of 14 mm or if necessary, through a spacer of the formwork. It has a pressurized water test rating of up to 1 bar, indicating an installation depth of 10 meters in stagnant water.
