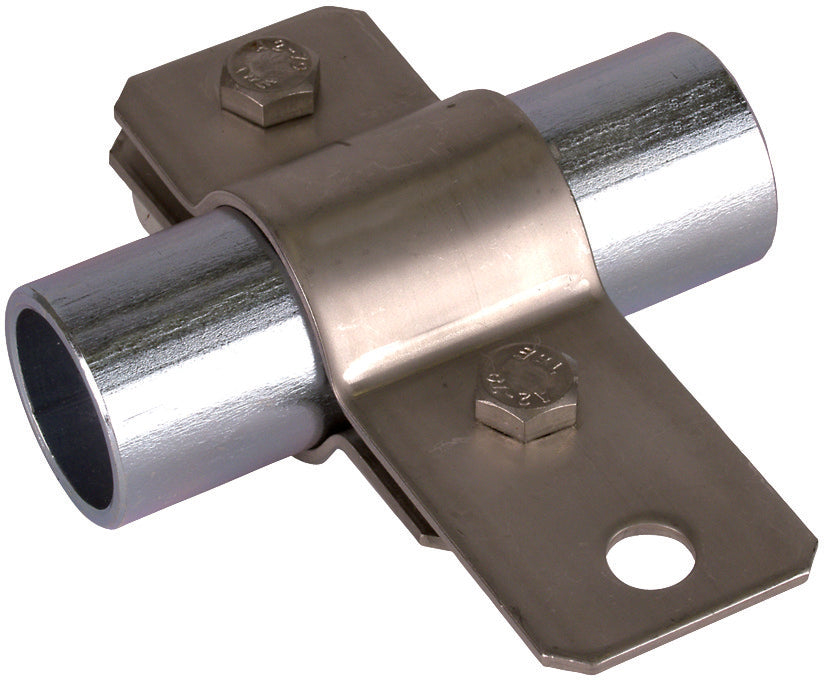

Dehn Earthing Pipe Clamp D 34mm With Bore D 11mm StSt V2A - 410339
Notice: This product will be discontinued in the future
The Earthing pipe clamp is designed for lightning protection in compliance with EN 62561-1 standards. It is used for integrating pipes into the protective and functional equipotential bonding, in accordance with the specifications of IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding as per IEC 62305-3 standards. It features a Type StSt construction with M8 screws and offers a connection for flat conductors with M10 screws and nuts. Suitable for round conductors ranging from 7-10 mm dimensions, it can be used with a KS connector for instance.
Notice: This product will be discontinued in the future
Description
The Earthing pipe clamp is designed for lightning protection in compliance with EN 62561-1 standards. It is used for integrating pipes into the protective and functional equipotential bonding, in accordance with the specifications of IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding as per IEC 62305-3 standards. It features a Type StSt construction with M8 screws and offers a connection for flat conductors with M10 screws and nuts. Suitable for round conductors ranging from 7-10 mm dimensions, it can be used with a KS connector for instance.
