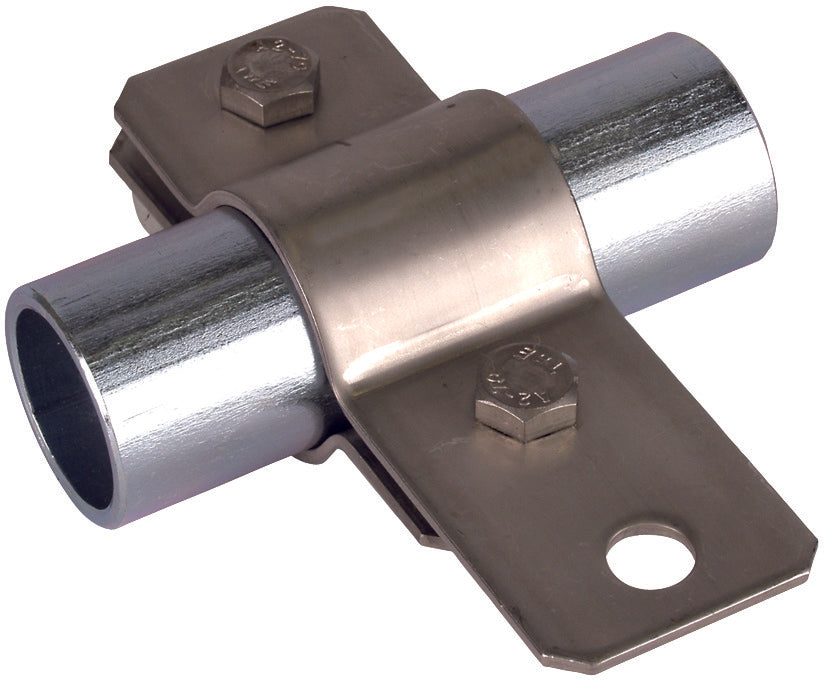

Dehn Earthing Pipe Clamp D 42mm Bore D 11mm Stainless Steel V2A - 410349
The Earthing pipe clamp lightning protection is in compliance with EN 62561-1 and can be integrated into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and the lightning equipotential bonding as per IEC 62305-3. This clamp is the StSt type equipped with M8 screws and provides a connection for a flat conductor utilizing M10 screws and nuts. It can be used with a round conductor ranging from 7-10 mm, such as a KS connector.
- Regular price
- £10.15
Description
The Earthing pipe clamp lightning protection is in compliance with EN 62561-1 and can be integrated into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and the lightning equipotential bonding as per IEC 62305-3. This clamp is the StSt type equipped with M8 screws and provides a connection for a flat conductor utilizing M10 screws and nuts. It can be used with a round conductor ranging from 7-10 mm, such as a KS connector.
