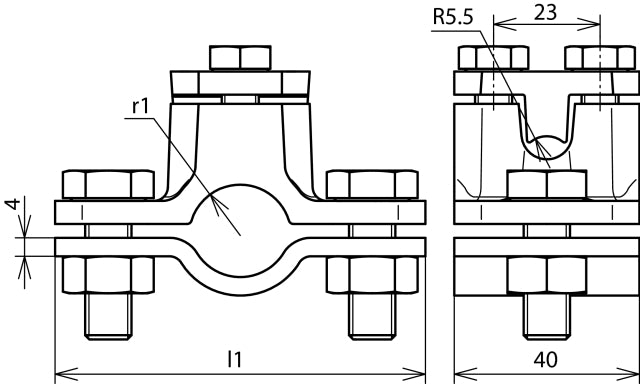

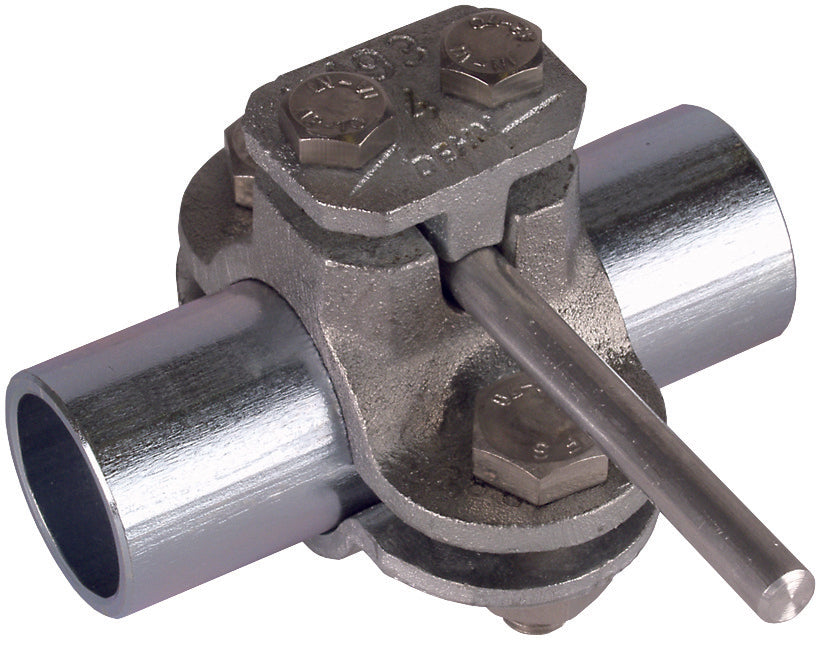

Dehn Earthing Pipe Clamp D 48mm With Connecting Clamp Rd 4-10mm - 407112
The Dehn pipe earth clamp, made from malleable cast iron, has a clamping range of 48mm and a max/min clamping range of 1.1/2 inches. It can accommodate a cable with a cross-section between 4 - 70mm², and is designed for one conductor. Its surface is thermally galvanized for protection. This clamp is designed for lightning protection and is compliant with EN 62561-1 and IEC standards 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and IEC 62305-3 for lightning equipotential bonding. It comes equipped with M10 screws and can be connected to Rd 4-10 mm or a conductor with a maximum cross-section of 70 mm².
- Regular price
- £24.03
Description
The Dehn pipe earth clamp, made from malleable cast iron, has a clamping range of 48mm and a max/min clamping range of 1.1/2 inches. It can accommodate a cable with a cross-section between 4 - 70mm², and is designed for one conductor. Its surface is thermally galvanized for protection. This clamp is designed for lightning protection and is compliant with EN 62561-1 and IEC standards 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and IEC 62305-3 for lightning equipotential bonding. It comes equipped with M10 screws and can be connected to Rd 4-10 mm or a conductor with a maximum cross-section of 70 mm².
