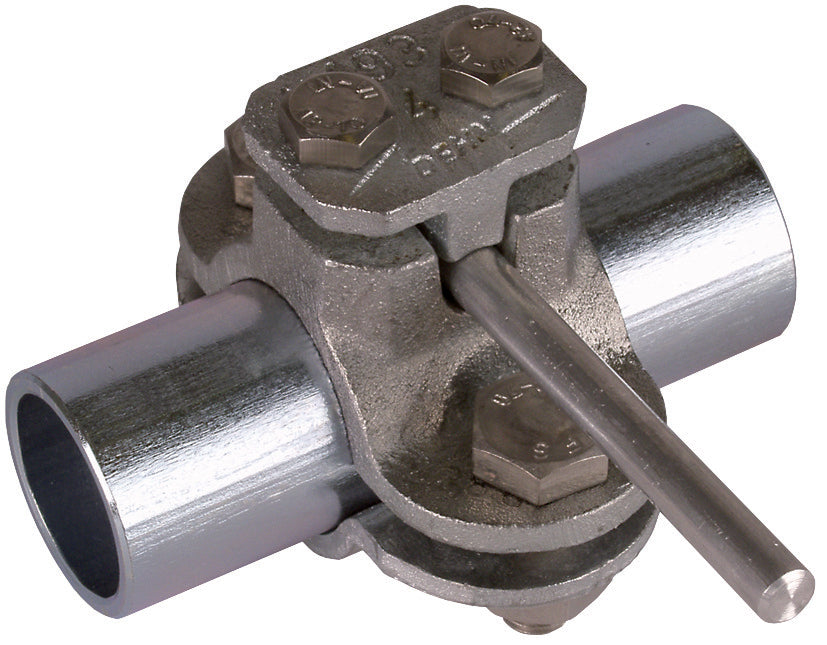

Dehn Earthing Pipe Clamp D 60mm With Connection Clamp Rd 4-10mm - 407200
Notice: This product will be discontinued in the future
The Earthing pipe clamp is designed for lightning protection in compliance with EN 62561-1 standards. It is used for integrating pipes into the protective and functional equipotential bonding as per IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC 62305-3. The clamp contains M10 screws and provides a connection for Rd 4-10 mm or conductor cross-section up to 70 mm². Constructed from malleable cast iron, it has a clamp range of 60mm, can accommodate 1 conductor, and features thermal galvanizing for surface protection.
Notice: This product will be discontinued in the future
Description
The Earthing pipe clamp is designed for lightning protection in compliance with EN 62561-1 standards. It is used for integrating pipes into the protective and functional equipotential bonding as per IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC 62305-3. The clamp contains M10 screws and provides a connection for Rd 4-10 mm or conductor cross-section up to 70 mm². Constructed from malleable cast iron, it has a clamp range of 60mm, can accommodate 1 conductor, and features thermal galvanizing for surface protection.
