Dehn ES Connector ZDC With Truss Head Screw For 8MM RD - 309008

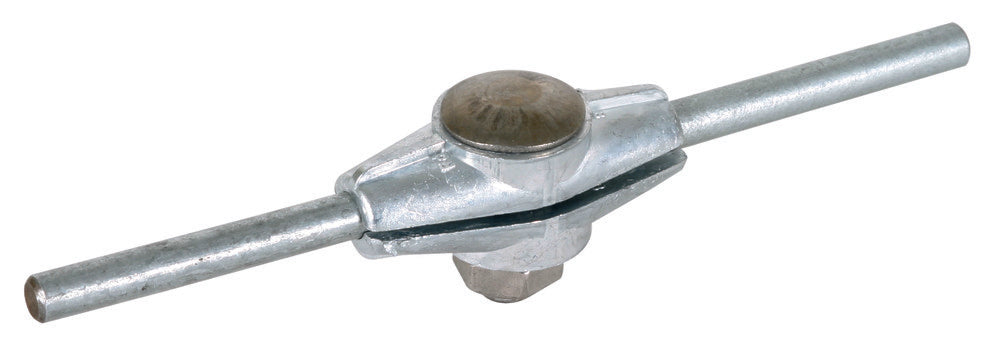

This is a Dehn connector for lightning protection, cast in pressure zinc. The type of connection is a clamp connection, with a diameter for the round conductor 1 and 2 both measuring at 8mm. It does not have any surface protection, therefore it is untreated. The connector utilizes a clamp screw for attachment, adhering to EN 62561-1 standards. It is designed for connecting round conductors in the longitudinal arrangement. Additionally, it has a lightning current carrying capacity of 100kA for a 10/350 µs impulse.
- Regular price
- £7.42
Description
This is a Dehn connector for lightning protection, cast in pressure zinc. The type of connection is a clamp connection, with a diameter for the round conductor 1 and 2 both measuring at 8mm. It does not have any surface protection, therefore it is untreated. The connector utilizes a clamp screw for attachment, adhering to EN 62561-1 standards. It is designed for connecting round conductors in the longitudinal arrangement. Additionally, it has a lightning current carrying capacity of 100kA for a 10/350 µs impulse.
