Dehn Fixed Ball Point Angled 20mm With Threaded Pin M12x35m - 706235

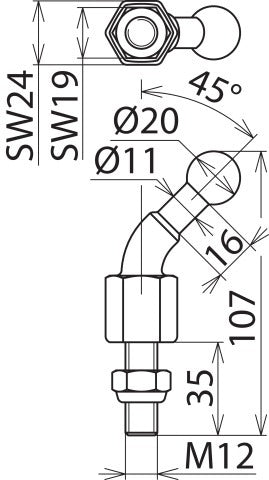

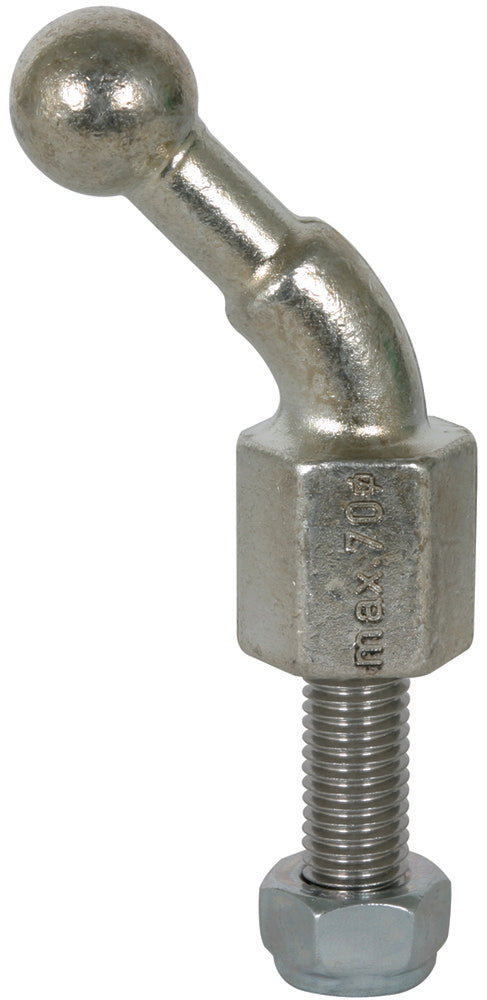

This is a 45° angled fixed ball point with a threaded pin and self-locking nut that serves as a line and earth connection point, conforming to EN/IEC 61230 (DIN VDE 0683-100) standards. It is used in the conductor and earth-termination system and offers high mechanical strength via its female thread, which is not cut. With a maximum short circuit current of 19.5kA and a design suitable for fixing cable lugs or connecting busbars according to DIN 43673-1, it has a connection point diameter of 20mm, a maximum copper wire cross-section of 70mm², and can be fastened with a threaded bolt.
- Regular price
- £37.67
Description
This is a 45° angled fixed ball point with a threaded pin and self-locking nut that serves as a line and earth connection point, conforming to EN/IEC 61230 (DIN VDE 0683-100) standards. It is used in the conductor and earth-termination system and offers high mechanical strength via its female thread, which is not cut. With a maximum short circuit current of 19.5kA and a design suitable for fixing cable lugs or connecting busbars according to DIN 43673-1, it has a connection point diameter of 20mm, a maximum copper wire cross-section of 70mm², and can be fastened with a threaded bolt.
