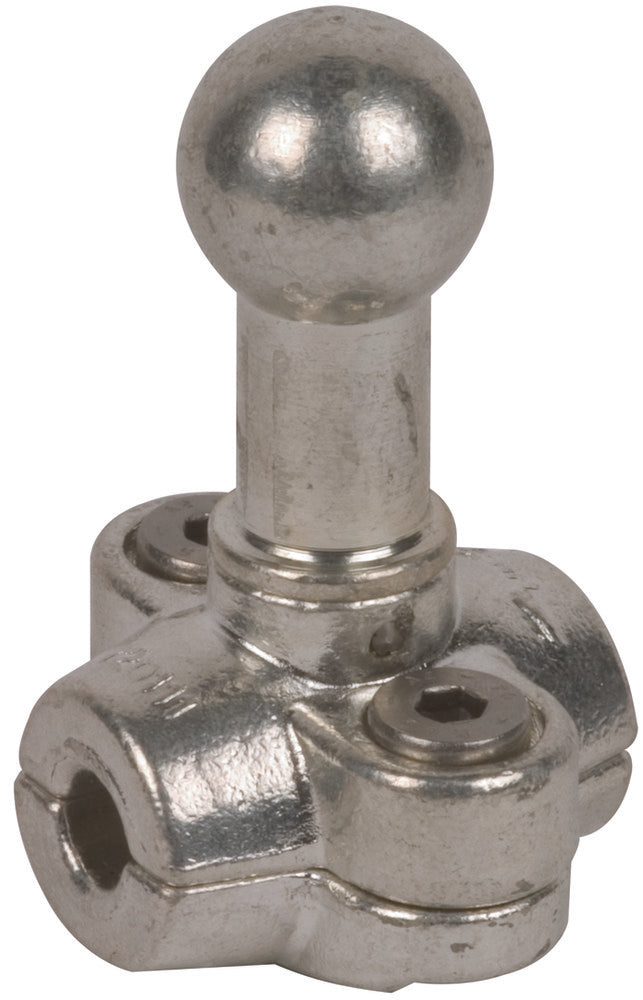

Dehn Fixed Ball Point Clamp For Round Conductors D25mm 16mm - 725016

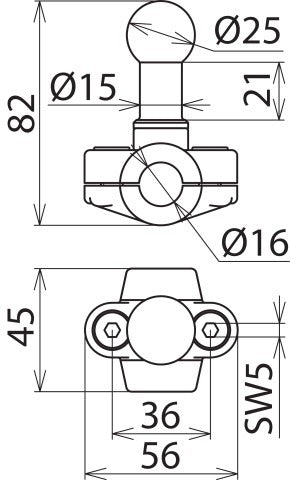

This is a fixed ball point with a diameter of 20 mm, designed for use with round copper conductors. It acts as both a phase-side and earth-side point of connection, in accordance with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and the earthing system. It features stainless steel fixing screws and is suitable for round conductors, exhibiting a maximum short-circuit current of 26.5kA. It has a straightforward structure with a maximum wire cross-section for copper of 95mm². It accommodates an earthing and short-circuit fixed point of 25mm, ensuring a secure connection.
- Regular price
- £125.09
Description
This is a fixed ball point with a diameter of 20 mm, designed for use with round copper conductors. It acts as both a phase-side and earth-side point of connection, in accordance with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and the earthing system. It features stainless steel fixing screws and is suitable for round conductors, exhibiting a maximum short-circuit current of 26.5kA. It has a straightforward structure with a maximum wire cross-section for copper of 95mm². It accommodates an earthing and short-circuit fixed point of 25mm, ensuring a secure connection.
