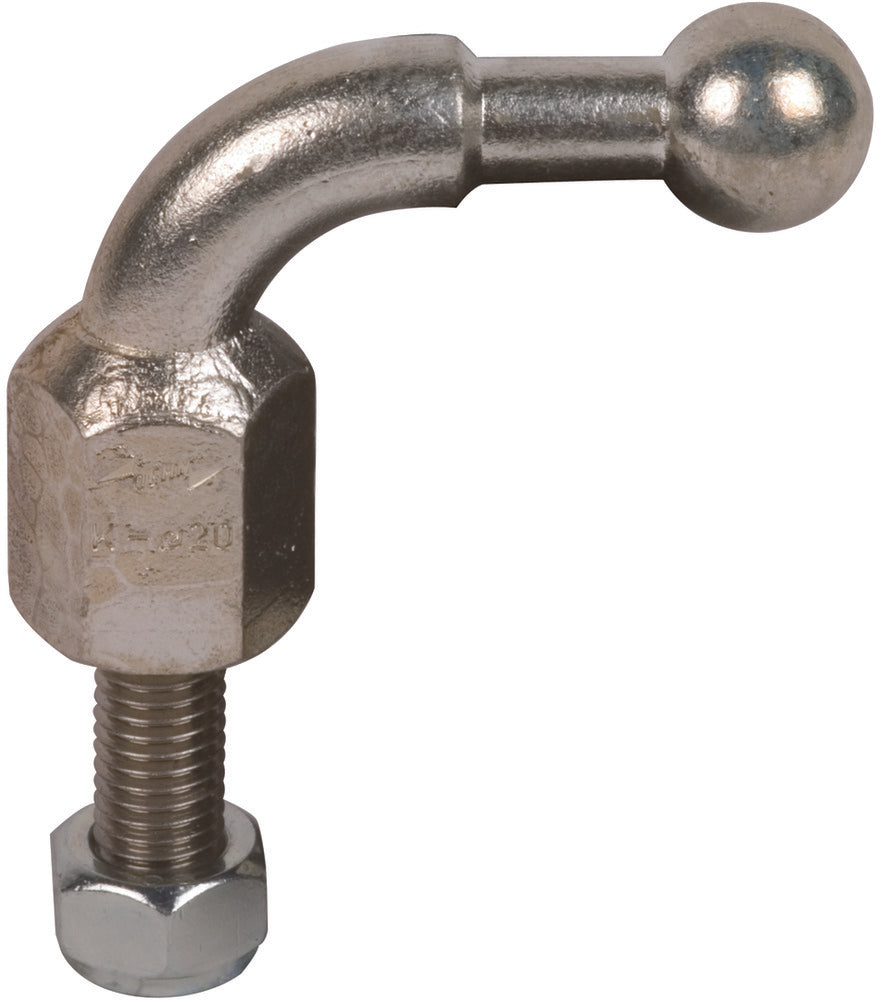

Dehn Fixed Ball Point D 20mm Angled with Threaded Pin M12x35m - 707235

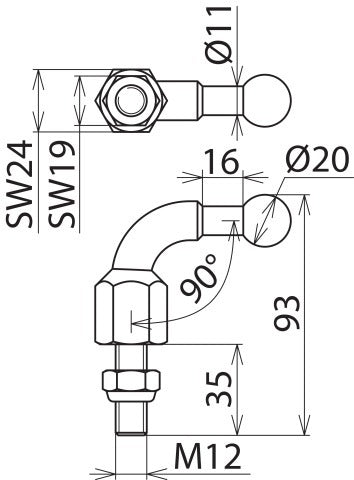

This is a 90° angled fixed ball point with a threaded pin and self-locking nut, designed to serve as both a line and earth connection point. It complies with EN/IEC 61230 (DIN VDE 0683-100) and is installed at the conductor and earth-termination system. This fixture boasts high mechanical strength due to its female thread, which hasn't been cut. It is suitable for fixing cable lugs or connecting busbars in line with DIN 43673-1. It can sustain a maximum short-circuit current of 19.5kA. The connection point has a 20mm diameter and allows for a maximum copper wire cross section of 70mm².
- Regular price
- £58.07
Description
This is a 90° angled fixed ball point with a threaded pin and self-locking nut, designed to serve as both a line and earth connection point. It complies with EN/IEC 61230 (DIN VDE 0683-100) and is installed at the conductor and earth-termination system. This fixture boasts high mechanical strength due to its female thread, which hasn't been cut. It is suitable for fixing cable lugs or connecting busbars in line with DIN 43673-1. It can sustain a maximum short-circuit current of 19.5kA. The connection point has a 20mm diameter and allows for a maximum copper wire cross section of 70mm².
