Dehn Fixed Ball Point D 25mm Clamp Type A For Round Conductors - 725018

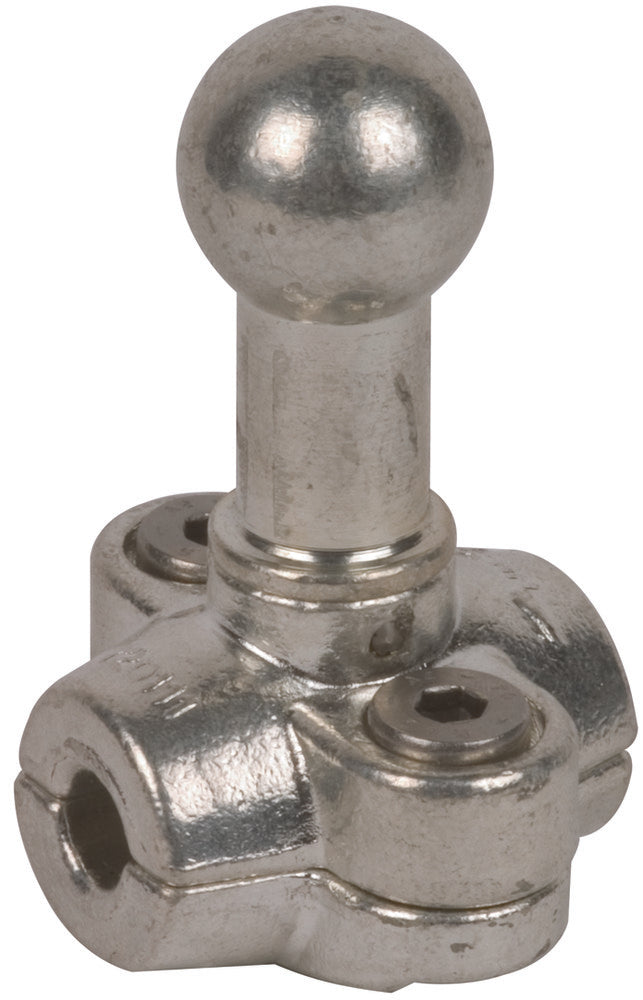

This is a fixed ball point with a diameter of 20mm, designed for round copper conductors and suitable for use as both phase-side and earth-side connection points in accordance with EN/IEC 61230 (DIN VDE 0683-100) on both the conductor and the earthing system. It has a maximum short-circuit current of 26.5kA and a straight design. The device allows the connecting of the earthing point and a ball point with a diameter of 25mm. It can accommodate a maximum wire cross-section of copper measuring 95mm². The fixing screws are made of stainless steel for durability.
- Regular price
- £126.72
Description
This is a fixed ball point with a diameter of 20mm, designed for round copper conductors and suitable for use as both phase-side and earth-side connection points in accordance with EN/IEC 61230 (DIN VDE 0683-100) on both the conductor and the earthing system. It has a maximum short-circuit current of 26.5kA and a straight design. The device allows the connecting of the earthing point and a ball point with a diameter of 25mm. It can accommodate a maximum wire cross-section of copper measuring 95mm². The fixing screws are made of stainless steel for durability.
