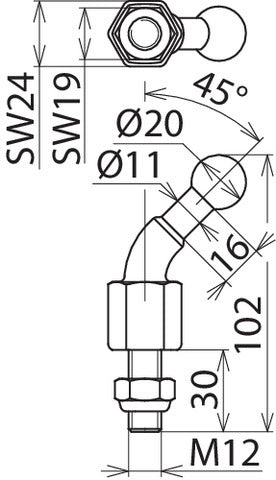

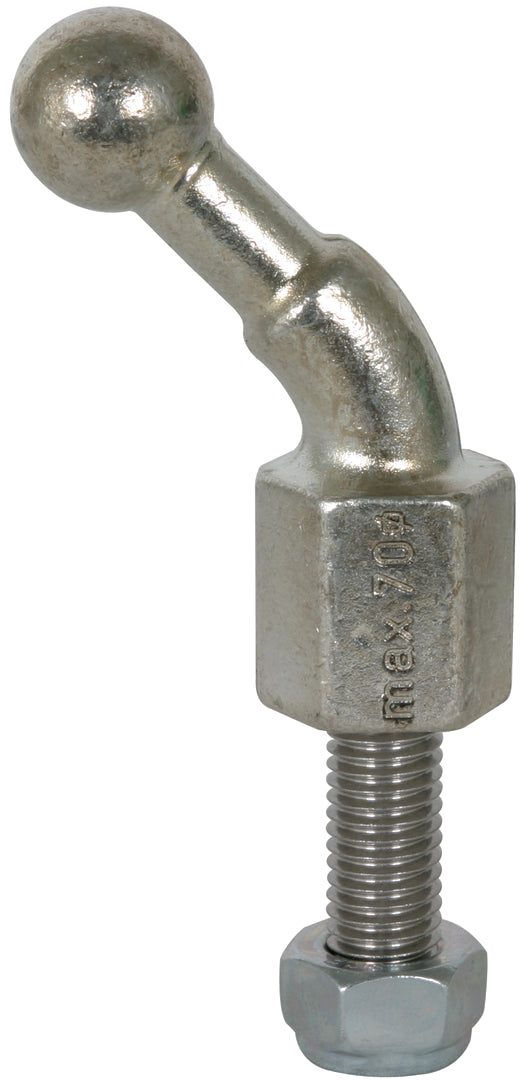

Dehn Fixed Ball Point D20mm Angled 45 With Threaded Bolt M12x30mm - 706239
This is a 45° angled fixed ball point with a threaded pin and a self-locking nut that serves as a line and earth connection point. This product adheres to the standards of EN/IEC 61230 (DIN VDE 0683-100) for both conductor and earth-termination systems. It stands out for its high mechanical strength owing to the female thread, which is not cut. This design is particularly suitable for fixing cable lugs or connecting busbars in line with DIN 43673-1. With a maximum short-circuit current of 19.5kA, it accommodates a maximum wire cross-section of copper up to 70mm² and a ball point with a diameter of 20mm.
- Regular price
- £37.93
Description
This is a 45° angled fixed ball point with a threaded pin and a self-locking nut that serves as a line and earth connection point. This product adheres to the standards of EN/IEC 61230 (DIN VDE 0683-100) for both conductor and earth-termination systems. It stands out for its high mechanical strength owing to the female thread, which is not cut. This design is particularly suitable for fixing cable lugs or connecting busbars in line with DIN 43673-1. With a maximum short-circuit current of 19.5kA, it accommodates a maximum wire cross-section of copper up to 70mm² and a ball point with a diameter of 20mm.
