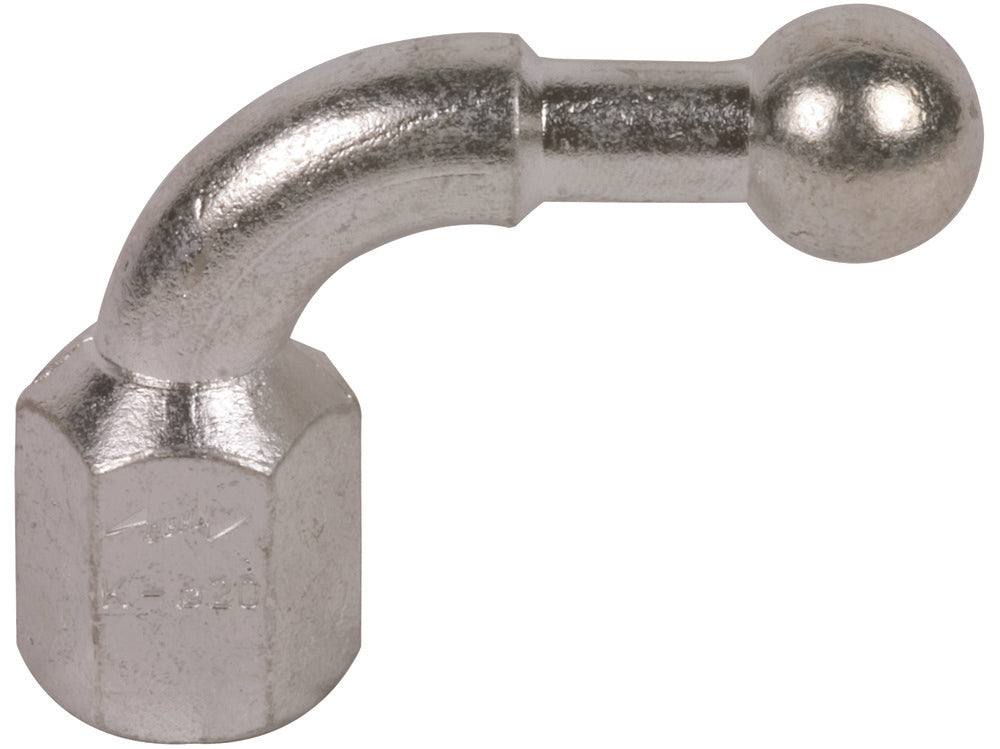

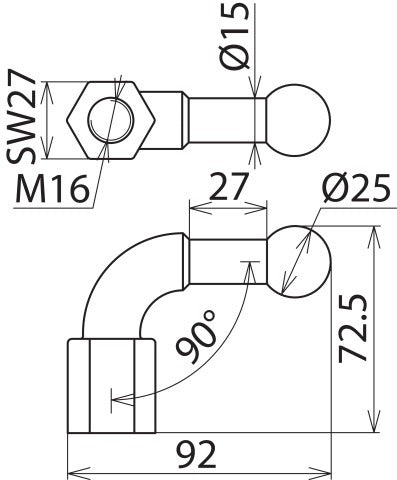

Dehn Fixed Ball Point D25mm Angled 90 Degrees With M16 Female Thread - 757600
This is a 90° angled fixed ball point with a female thread, utilized as a line and earth connection point according to the EN/IEC 61230 or DIN VDE 0683-100 standard. It has high mechanical strength due to its female thread, which is not cut. This ball point is suitable for fixing cable lugs or connecting busbars in line with the DIN 43673-1 standard. The maximum short-circuit current it can handle is 26.5kA, and its connection to the grounding system and the core ball point is 25mm. It supports a maximum copper wire cross-section of up to 95mm², and its ball point diameter measures 25mm.
- Regular price
- £101.48
Description
This is a 90° angled fixed ball point with a female thread, utilized as a line and earth connection point according to the EN/IEC 61230 or DIN VDE 0683-100 standard. It has high mechanical strength due to its female thread, which is not cut. This ball point is suitable for fixing cable lugs or connecting busbars in line with the DIN 43673-1 standard. The maximum short-circuit current it can handle is 26.5kA, and its connection to the grounding system and the core ball point is 25mm. It supports a maximum copper wire cross-section of up to 95mm², and its ball point diameter measures 25mm.
