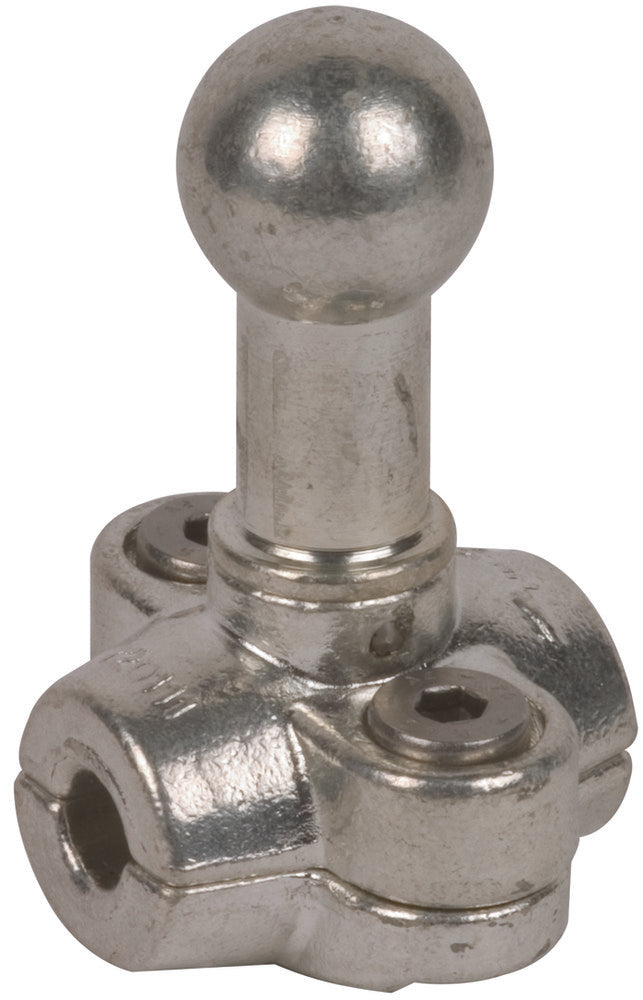

Dehn Fixed Ball Point D25mm - Clamp Type A For Round Conductors 10mm - 725010
This item is a fixed ball point with a diameter of 20mm, designed for round copper conductors. It is suitable as a phase-side and earth-side point of connection, in line with EN/IEC 61230 (DIN VDE 0683-100), for both the conductor and the earthing system. The ball point's secure fastening is ensured by stainless steel fixing screws. Withstanding a maximum short circuit current of 26.5kA, it is designed for straight construction, can accommodate an earth and short-circuit ball point of 25mm and a max. copper wire cross-section of 95mm². The ball point's own diameter is 25mm.
- Regular price
- £125.68
Description
This item is a fixed ball point with a diameter of 20mm, designed for round copper conductors. It is suitable as a phase-side and earth-side point of connection, in line with EN/IEC 61230 (DIN VDE 0683-100), for both the conductor and the earthing system. The ball point's secure fastening is ensured by stainless steel fixing screws. Withstanding a maximum short circuit current of 26.5kA, it is designed for straight construction, can accommodate an earth and short-circuit ball point of 25mm and a max. copper wire cross-section of 95mm². The ball point's own diameter is 25mm.
