DEHN Fixed Earthing Terminal M10 M12 Stainless Steel Accessories - 478012

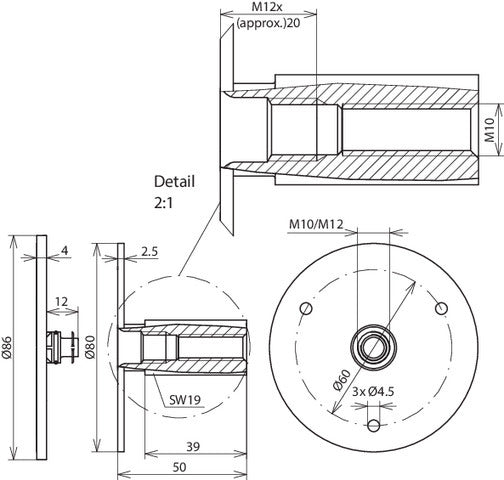

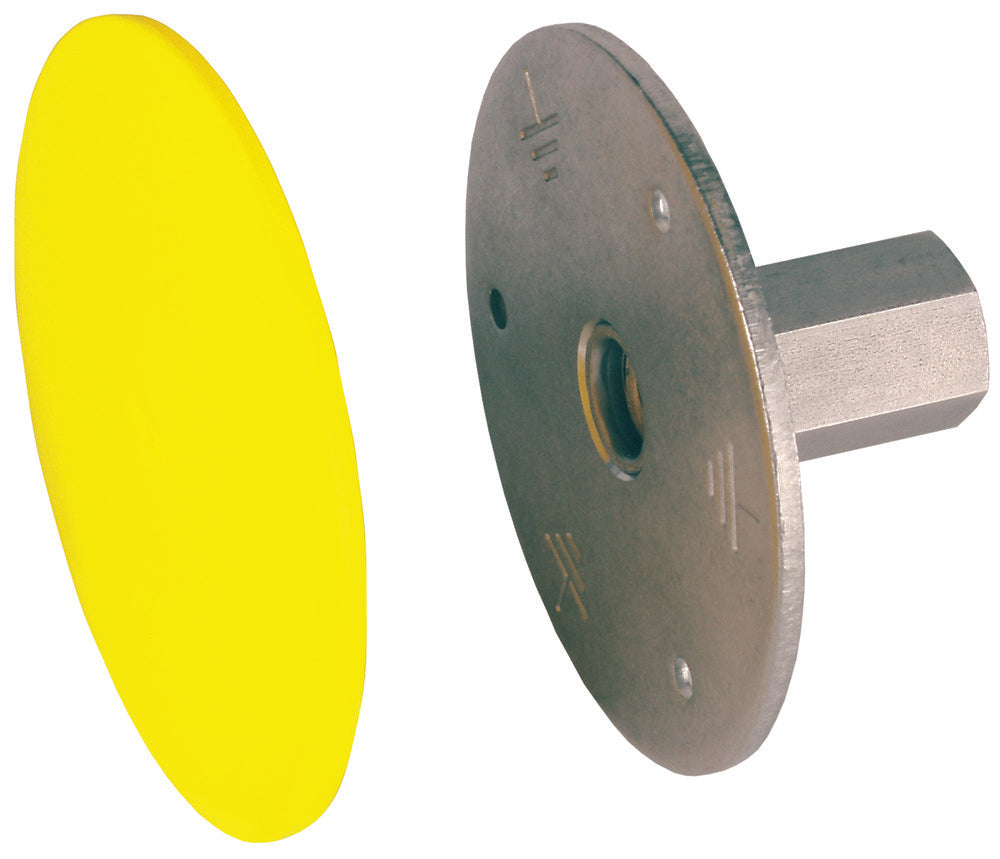

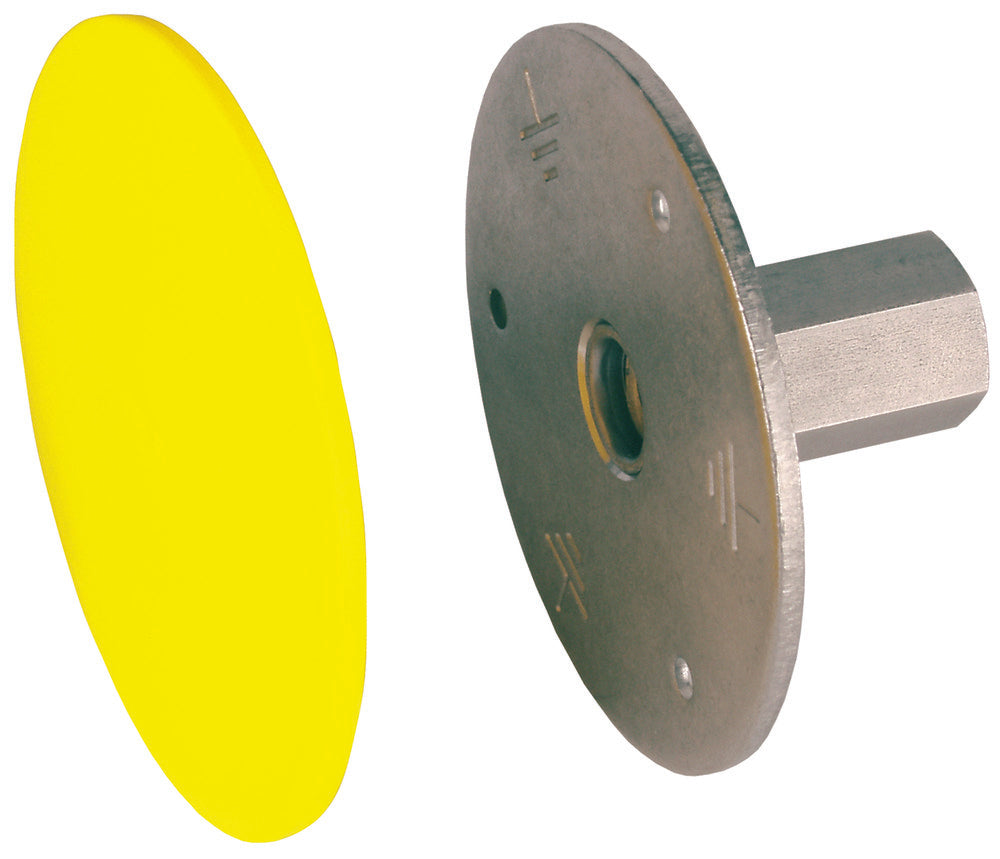

This is a fixed earthing terminal that complies with EN 62561-1. It serves as a corrosion-free connection for the down conductor, connecting to either the building reinforcement or the earth-termination system. It's primarily used for protective equipotential bonding and/or functional equipotential bonding, and is suitable for installation in the formwork. This is the Type M model, which comes without a connecting shaft, and it features an M10/12 connection thread. The terminal is made out of RVS 316 (V4A) stainless steel, with a length of 50mm, a bolt size of 10, and a connection plate diameter of 80mm.
- Regular price
- £23.90
Description
This is a fixed earthing terminal that complies with EN 62561-1. It serves as a corrosion-free connection for the down conductor, connecting to either the building reinforcement or the earth-termination system. It's primarily used for protective equipotential bonding and/or functional equipotential bonding, and is suitable for installation in the formwork. This is the Type M model, which comes without a connecting shaft, and it features an M10/12 connection thread. The terminal is made out of RVS 316 (V4A) stainless steel, with a length of 50mm, a bolt size of 10, and a connection plate diameter of 80mm.
