DEHN Fixed Earthing Terminal M10 M12 With Connection Axis - 478011

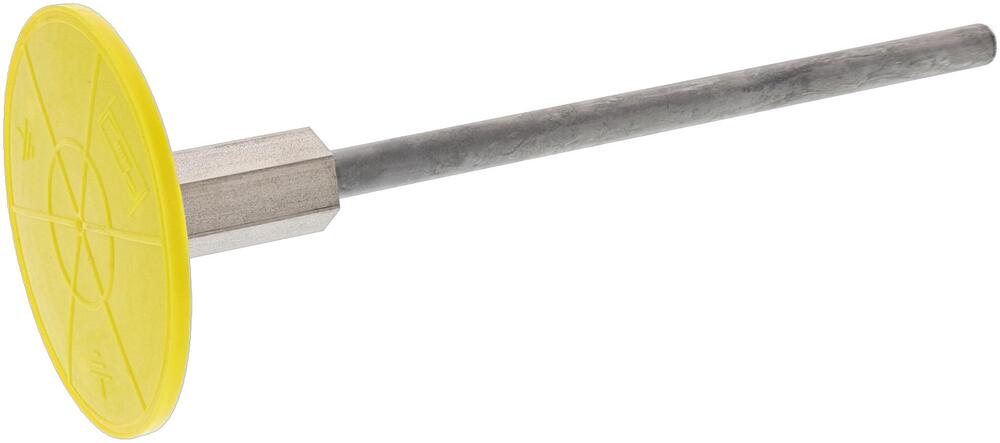

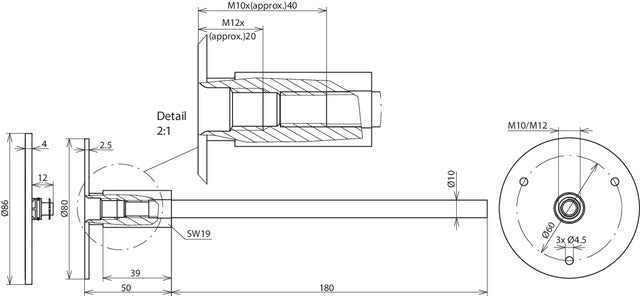

This is a fixed earthing terminal that conforms to the EN 62561-1 standard. It serves as a corrosion-free connection for the down conductor, and can be used for both protective and functional equipotential bonding in formwork. The terminal is fashioned from 316 stainless steel and measures 50mm in length. It features a type M connecting shaft that is 10mm in size with an M10/12 connection thread. Other specifications include a connection plate that measures 80mm in diameter and a steel connection lip. This terminal can be effectively utilized for connections including the building reinforcement or the earth-termination system.
- Regular price
- £29.16
Description
This is a fixed earthing terminal that conforms to the EN 62561-1 standard. It serves as a corrosion-free connection for the down conductor, and can be used for both protective and functional equipotential bonding in formwork. The terminal is fashioned from 316 stainless steel and measures 50mm in length. It features a type M connecting shaft that is 10mm in size with an M10/12 connection thread. Other specifications include a connection plate that measures 80mm in diameter and a steel connection lip. This terminal can be effectively utilized for connections including the building reinforcement or the earth-termination system.
