DEHN Fixed Earthing Terminal M16 StSt With Connection Cable - 478027

DEHN Fixed Earthing Terminal M16 StSt With Connection Cable - 478027
DEHN Fixed Earthing Terminal M16 StSt With Connection Cable - 478027
DEHN Fixed Earthing Terminal M16 StSt With Connection Cable - 478027
DEHN Fixed Earthing Terminal M16 StSt With Connection Cable - 478027
Image may vary slightly
See specifications for accurate information.
Reference: E3NH5
Brand: DEHN
Mfr. Part: 478027

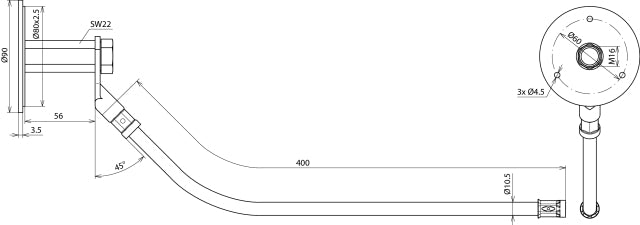

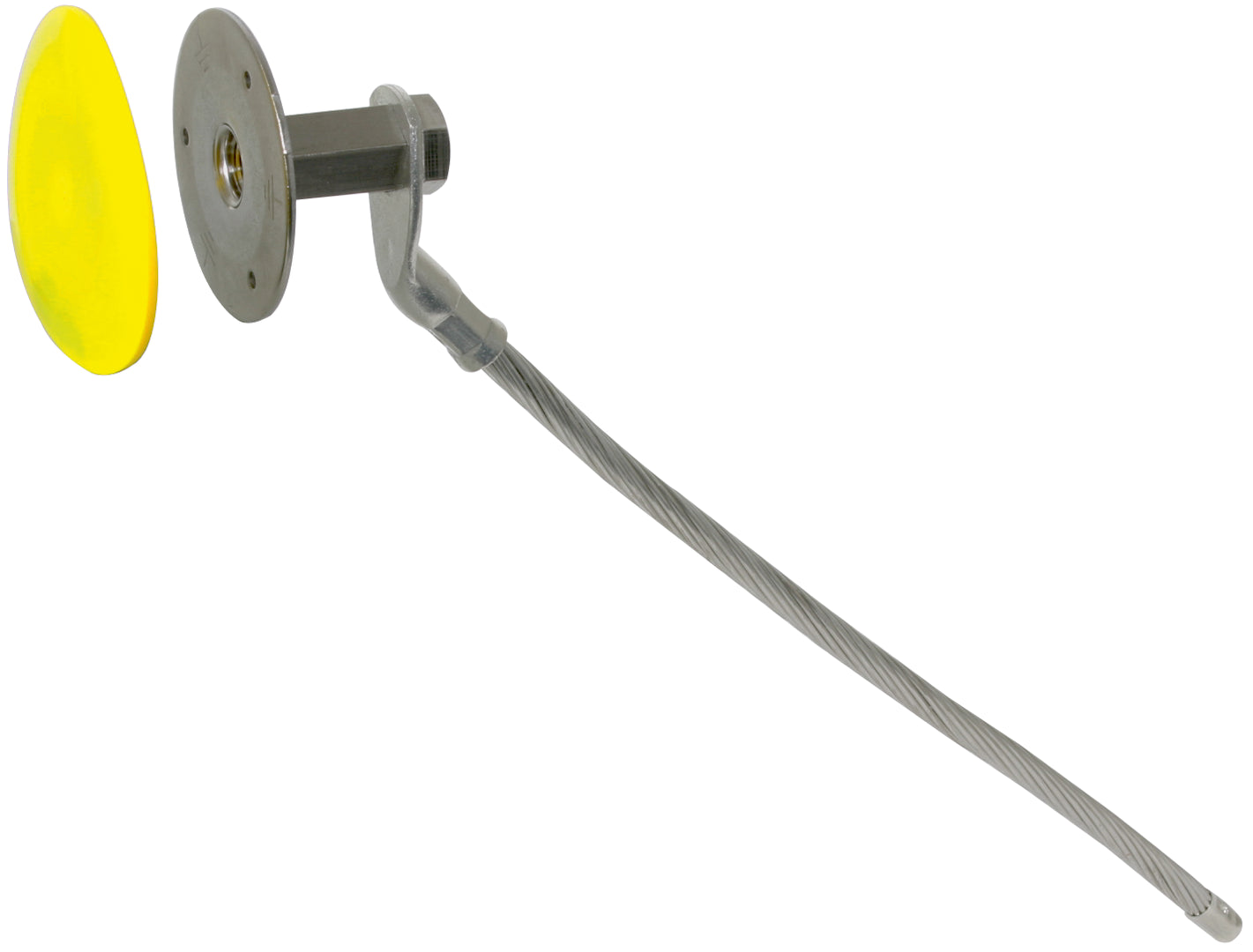

This is a fixed earthing terminal made from RVS 316 (V4A) stainless steel, with a length of 56mm and a bolt size of 16 (M16). It is designed for higher current loads of 50 Hz, such as connecting the ring equipotential bonding system with the earth-termination systems of power installations with a nominal AC voltage over 1 kV (for example, transformer earthing). This terminal features a 400mm connecting axle, an 80mm diameter connecting plate, and comes with a Cu/galSn connecting cable for formwork installation. The product is tested according to EN 62561-1 standards.

View all
Note: product cannot be returned
£72.63
excl VAT
In stock Ships in 11d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 40 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 13 - 15 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Downloads

Description

This is a fixed earthing terminal made from RVS 316 (V4A) stainless steel, with a length of 56mm and a bolt size of 16 (M16). It is designed for higher current loads of 50 Hz, such as connecting the ring equipotential bonding system with the earth-termination systems of power installations with a nominal AC voltage over 1 kV (for example, transformer earthing). This terminal features a 400mm connecting axle, an 80mm diameter connecting plate, and comes with a Cu/galSn connecting cable for formwork installation. The product is tested according to EN 62561-1 standards.

Downloads

Product datasheet (EN)
pdf
Download
