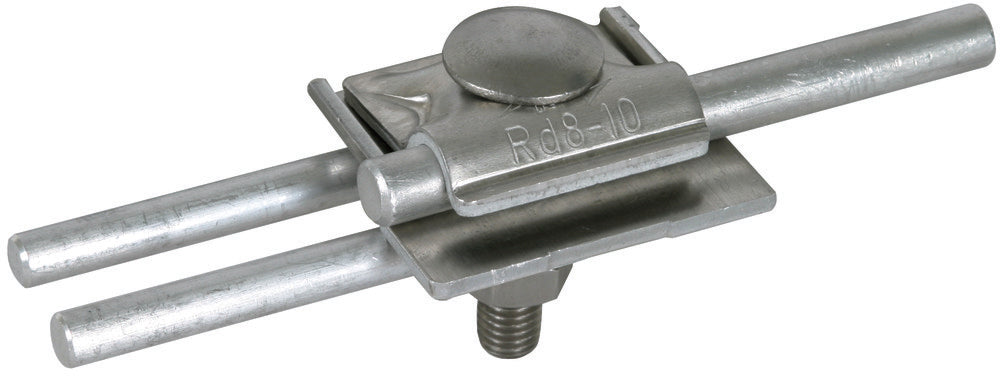

Dehn FS Clamp Air-Term Rod Clamp 10mm Al 2-fold Connection - 380110 [2 pieces]
![Dehn FS Clamp Air-Term Rod Clamp 10mm Al 2-fold Connection - 380110 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3p44-00.4738c993_9cf6a0b5-9f25-4a58-9bad-aa51f58775f1.jpg?v=1730382844)
![Dehn FS Clamp Air-Term Rod Clamp 10mm Al 2-fold Connection - 380110 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3p44-01.21ab35f2_0041f75b-3989-48ad-934c-1651602056ea.jpg?v=1730382844)
![Dehn FS Clamp Air-Term Rod Clamp 10mm Al 2-fold Connection - 380110 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3p44-00.4738c993_9cf6a0b5-9f25-4a58-9bad-aa51f58775f1.jpg?height=232&v=1730382844&width=232)
![Dehn FS Clamp Air-Term Rod Clamp 10mm Al 2-fold Connection - 380110 [2 pieces]](http://tameson.co.uk/cdn/shop/files/e3p44-01.21ab35f2_0041f75b-3989-48ad-934c-1651602056ea.jpg?height=232&v=1730382844&width=232)
The item is a Dehn connector, designed for installation in lightning protection systems. Made from untreated aluminium, it features a parallel plug-type connection. The connector is intended to accommodate two round conductors, each with a diameter of 8 - 10mm. The hardware includes unique mounting screws and offers no surface treatment. Modelled according to standard EN 62561-1, the FS clamp connects air-termination tips of 10mm diameter to two round conductors, and is equipped with an anti-rotation plate for longitudinal or cross connection.
Contains 2 pieces
- Regular price
- £10.01
Description
The item is a Dehn connector, designed for installation in lightning protection systems. Made from untreated aluminium, it features a parallel plug-type connection. The connector is intended to accommodate two round conductors, each with a diameter of 8 - 10mm. The hardware includes unique mounting screws and offers no surface treatment. Modelled according to standard EN 62561-1, the FS clamp connects air-termination tips of 10mm diameter to two round conductors, and is equipped with an anti-rotation plate for longitudinal or cross connection.
