Dehn HVI Conductive Rod 20mm With Support Tube - 819373

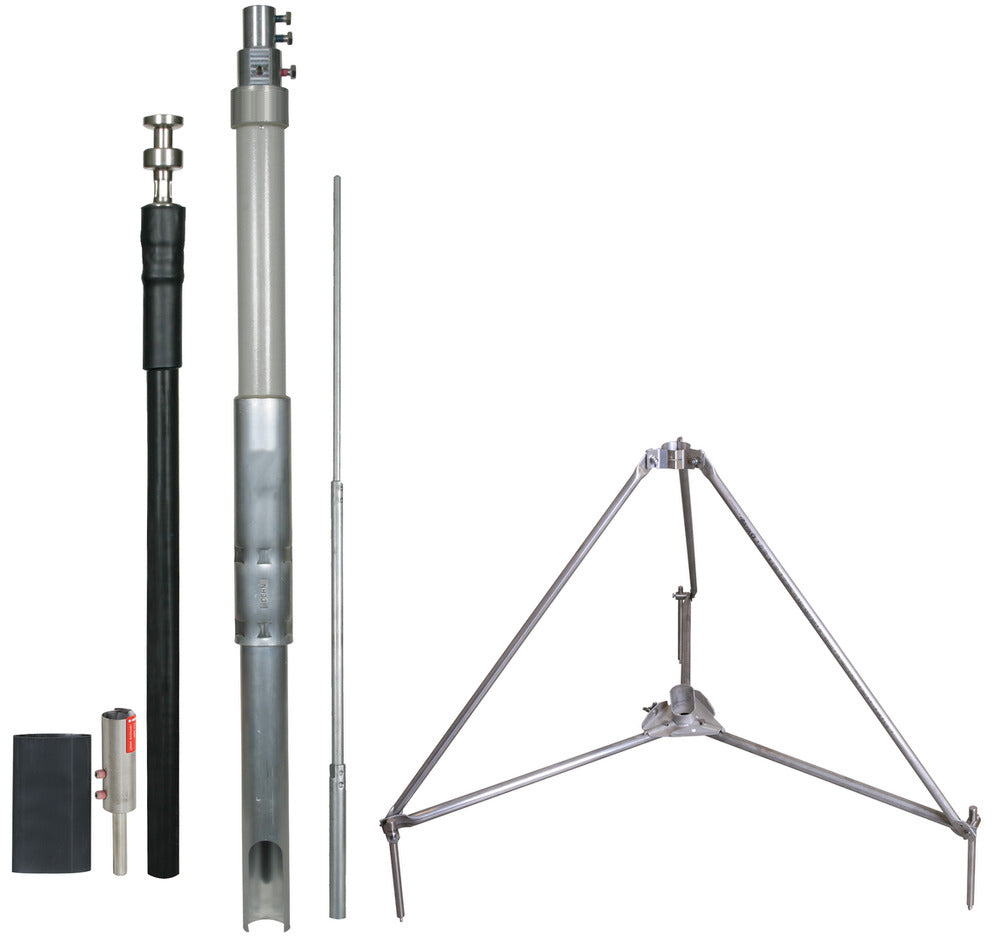

The HVI Conductor is a high-voltage-resistant, insulated down conductor designed for maintaining separation distance from electrically conductive parts, as stipulated by DIN EN 62305-3. It helps prevent dangerous flashovers between parts of external lightning protection and internal conductive elements such as electrical installations or pipelines. The HVI Conductor (black) has a unique outer sheath to prevent creeping discharge, a 19mm² cross-section made of copper, and is encased in XLPE. Other features include an internal sealing end, an EB spring element in the supporting tube (length 3200mm), an air-termination rod (D22/16/10mm, length 2500mm), an earth connection element, a tripod, and seven wires.
- Regular price
- £2,701.61
Description
The HVI Conductor is a high-voltage-resistant, insulated down conductor designed for maintaining separation distance from electrically conductive parts, as stipulated by DIN EN 62305-3. It helps prevent dangerous flashovers between parts of external lightning protection and internal conductive elements such as electrical installations or pipelines. The HVI Conductor (black) has a unique outer sheath to prevent creeping discharge, a 19mm² cross-section made of copper, and is encased in XLPE. Other features include an internal sealing end, an EB spring element in the supporting tube (length 3200mm), an air-termination rod (D22/16/10mm, length 2500mm), an earth connection element, a tripod, and seven wires.
