Dehn HVI Conductor 23mm Cu With Support Tube L 3200mm - 819338

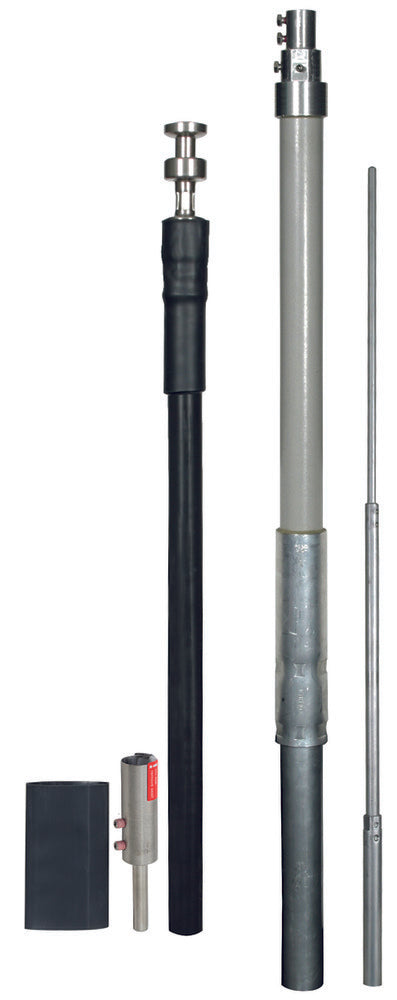

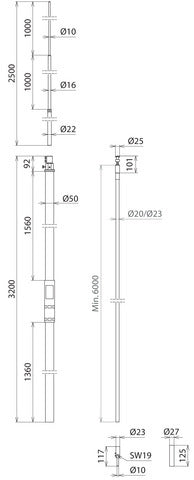

The HVI Conductor is a high-voltage-resistant, insulated down conductor in a supporting tube designed to maintain appropriate separation distance from electrically conductive elements, in accordance with IEC 62305-3. This prevents flashover between external lightning protection and indoor conductive parts. Its special outer sheath allows for discharging of high lightning impulse voltages to a reference potential. This gray conductor comes with a sealing end, an EB spring element in its supporting tube (3200mm long), air-termination rod (dimensions: D22/16/10mm, 2500mm long), a head piece, EB connection element and earth connection element. Separation distance: ≤ 0.75cm in air, ≤ 1.5cm in solid building material.
- Regular price
- £1,356.59
Description
The HVI Conductor is a high-voltage-resistant, insulated down conductor in a supporting tube designed to maintain appropriate separation distance from electrically conductive elements, in accordance with IEC 62305-3. This prevents flashover between external lightning protection and indoor conductive parts. Its special outer sheath allows for discharging of high lightning impulse voltages to a reference potential. This gray conductor comes with a sealing end, an EB spring element in its supporting tube (3200mm long), air-termination rod (dimensions: D22/16/10mm, 2500mm long), a head piece, EB connection element and earth connection element. Separation distance: ≤ 0.75cm in air, ≤ 1.5cm in solid building material.
