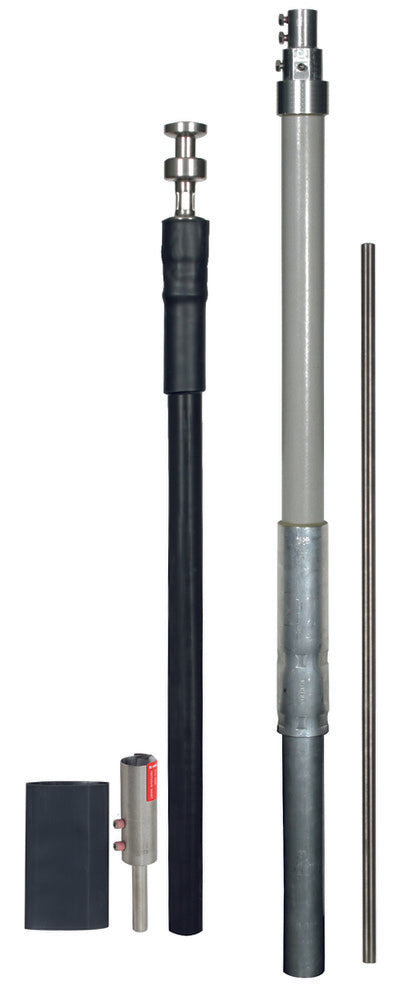

Dehn HVI Conductor With Support Tube And Air Terminal Rod - 819326

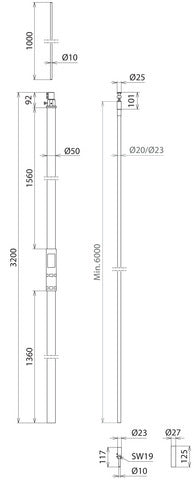

The HVI Conductor (high-voltage-resistant, insulated down conductor) is designed to maintain the separation distance from electrically conductive parts per IEC 62305-3, preventing dangerous flashover between external lightning protection system components and indoor conductive parts. The conductor's special outer sheath allows it to discharge high lightning impulse voltages to a reference potential. Feature specific details include its black color, sealing end, EB spring element within the 3200 mm supporting tube, air-termination tip (10 mm diameter, 1000 mm length), and an earth connection. The conductor is made of copper with a cross-section of 19 mm², is clad in XLPE, and has 7 strands. The nominal conductor diameter is 5 mm, while the external diameter of the insulated conductor is 20 mm. Its equivalent separation distances are less than 075 cm in air, and less than 150 cm in solid material.
- Regular price
- £1,279.72
Description
The HVI Conductor (high-voltage-resistant, insulated down conductor) is designed to maintain the separation distance from electrically conductive parts per IEC 62305-3, preventing dangerous flashover between external lightning protection system components and indoor conductive parts. The conductor's special outer sheath allows it to discharge high lightning impulse voltages to a reference potential. Feature specific details include its black color, sealing end, EB spring element within the 3200 mm supporting tube, air-termination tip (10 mm diameter, 1000 mm length), and an earth connection. The conductor is made of copper with a cross-section of 19 mm², is clad in XLPE, and has 7 strands. The nominal conductor diameter is 5 mm, while the external diameter of the insulated conductor is 20 mm. Its equivalent separation distances are less than 075 cm in air, and less than 150 cm in solid material.
