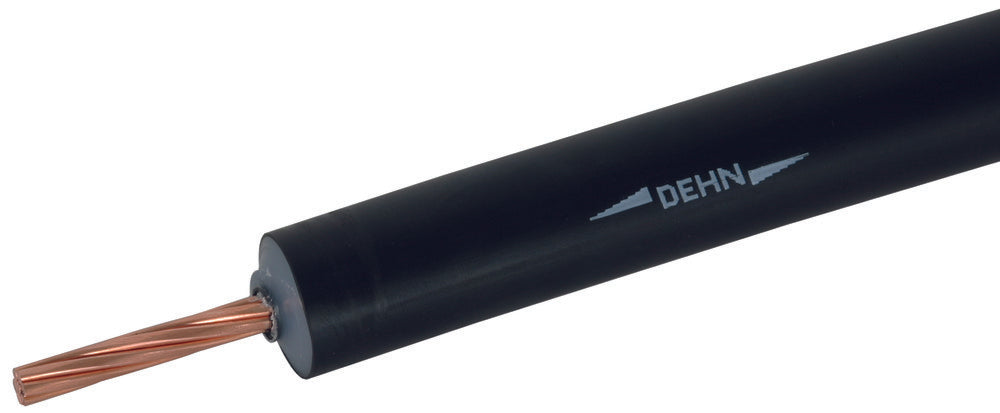

Dehn HVI Long Conductor D 20mm Black Cut To Length 6000mm - 819131
The Dehn HVI Long is a high-voltage-resistant, insulated conductor designed for maintaining the separation distance from conductive parts in accord with IEC 62305-3 to avert hazardous flashover between the external lightning protection system and indoor conductive elements. It is black, with no surface protection, has a copper conductor with a cross-section of 19mm², an XLPE sheath, and a nominal conductor diameter of 5mm comprised of 7 wires. The outer sheath allows high lightning impulse voltages discharge to a reference potential, thereby preventing creeping discharge. It's suitable for on-site assembly with length varies between 6m - 70m.
- Regular price
- £446.82
Description
The Dehn HVI Long is a high-voltage-resistant, insulated conductor designed for maintaining the separation distance from conductive parts in accord with IEC 62305-3 to avert hazardous flashover between the external lightning protection system and indoor conductive elements. It is black, with no surface protection, has a copper conductor with a cross-section of 19mm², an XLPE sheath, and a nominal conductor diameter of 5mm comprised of 7 wires. The outer sheath allows high lightning impulse voltages discharge to a reference potential, thereby preventing creeping discharge. It's suitable for on-site assembly with length varies between 6m - 70m.
